Pedestal Eye Wash Clam Shell Cover

Product Code: S0340-CS1

Model S0340-CS1 is our free standing eye wash with lid and stainless steel bowl. Complete with yellow plastic spray heads, chrome plated brass stay open ball valve and stainless steel clamshell cover. Push handle operated.

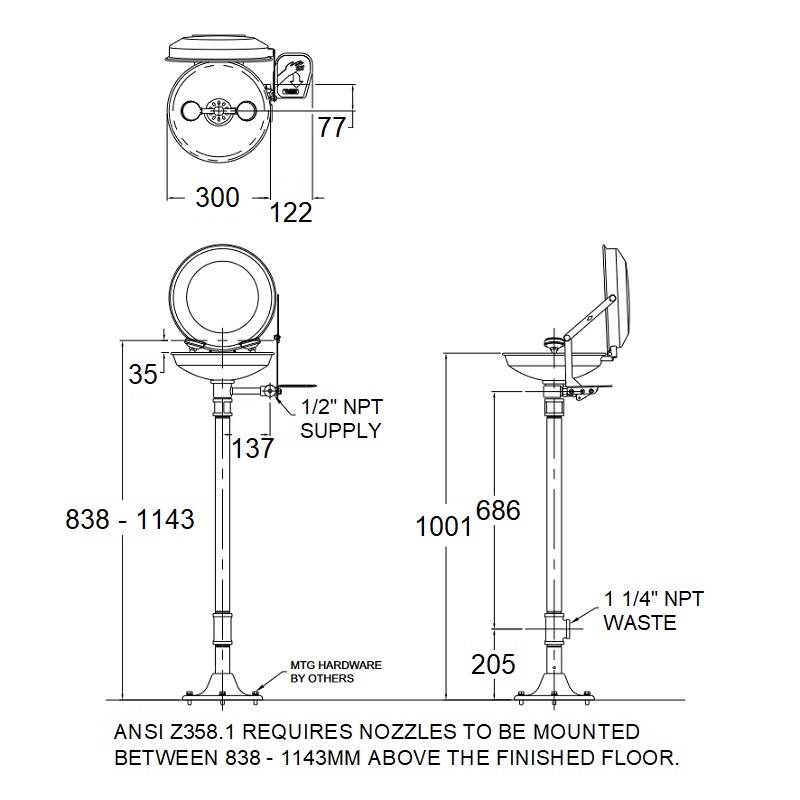

Dimensions

Height (spray head to floor): 1060mm
Height (bowl to floor): 1025mm
Diameter: 300mm

Material and Specifications

Grade 304 stainless steel bowl, 300mm diameter
Grade 304 stainless steel flip open clamshell cover/lid operated by the push handle
ABS yellow plastic eye wash spray heads with flip open dust covers
1/2" chrome plated brass stay open ball valve with stainless steel push handle
Yellow coated galvanised steel pedestal and cast iron floor flange
32mm waste fitting
BSP adaptors are supplied for all NPT pipe connections
Internal filters and flow controls
Flow rate 14 litres per minute
ANSI Z358.1 compliant, includes safety sign and weekly testing card

Delivery

In stock, 1 to 2 working days
