Wall Or Floor Mounted Foot Operated Tap

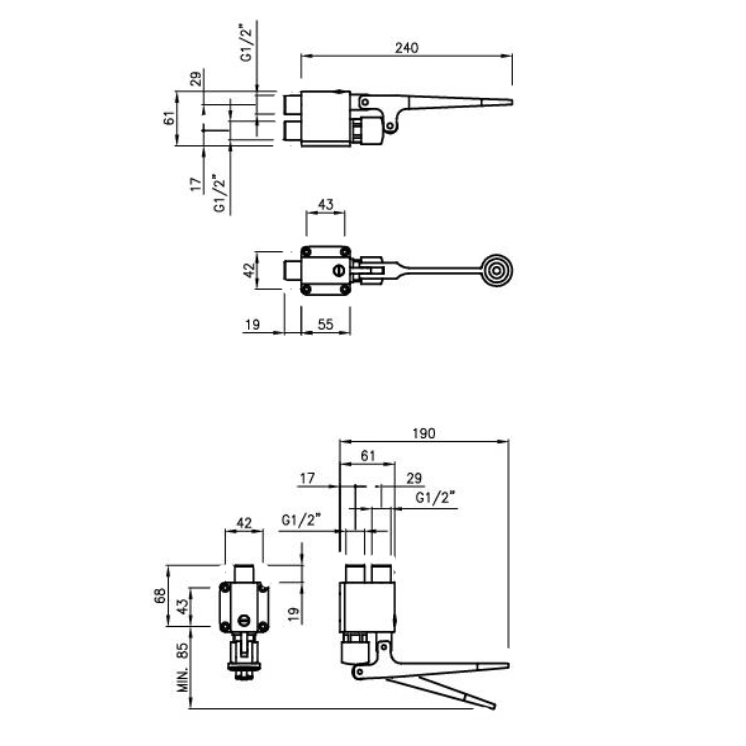

Wall Or Floor Mounted Foot Operated Tap floor and wall mounted pedal tap dimensions

Product Code: TVS9056FOV

Model TVS9056 is our wall mounted foot operated tap. Single lever pedal tap with single water inlet for cold or pre-mixed water supply. The foot valve tap can be easily mounted on the wall or floor by attaching the pedal in the appropriate orientation (full instructions included).

Material and Specifications

Chrome plated brass
Suitable for wall mounted or floor mounted installation
Single pedal operation with on/ off operation
WRAS approved
1/2" water inlet
1/2" water outlet


Maximum Inlet Pressure 6 Bar
Minimum Inlet Pressure 0.5 Bar
Operation Press for on, release for off
Flow Rate 12 litres per minute at 3 bar

Delivery

In stock, 1 to 2 working days
