Foot Operated Floor Or Wall Mounted Foot Pedal Tap

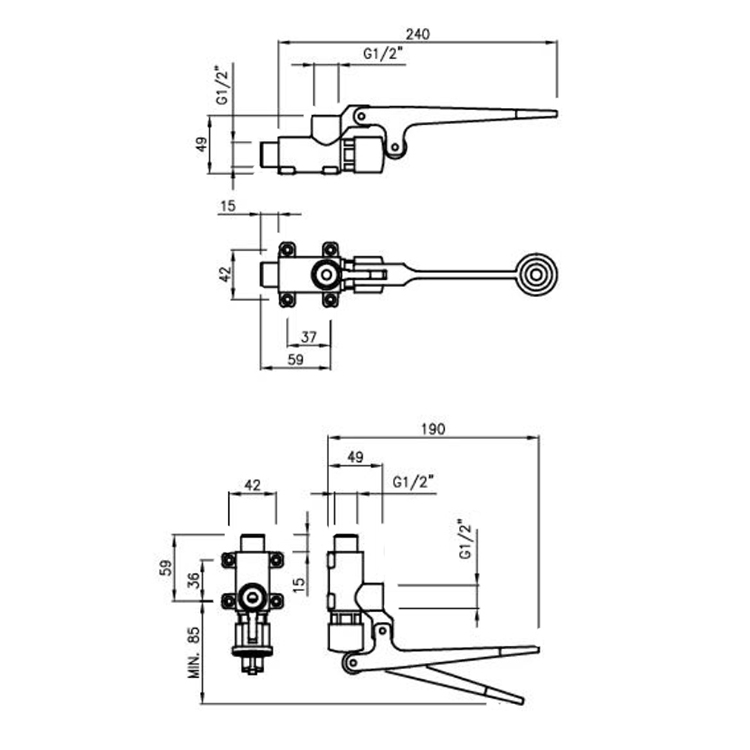

Foot Operated Floor Or Wall Mounted Foot Pedal Tap foot lever pedal tap dimensions

Product Code: TVS9057FOV

Model TVS9057 is our wall mounted foot pedal tap. Single pedal lever tap with single water inlet for use with cold or pre-mixed water supply. The foot pedal tap can be easily set up to be wall or floor mounted by attaching the pedal in the appropriate orientation (full instructions included).

Material and Specifications

Chrome plated brass
Suitable for floor or wall mounted installation
Single pedal operation with on/ off operation
WRAS approved
1/2" water inlet
1/2" water outlet


Maximum Inlet Pressure 6 Bar
Minimum Inlet Pressure 0.5 Bar
Operation Press for on, release for off
Flow Rate 12 litres per minute at 3 bar

Delivery

In stock, 1 to 2 working days
