Bariatric WC Pan For Exposed Cistern

Product Code: WC122-TE

Description

- Model WC122-TE is our top entry bariatric WC pan
- Shown with optional Big John toilet seat
- For use with an exposed cistern
- Designed for disabled and heavy duty use
- Manufactured from 2mm thick, grade 304 stainless steel
- White powder coated finish, internal bowl and trap not powder coated
- Tested to withstand 1000kg
- This pan has a wide footprint for rigidity and stability
- Contoured rim with elliptical shape bowl for use without a seat
- Comes with an effective 3 litre flush
- Fully compliant with latest water flushing regulations

Includes

- Horizontal 100mm diameter outlet
- Side access panels to fix the toilet and connect the trap
- Top entry flush pipe connection for use with an exposed cistern (WC122-PLASCISTERN)

Delivery

- From stock, usually 1 to 2 working days

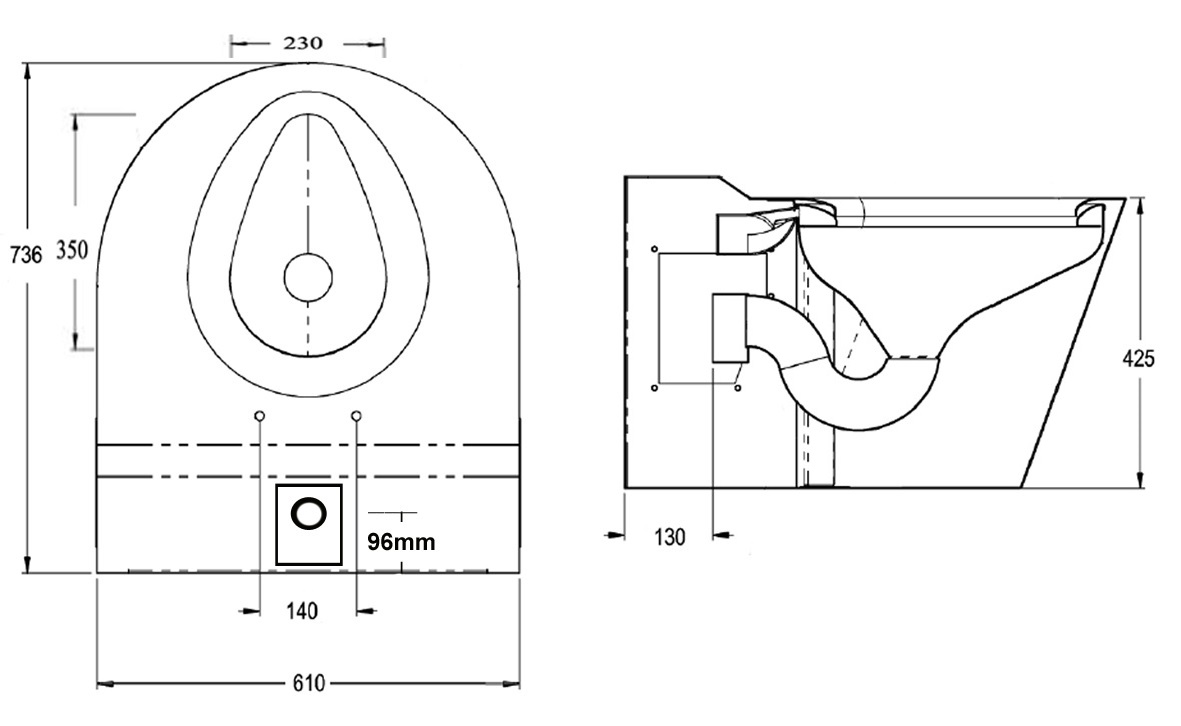

Dimensions

- Height: 425mm
- Front to back: 736mm
- Width: 610mm

Optional Extras

WC122-PLASCISTERN - exposed cistern with lever
WCPSC-BIGJOHN-WHITE - Big John toilet seat & cover
WCPSC-BIGJOHN-NOCVR - Big John toilet seat, open front, no cover
WCC90 - plastic WC pan connector to convert to a vertical outlet
