Product Code: WE314
Description
- Stainless steel inset wash trough with integrated taplanding
- Durable, practical and space saving handwashing solution, ideal for schools, commercial washrooms, factories, workplaces and public buildings
- Inset design for installation into new or existing worktops or vanity units, providing a neat, professional finish
- Manufactured from 1.2mm thick grade 304 stainless steel for strength and durability
- Integrated 84mm rear tap landing allows compatible taps to be fitted directly to the wash trough, eliminating the need to drill the surrounding worktop
- Features a 34mm front edge and bevelled perimeter on all four sides for a neat, professional finish when installed into a worktop or vanity unit
- Designed for inset installation into worktops with a minimum depth of 500mm
- Available in four standard sizes: 1000mm, 1300mm, 1600mm and 2200mm, offering flexible solutions for commercial and industrial handwashing facilities
- Suitable for worktops ranging from 1200mm to 2400mm in length, depending on the selected trough size
- Compact 385mm front to back dimension helps maximise available worktop space
- Features a 150mm deep wash bowl, providing practical capacity for everyday handwashing requirements
- Continuous clip rail fixing system on all four sides ensures secure installation, with fixing rails positioned 20mm from the edges
- Supplied with a centrally positioned 38mm (1.5") flush grated waste outlet (no plug or overflow) for efficient drainage
- Pre-drilled tap holes simplify installation: 2 x 22mm tap holes (1000mm & 1300mm) and 3 x 22mm tap holes (1600mm & 2200mm)
- Tap holes can be enlarged to 35mm before despatch to accommodate compatible mixer taps or sensor operated taps
Delivery
- From stock, usually 1 to 2 working days

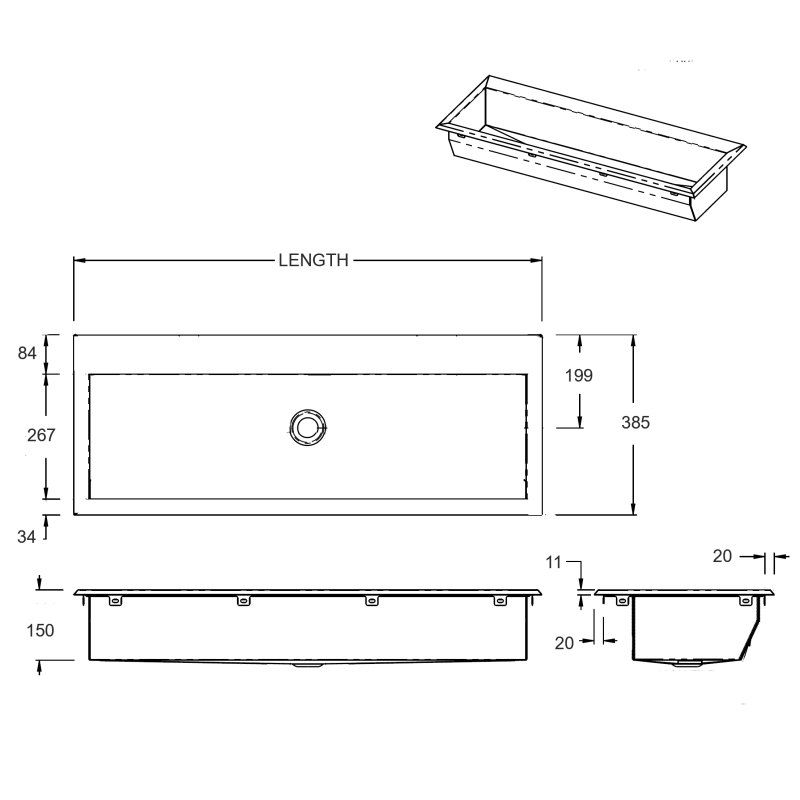

Dimensions
- Lengths: 1000mm | 1300mm | 1600mm | 2200mm
- Projection: 385mm
- Bowl depth: 150mm
- Rear tap ledge: 84mm
- Front edge: 34mm
- Worktop projection: 500mm upwards
| Wash trough length |
Suitable worktop length |
Tap holes |
| 1000mm |
1200mm + |
2 x single 22mm |
| 1300mm |
1500mm + |
2 x single 22mm |
| 1600mm |
1800mm + |
3 x single 22mm |
| 2200mm |
2400mm + |
3 x single 22mm |
Optional Extras
- LARGE-PLASTIC-BOTTLETRAP - 1.5" plastic bottle trap
- TAPS AVAILABLE FROM OUR EXTENSIVE RANGE
