Splashback Style Wash Trough

stainless steel wash trough with splashback for wall mounted taps

Product Code: WE323

Description

- Model WE323 is a stainless steel wall mounted splashback style wash trough designed for taps to be mounted in the rear splashback/upstand
- Available from stock in one standard size: 2400mm
- Tap holes are pre-drilled for single 27mm tap holes per user and can be enlarged on request
- 2400mm with 4 single 27mm tap holes
- Cost effective solution for providing multiple hand washing facilities than traditional basins
- For heavy duty use and hygienic design to keep water within the wash trough

Includes

- Wall fixing brackets and fixing holes
- Centre 38mm (1.5") flush grated waste fitting included (no plug or overflow)
- Pre-drilled tap holes for single 27mm tap hole per user which can be enlarged on request

Delivery

- In stock, 1 to 2 working days

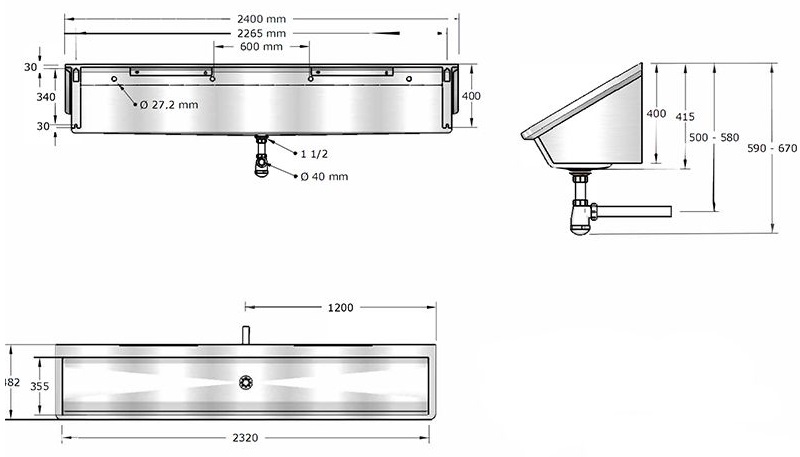

Dimensions

- Lengths available: 2400mm
- Height: 400mm
- Front to back: 482mm

Pre-drilled tap holes

- 2400mm length – four single 27mm tap holes
- Tap holes can be enlarged on request

Where can this be installed?

- This wash trough is ideal for locations where multiple users require hand washing facilities at the same time
- Can be installed inside or outside
- Ideal for nurseries, schools, colleges, factories etc

Optional Extras

LARGE-PLASTIC-BOTTLETRAP – 1.5" plastic bottle trap
LARGE-CHROME-BOTTLETRAP – 1.5" chrome plated bottle trap
TAPS AVAILABLE FROM OUR EXTENSIVE RANGE
