Product Code: BF907
Description
- Model BF907 is our stainless steel free-standing post bottle filler with foot operation
- Hands free design, developed in response to customer demand for a hygienic, space saving bottle filler
- Free-standing pedestal design as standard
- Can be easily converted to floor and wall mounted design by removing the back panel
- Foot valve operation dispenses water when pressed and shuts off instantly when released to prevent water waste
- Manufactured from grade 304 stainless steel
- Rounded corners for safety
- Floor and wall mounting points
- Supplied fully assembled for easy installation
- Lockable side door for access to fixing points and plumbing connections
- Removable rear panel with large opening to facilitate water supply pipes and waste connections if fitted up against a wall
- To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.
Includes
- WRAS approved foot valve
- WRAS approved water path fittings
- 32mm flush grated waste fitting, flexible waste pipe, laminar flow outlet and internal pipework
Delivery
- Normally in stock, 1 to 2 working days

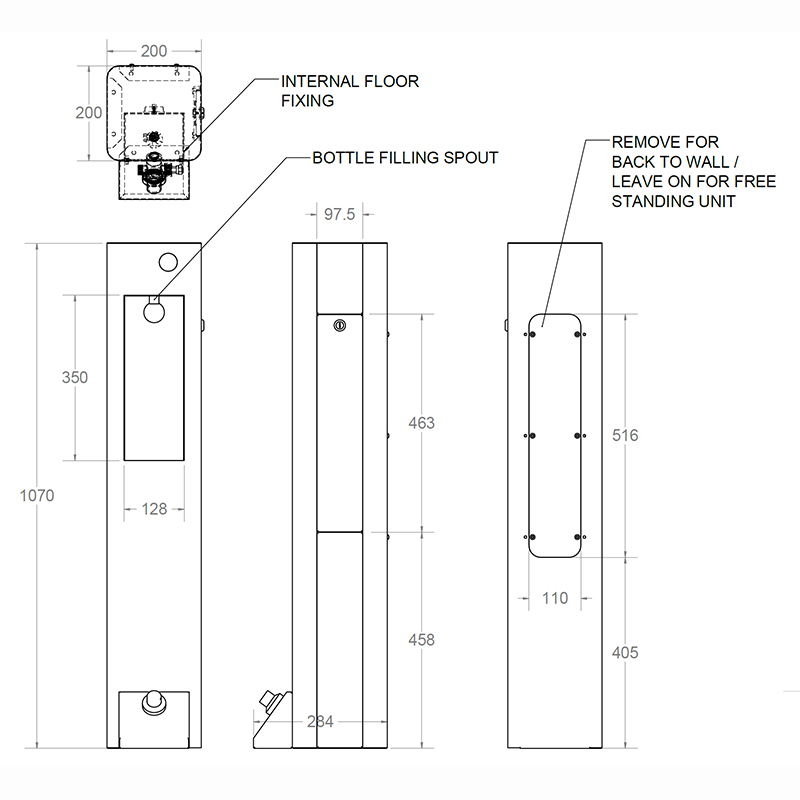

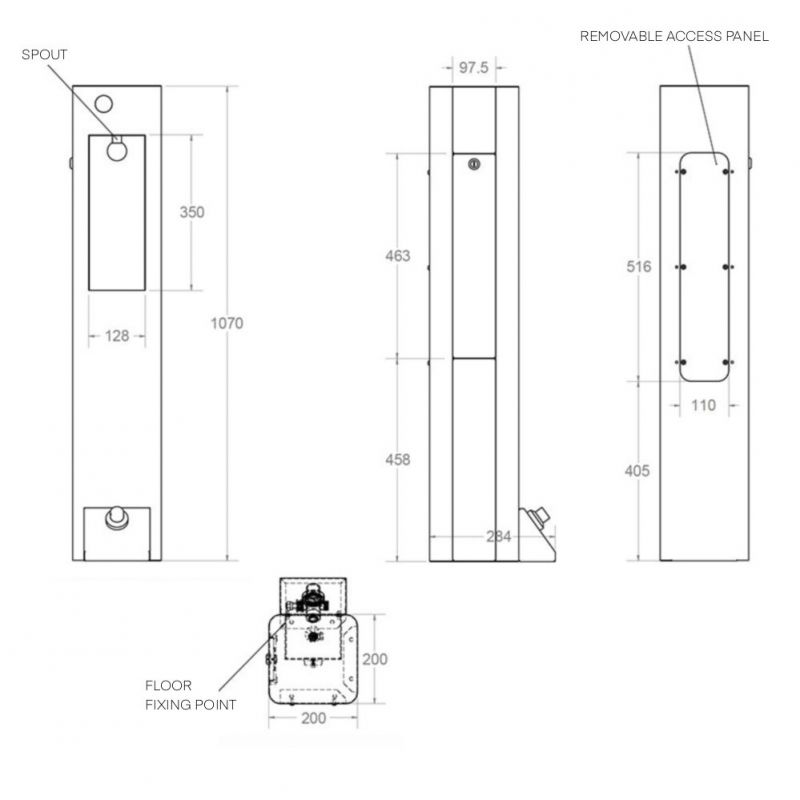

Dimensions
- Height: 1070mm
- Width: 200mm
- Front to back without foot plate: 200mm
- Front to back with foot plate: 284mm
Where can this be installed?
- Ideal for installation in schools, colleges, universities, sports facilities and public spaces
- Suitable for outdoor use providing the water is isolated and drained down during adverse weather conditions (freezing temperatures)
Optional Extras
- TVS364116 - Y strainer double check valve
