Y Strainer Double Check Valve

Description

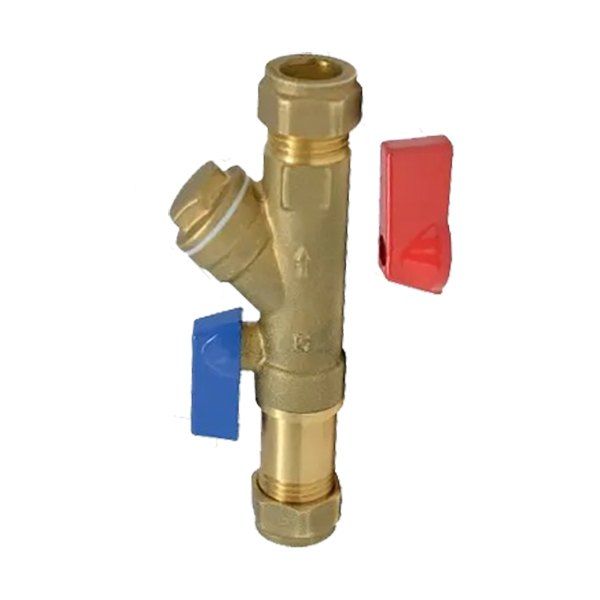

- Model TVS364116 is a 15mm Y strainer with double check valve.
- Y strainer double check valves are designed for applications that require both filtration and backflow prevention, ideal for potable water systems to ensure clean, safe water. Commonly used in drinking fountains, bottle fillers and push button taps to filter out impurities and prevent contamination.
- 15mm compression Y strainer with double check valve and isolating valve.
- Removable 40 mesh stainless steel strainer.
- Double check valve.
- 15mm in-line isolating (shut-off) valve for service and maintenance.
- Supplied with both red and blue handles.
- 180° rotation for versatile installation.
- Compatible with both copper and plastic pipes.

Delivery
- From stock usually 1 to 3 working days.

Technical Overview
- Double check valves are backflow prevention devices designed to safeguard water supplies from contamination. They feature two independent, spring-loaded check valves that allow water to flow in only one direction, blocking any reverse flow. This means that if one valve fails, the other can still effectively prevent backflow.

- A 40 mesh Y-strainer is a filtration device shaped like a “Y” and equipped with a 40 mesh screen. It’s used to remove debris and larger particles from a fluid stream. The Y-shape facilitates easy removal of trapped particles and the 40 mesh screen filters out particles larger than about 375 microns, such as sand and grit.

- Water isolating valves, also known as shut-off or service valves, regulate water flow to specific fixtures or appliances without disrupting the entire plumbing system. They make it possible to stop water supply to individual units, like taps, toilets or washing machines, without shutting off the main supply. It’s recommended that every new installation include an isolating valve for each fixture.
