Product Code: UR067
- Model UR067 is a stainless steel floor standing slab urinal
- Manufactured from 1.2mm thick grade 304 stainless steel
- Channel raised above floor level
- Removable front access panel to get to the pipework underneath
- Vandal resistant square horizontal sparge pipe flushing system
- End panels suitable for butting against side walls or leaving exposed
- Manufactured to order in bespoke lengths up to 3300mm
- Top entry connection for exposed stainless steel cistern and downpipe (supplied)
- Optional back entry connection for a concealed cistern and downpipe (supplied)
- L and U shape urinals with optional corner infill panel(s)
Each Urinal Includes
- Left, right or central 38mm (1.5") waste fitting
- Stainless steel auto cistern (9.0L)
- Stainless steel downpipe
Delivery
- Made to order, usually 15 to 20 working days

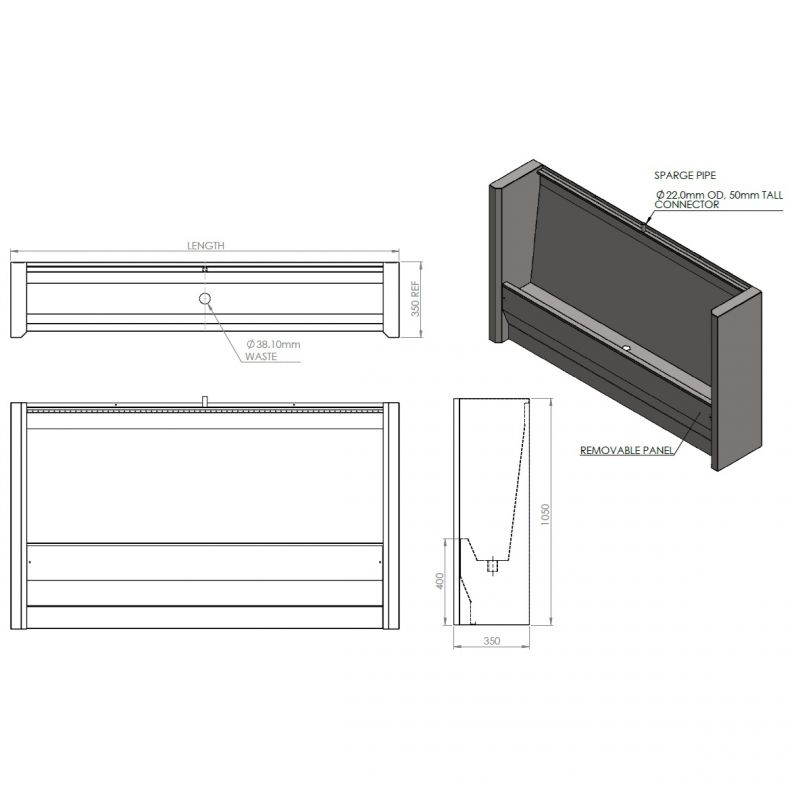

Dimensions
- Height: 1050mm
- Projection: 300mm
- Length: up to 3300mm in one piece
- Cistern: 455mm long x 126mm projection x 280mm high
Optional Extras
MWB-B/M - marnic water watch flush controller, battery or mains operated
UR067-DPC - stainless steel downpipe cover
UR067-CS - corner infill panel for L and U shape urinals
UR067-JCT - joint cover trim for adjacent urinals
