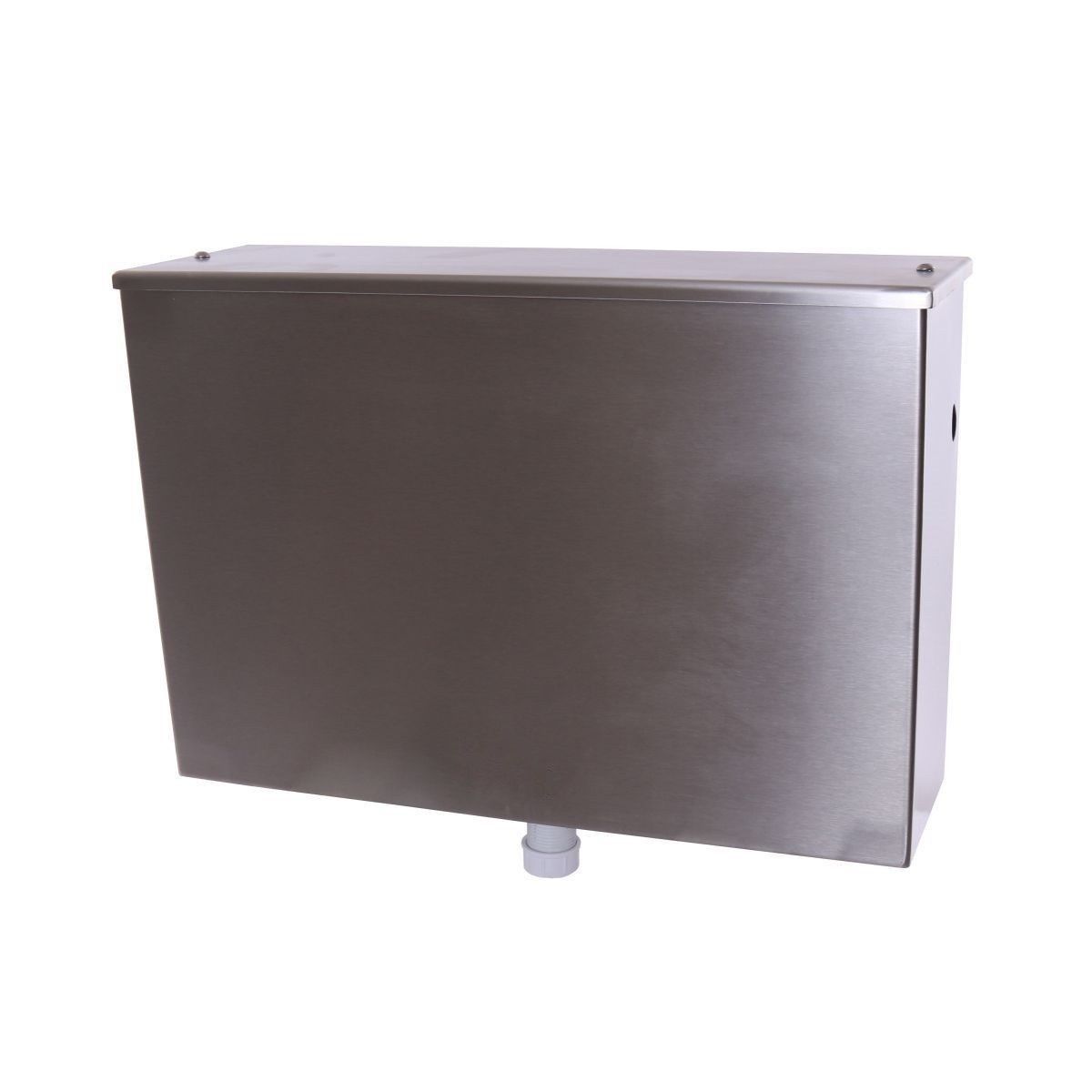

Stainless Steel Auto Cistern for Urinals

Stainless Steel Auto Cistern for Urinals

Product Code: SSURINALCISTERN

  • Stainless Steel Auto Cistern for Urinals
  • Stainless Steel Auto Cistern for Urinals

No documents uploaded.

Description
- Stainless steel auto cistern for urinals
- Supplied instead of plastic cistern when purchased with urinal
- Flushpipe not included when purchased without urinal
- Designed for exposed surface mounted installations
- Manufactured from 1.2mm thick grade 304 stainless steel with a satin finish
- Compatible with our urinal models UR062, UR064, UR065, UR066, UR067 & UR068

Capacities
- 4.5 litre capacity suitable for individual bowl urinal
- 9.0 litre capacity suitable for 900-1500mm long urinal
- 13.65 litre capacity suitable for 1800-2400mm long urinal

Dimensions
Height: 318mm
Width: 503mm
Depth: 190mm

Order Codes - Purchased With Urinal
- UR062-STAINLESS-9.0L-CISTERN-K - upgrade to s/s cistern (instead of plastic) for 900-1500mm UR062, UR066, UR067 & UR068 urinals
- UR062-STAINLESS-13.65L-CISTERN - upgrade to s/s cistern (instead of plastic) for 1800-2400mm UR062, UR066, UR067 & UR068 urinals
UR064-STAINLESS-13.65L-CISTERN - upgrade to s/s cistern (instead of plastic) for 2400mm UR064 urinals
- UR065-STAINLESS-9.0L-CISTERN - upgrade to s/s cistern (instead of plastic) for 1200-1500mm UR065 urinals
- UR065-STAINLESS-13.65L-CISTERN - upgrade to s/s cistern (instead of plastic) for 1800-2400mm UR065 urinals

Order Codes - Purchased Without Urinal
SC131-4.5 - s/s cistern (no flushpipe) for individual bowl urinal
SC131-9.0 - s/s cistern (no flushpipe) for 900-1500mm long urinal
- SC131-13.65 - s/s cistern (no flushpipe) for 1800-2400mm long urinal

Delivery
- From stock, usually 1 to 2 working days

FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
