Floor Standing Trough Urinal

Floor Standing Trough Urinal

Product Code: UR068

Description

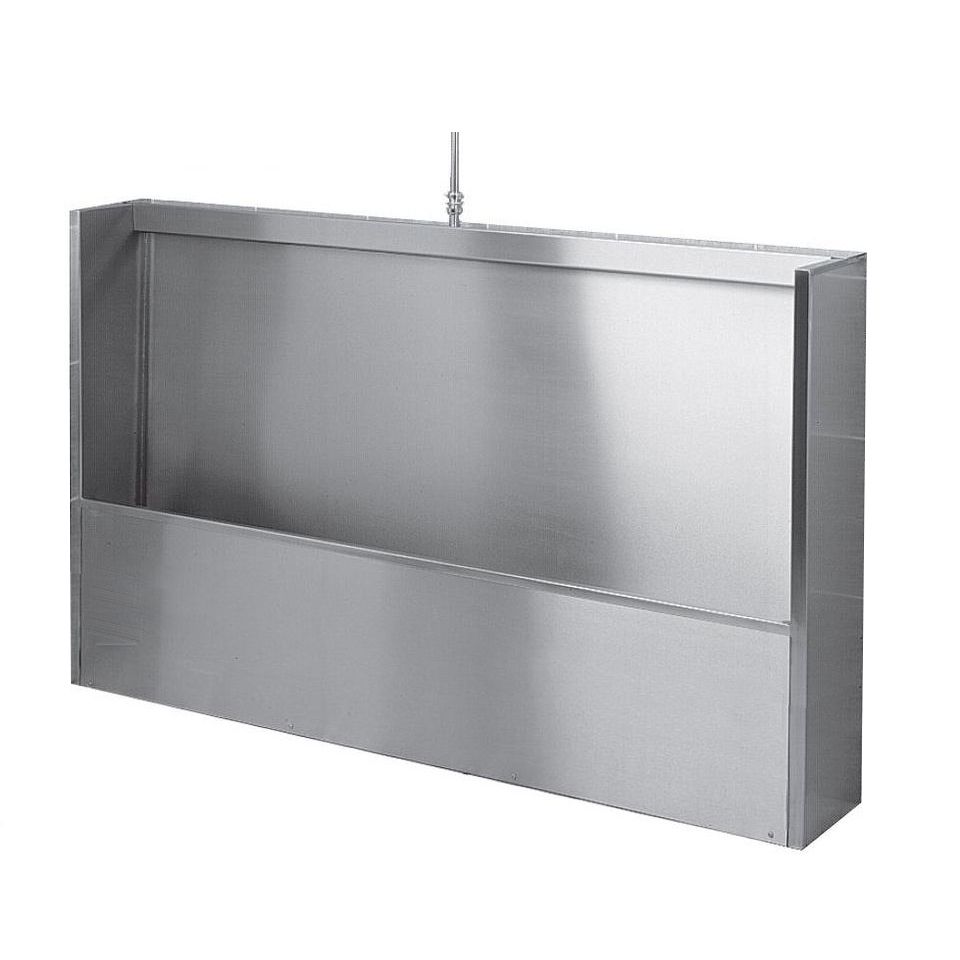

- Model UR068 is a stainless steel floor standing trough urinall
- Manufactured in the UK from 1.2mm thick grade 304 stainless steel
- Channel raised above floor level
- Removable front access panel to get to the pipework underneath
- Vandal resistant square horizontal sparge pipe flushing system
- End panels suitable for butting against side walls or leaving exposed

Options
- Manufactured to order in any length up to 3300mm
- Choice of top entry connection for exposed cistern or back entry for concealed cistern
- L and U shape urinals with optional corner infill panel(s)

Each Urinal Includes
- Central 38mm (1.5") BSP white plastic dome grated waste fitting
- Plastic cistern (9.0L for urinals up to 1500mm long | 13.65L for urinals longer than 1500mm)
- Stainless steel downpipe

Delivery
- Manufactured to order, usually 15 to 20 working days

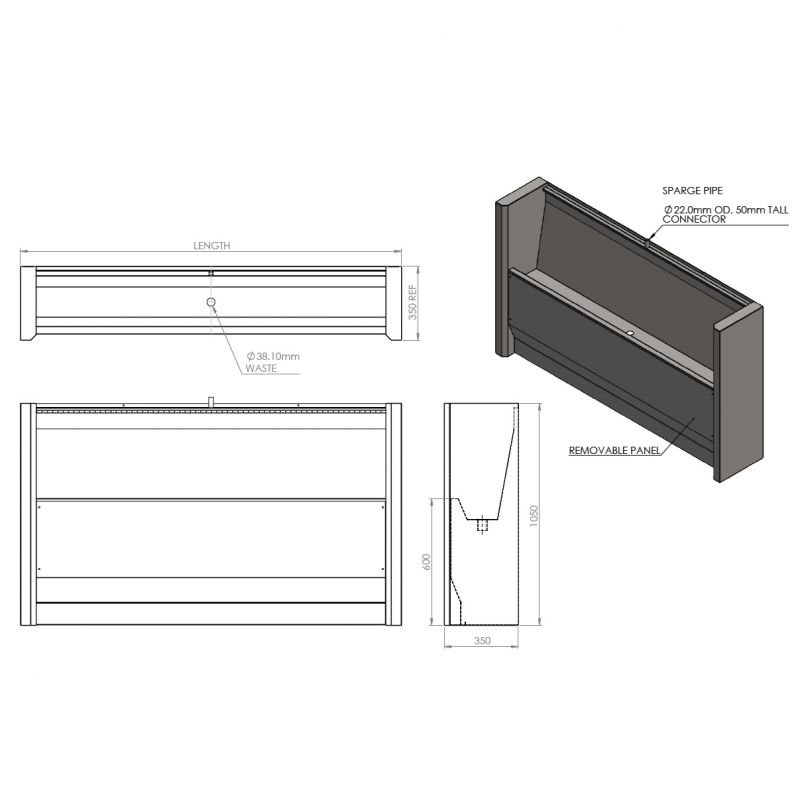

Dimensions
Height: 1050mm
Projection: 350mm
Length: up to 3300mm in one piece

Optional Extras
MWB-B/M - marnic water watch flush controller, battery or mains operated
UR-1.5SSDW - Stainless steel urinal waste fitting
UR064-STAINLESS-9.0L-CISTERN - upgrade to stainless steel cistern (instead of plastic) for urinals up to 1500mm long
UR064-STAINLESS-13.65L-CISTERN - upgrade to stainless steel cistern (instead of plastic) for urinals longer than 1500mm
LARGE-PLASTIC-BOTTLETRAP - 1.5" plastic bottle trap

FOR ANY ENQUIRIES OR QUOTES CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
