Product Code: UR068
Description
- Model UR068 is a stainless steel floor standing trough urinal
- Channel raised above floor level
- Removable front access panel below trough to get to the pipework underneath
- Vandal resistant, high durability and easy to install
- End panels suitable for butting against side walls or leaving exposed
- Manufactured from grade 304 stainless steel 1.2mm thick
- Manufactured to order in bespoke lengths up to 3300mm
- L and U shape urinals available
- Top or back entry flush pipe connection
Includes
- Left or right hand 38mm dome grated waste fitting
- Top entry flush pipe for exposed cistern | back entry flush pipe connection for concealed cistern
- 9 litre stainless steel grade 304 cistern
- Cistern complete with lid, syphon and petcock
- Stainless steel downpipe
Delivery
- Manufactured to order, usually 15 to 20 working days

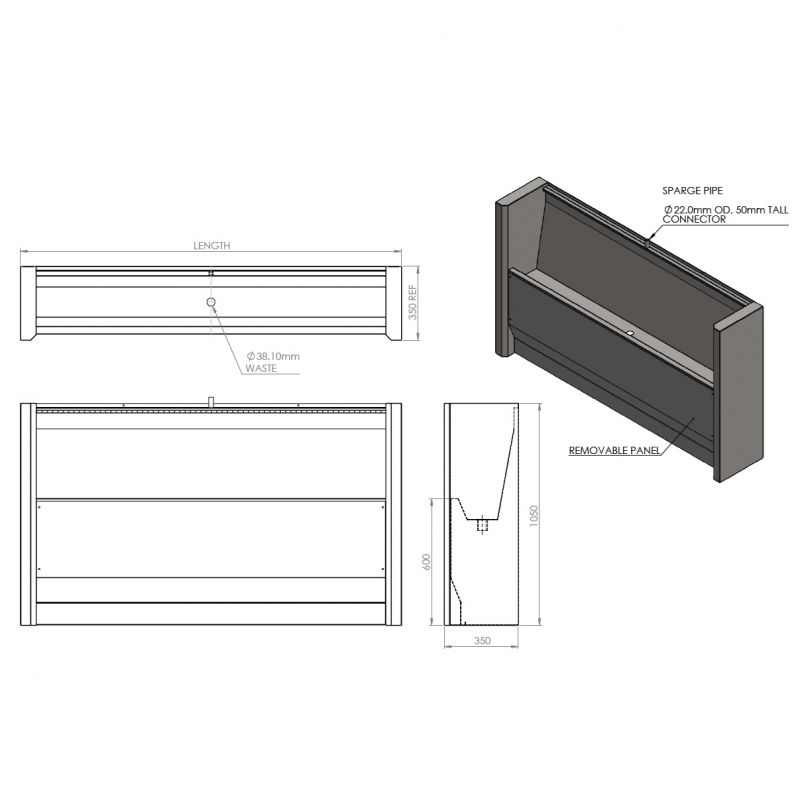

Dimensions
- Height: 1050mm
- Front to back: 300mm
- Length: up to 3300mm in one piece
- Cistern: 455mm long x 126mm projection x 280mm high
- L shape and U shape urinals available
Where can this be installed?
- To be installed inside
- Public toilets
Optional extras
Top entry flush pipe for exposed cistern | back entry flush pipe connection for concealed cistern
UR068-TC – stainless steel trap cover
UR068-DPC – stainless steel down pipe cover
UR068-CS – corner infill panel for L or U shape urinals
UR068-JCT – joint cover trim for adjacent urinals
MWB-B/M - marnic water watch flush controller, battery or mains operated
LARGE-PLASTIC-BOTTLETRAP – 1.5" plastic bottle trap
LARGE-CHROME-BOTTLETRAP – 1.5" chrome plated bottle trap
