Floor Standing Slab Urinal
Floor Standing Slab Urinal
Product Code: UR067
Description

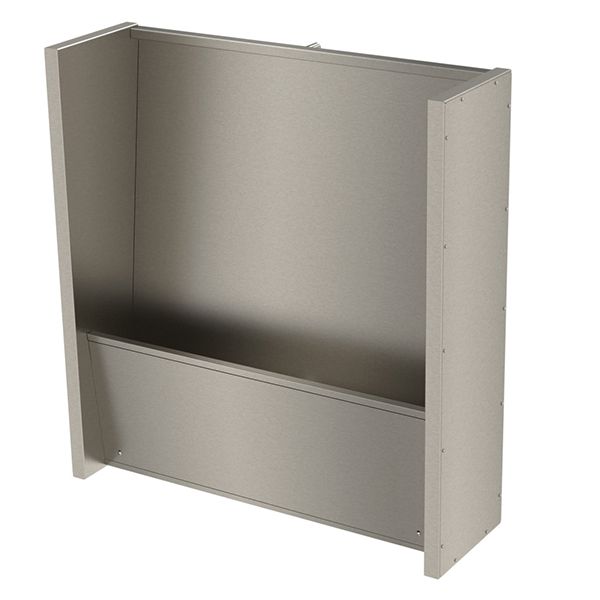

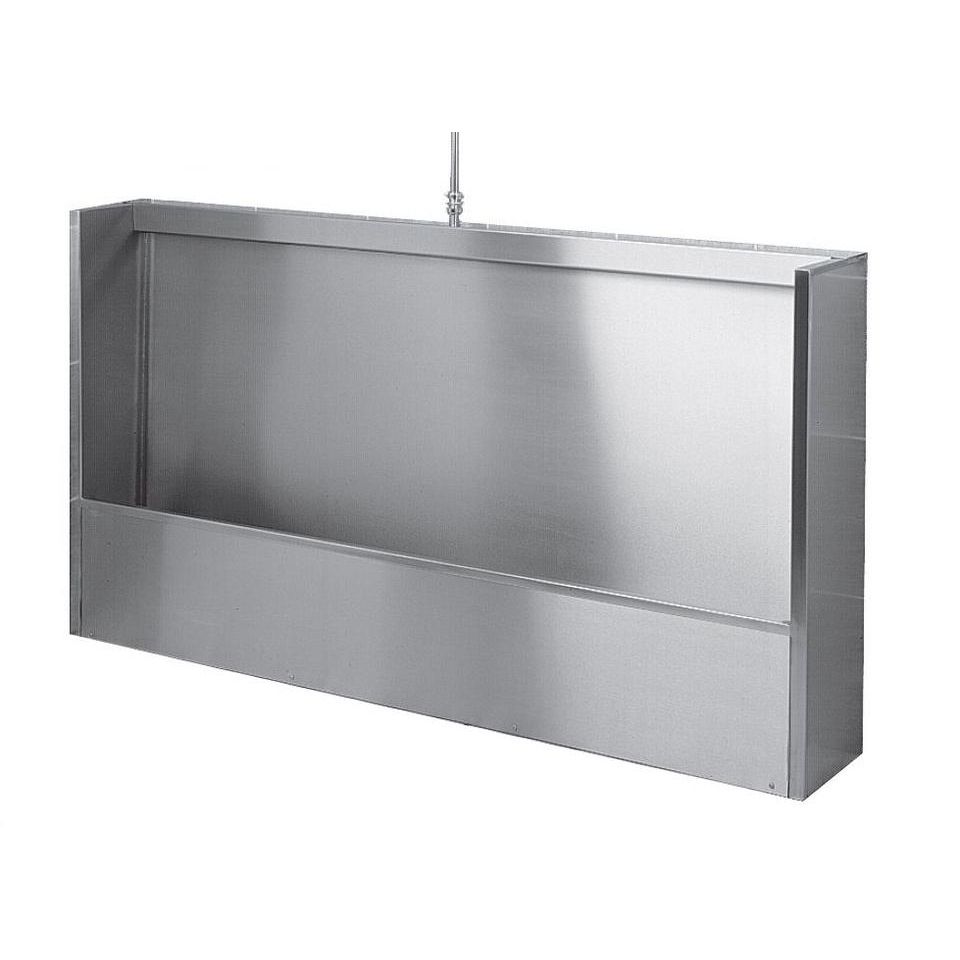

- Model UR067 is a stainless steel floor standing slab urinal
- Manufactured in the UK from 1.2mm thick grade 304 stainless steel
- Channel raised above floor level
- Removable front access panel to get to the pipework underneath
- Vandal resistant square horizontal sparge pipe flushing system
- End panels suitable for butting against side walls or leaving exposed
Options
- Manufactured to order in any length up to 3300mm
- Choice of top entry connection for exposed cistern or back entry for concealed cistern
- L and U shape urinals with optional corner infill panel(s)
Each Urinal Includes
- Central 38mm (1.5") BSP white plastic dome grated waste fitting
- Plastic cistern (9.0L for 900-1500mm urinal | 13.65L for 1800-2400mm urinal)
- Stainless steel downpipe
Delivery
- Manufactured to order, usually 15 to 20 working days

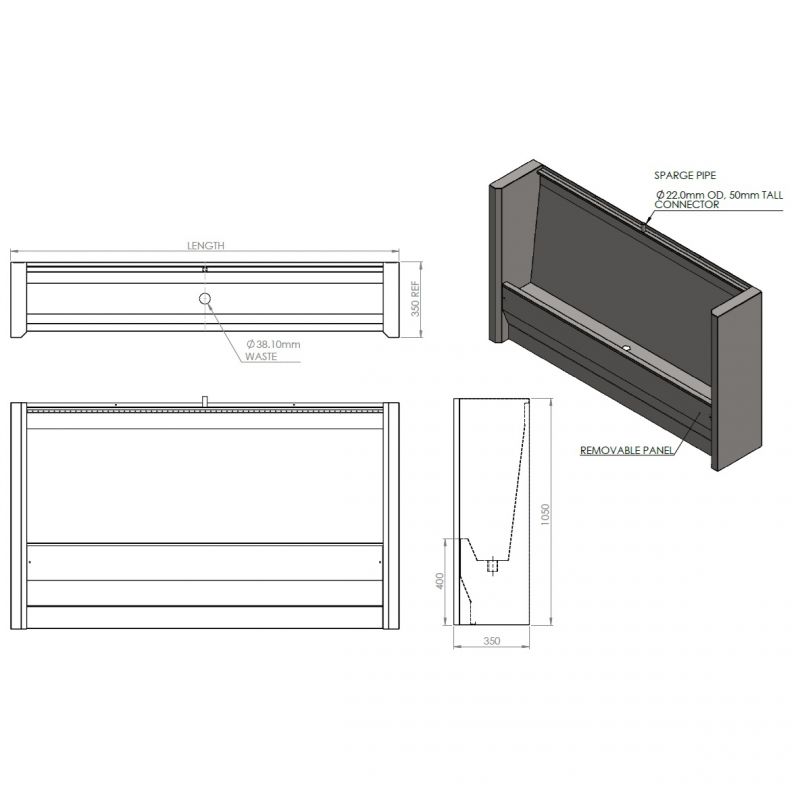

Dimensions
- Height: 1050mm
- Projection: 350mm
- Length: up to 3300mm in one piece
Optional Extras
- MWB-B/M - marnic water watch flush controller, battery or mains operated
- UR-1.5SSDW - Stainless steel urinal waste fitting
- UR064-STAINLESS-9.0L-CISTERN - upgrade to stainless steel cistern (instead of plastic)
- UR064-STAINLESS-13.65L-CISTERN - upgrade to stainless steel cistern (instead of plastic)
- LARGE-PLASTIC-BOTTLETRAP - 1.5" plastic bottle trap
FOR ANY ENQUIRIES OR QUOTES CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
