Product Code: UR062
- Model UR062 is a classic stainless steel wall mounted urinal trough
- Cost effective solution compared to individual bowl urinals
- Easy to install and high durability
- Integral wall mounting points
- Concealed sparge flushing pipe fitted to urinal
- Manufactured in the UK from grade 304 stainless steel, 1.2mm thick
Each Urinal Includes:
- 38mm BSP white plastic dome grated waste fitting
- Plastic exposed automatic cistern (9.0L for 900-1500mm urinal | 13.65L for 1800-2400mm urinal)
- Stainless steel 22mm dia. flushpipe and clips
- Integral wall mounting points
Stock Options
- Six standard sizes - 900mm, 1200mm, 1500mm, 1800mm, 2000mm and 2400mm
- Central waste outlet
- Top entry connection for exposed cistern
- Delivery 1 to 2 working days
Bespoke Options - Made to Order
- Any length up to and including 3000mm in one piece
- Back entry connection for concealed cistern

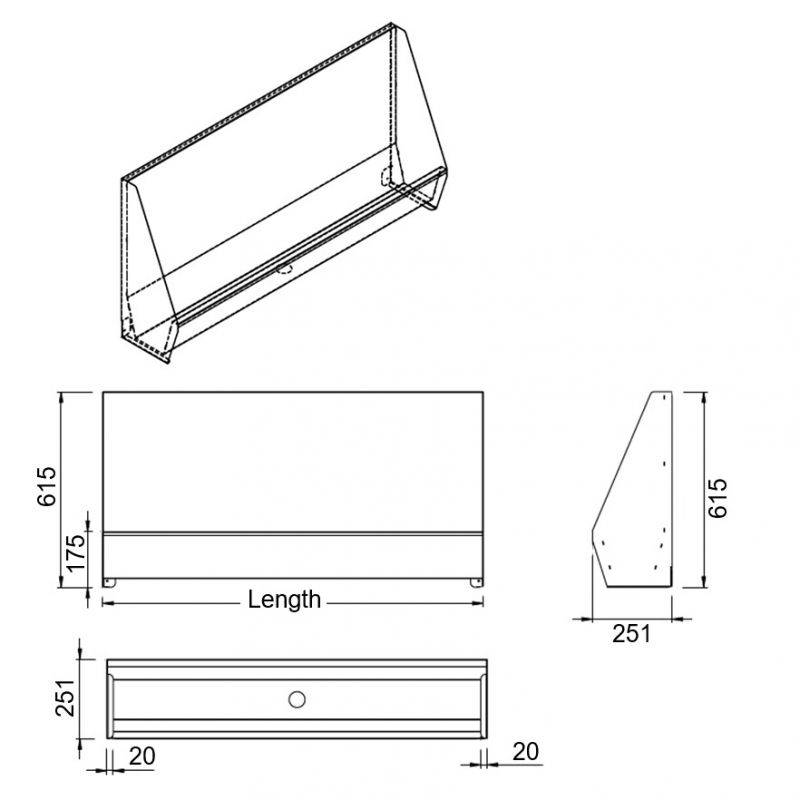

Dimensions
- Height: 615mm
- Front to back: 251mm
- Length: As ordered
- Cistern: 505mm (W) x 150mm (D) x 327mm (H)
Mounting Heights (Recommended)
- From front lip to floor: adult 610mm | junior 510mm
Optional Extras
- LARGE-PLASTIC-BOTTLETRAP - 1.5" (38mm) plastic bottle trap
- LARGE-CHROME-BOTTLETRAP - 1.5" (38mm) chrome plated bottle trap
- MWB-B/M - Marnic water watch flush controller, battery or mains operated
- UR-1.5SSDW - Stainless steel urinal waste fitting
- UR064-STAINLESS-9.0L-CISTERN - upgrade to stainless steel cistern (instead of plastic) for 900-1500mm urinal
- UR064-STAINLESS-13.65L-CISTERN - upgrade to stainless steel cistern (instead of plastic) for 1800-2400mm urinal
