Back to Wall WC Pan

back to wall toilet for public restrooms

Product Code: WC108-SH

Description

- Model WC108-SH is our stainless steel back to wall WC pan
- For use with concealed cistern
- Manufactured from 1.6mm thick, grade 304 stainless steel
- Highly vandal resistant
- This unit is drilled for seat and cover and supplied as standard with blanking caps
- Trap is formed with a minimum 50mm deep water seal
- Fitted to a concealed mounting plate by security type screws

Includes

- 55mm internal diameter water inlet socket
- 100mm overall diameter horizontal outlet suitable for a plastic WC connector
- Rubber inlet connector suitable for a 38mm overall diameter flushpipe
- Blanking caps

Delivery

- In stock, 1 to 2 working days

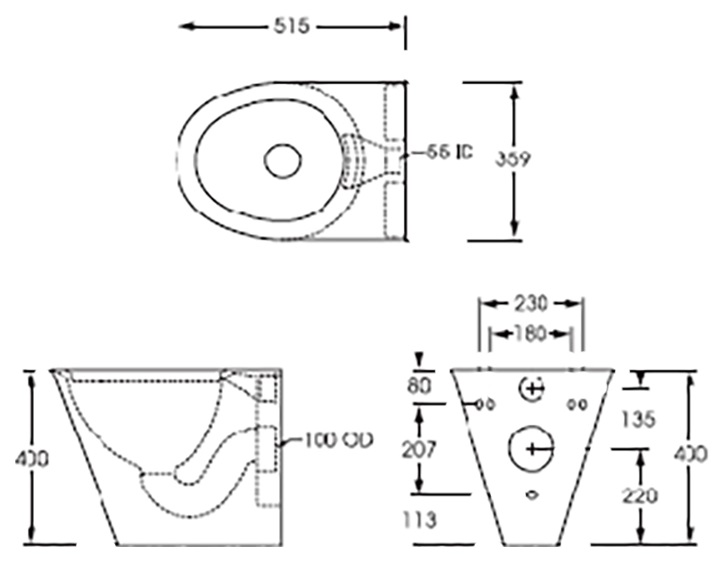

Dimensions

- Height: 400mm
- Front to back: 515mm
- Width: 359mm

Where can this be installed?

- Public restrooms

Optional Extras

WC142-LL-WL - plastic concealed cistern with lever
WC142-LL-AIR-50 - plastic concealed cistern with push button
WCPSC-EURO-BK - black plastic toilet seat & cover
