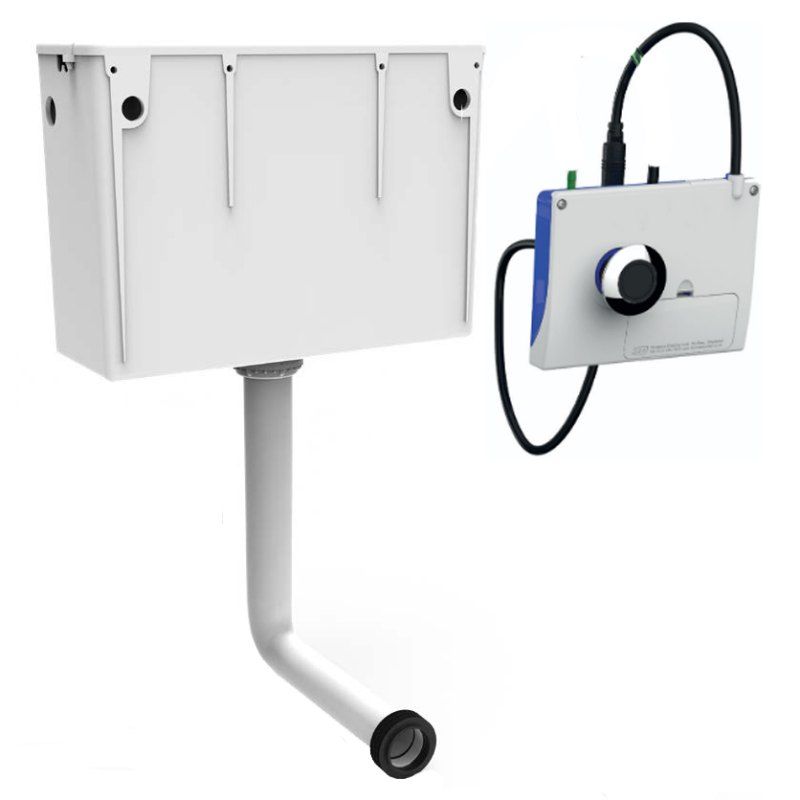

Sensor Operated Cistern - Mains or Battery Operation

- Touch-free infrared WC flush sensor with concealed plastic cistern for hygienic, hands-free flushing
- Ideal for domestic bathrooms, commercial washrooms and public toilet facilities
- Infrared sensor enables touch free flushing using simple hand gestures to improve hygiene and reduce cross contamination
- Suitable for concealed installation behind tiles, bathroom furniture, IPS panelling or partition walls
- Water saving dual flush system helps reduce water consumption and operating costs
- Supports 6/4, 5/3 or 4/2.6 litre flush volumes
- Sensor recognises multiple hand gestures: wave for a full flush and hold hand in front of sensor for a reduced flush
- LED indicator provides clear visual confirmation when the flush is activated
- Post flush sensor delay allows the cistern to refill before the next flush
- Control box can be mounted integrally behind the panel with the sensor or separately on a suitable flat surface
- Available in mains powered or battery powered models to suit a wide range of installations
- Discreet Ø40mm chrome infrared sensor complements modern bathroom and washroom designs

Technical Information
- Operating Voltage: 6V DC
- Mains Supply: 230V AC 50Hz
- Battery Supply: 4 x 1.5V AA
- Sensor Cable Length: 400mm
- Sensor Activation Range: Up to 50mm
- Ingress Protection: IP44
- Maximum Wall Thickness: Up to 45mm

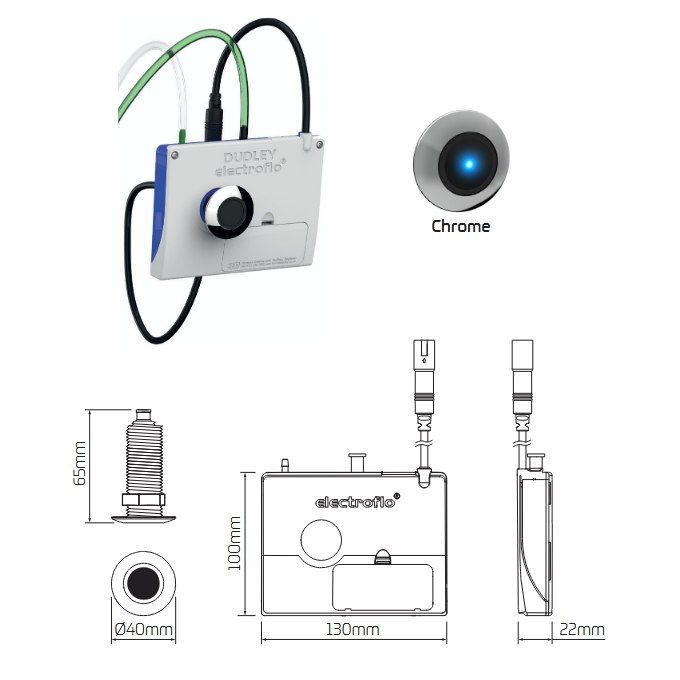

Dimensions
- Sensor Diameter: Ø40mm
- Maximum wall thickness: 45mm
- Maximum wall thickness with separate extension kit: 170mm
- Sensor cable length: 400mm

Options
- Mains operated
- Battery operated

Delivery
- To order, usually 3 to 5 working days
