Wall Mounted WC Pan

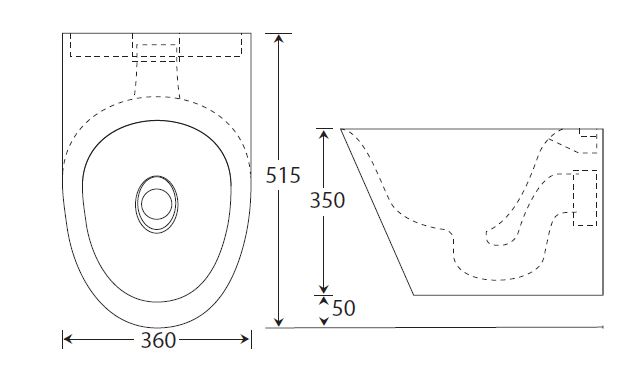

Wall Mounted WC Pan wall hung toilet pan dimensions

Product Code: WC106-SH

Description

- Model WC106 is our wall mounted toilet
- For use with concealed cistern
- Manufactured from 1.6mm thick, grade 304 stainless steel
- Highly vandal resistant
- Compatible with most standard in wall cistern frames
- This unit is drilled for seat and cover and supplied as standard with blanking caps

Includes

- Complete with 55mm diameter inlet connector
- Horizontal 100mm diameter outlet
- Wall fixing bolts
- Blanking caps

Delivery

- In stock, 1 to 2 working days

Dimensions

- Height: 350mm
- Front to back: 515mm
- Width: 360mm

Where can this be installed?

- Public restrooms
- Prisons

Optional Extras

WC142-LL-WL - plastic concealed cistern
WC142-LL-AIR-50 - plastic concealed cistern with push button
WCPSC-EURO-BK - black plastic toilet seat & cover

Black plastic seat and cover (WCPSC-EURO-BK)

Optional lever or press button concealed cistern
