Product Code: WE503
Description
- Model WE503 is a knee operated, wall mounted, hand washing trough
- Wash trough with hands free operation using time flow knee valves and fixed deck spouts to prevent cross contamination
- Constructed from grade 304 stainless steel, 1.6mm thick for heavy duty use and extra vandal resistance
- Available from stock in 8 standard sizes: 500mm for 1 user, 1000mm and 1200mm for 2 users, 1500mm and 1800mm for 3 users, 2000mm and 2400mm for 4 users and 2500mm for 5 users
- Knee valves are chrome plated with 15mm compression fittings and time flow set for approx. 15 seconds at 3 bar water pressure
- Fixed basin spouts are chrome plated (interconnecting pipework shown but not supplied)
- Cost effective solution for providing multiple hand washing facilities than traditional basins
- Taps and knee valves will need to be installed on site
Package Includes
- WE305 stainless steel wall mounted wash trough c/w centre 38mm (1.5") flush grated waste fitting included (no plug or overflow)
- TVS6831TKV chrome plated knee valve per user
- TVS6912DSP chrome plated fixed basin spout per user
Delivery
- In stock, usually 2 to 3 working days

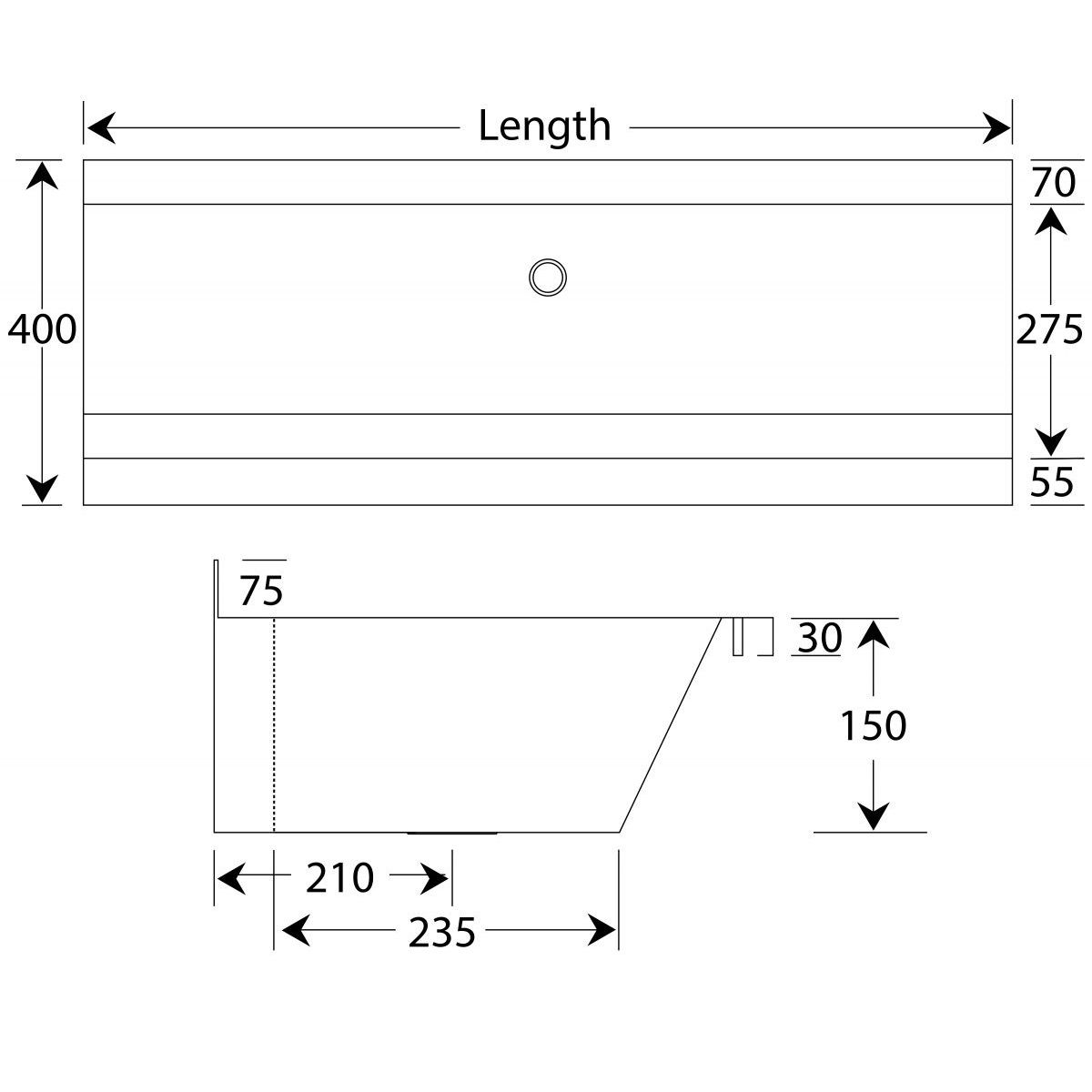

Dimensions
This wash trough can be supplied at different lengths.
- Lengths available: 500mm | 1000mm |1200mm | 1500mm | 1800mm | 2000mm | 2400mm | 2500mm
- Height: 150mm
- Front to back: 400mm
- Rear upstand: 75mm
- Tap Ledge: 70mm
Where can this be installed?
- This wash trough is ideal for locations where multiple users require hand washing facilities at the same time.
- Can be installed inside or outside
- Ideal for schools, colleges, factories etc
- If being installed in an environment where people may lean or sit on the trough, we recommend purchasing a pair of front support legs (see below) for extra support holding the wash trough up
Optional Extras
WE-STANDARD-FL - Stainless steel front support legs (950mm unit height)
LARGE-PLASTIC-BOTTLETRAP – 1.5" plastic bottle trap
LARGE-CHROME-BOTTLETRAP – 1.5" chrome plated bottle trap
WE305-TPCVR - Stainless steel trap cover
TAPS AVAILABLE FROM OUR EXTENSIVE RANGE
POWDER COATED FINISH AVAILABLE UPON REQUEST
