Stainless Steel Pre-Drilled Wash Trough
Stainless Steel Pre-Drilled Wash Trough
Product Code: WE309
Description

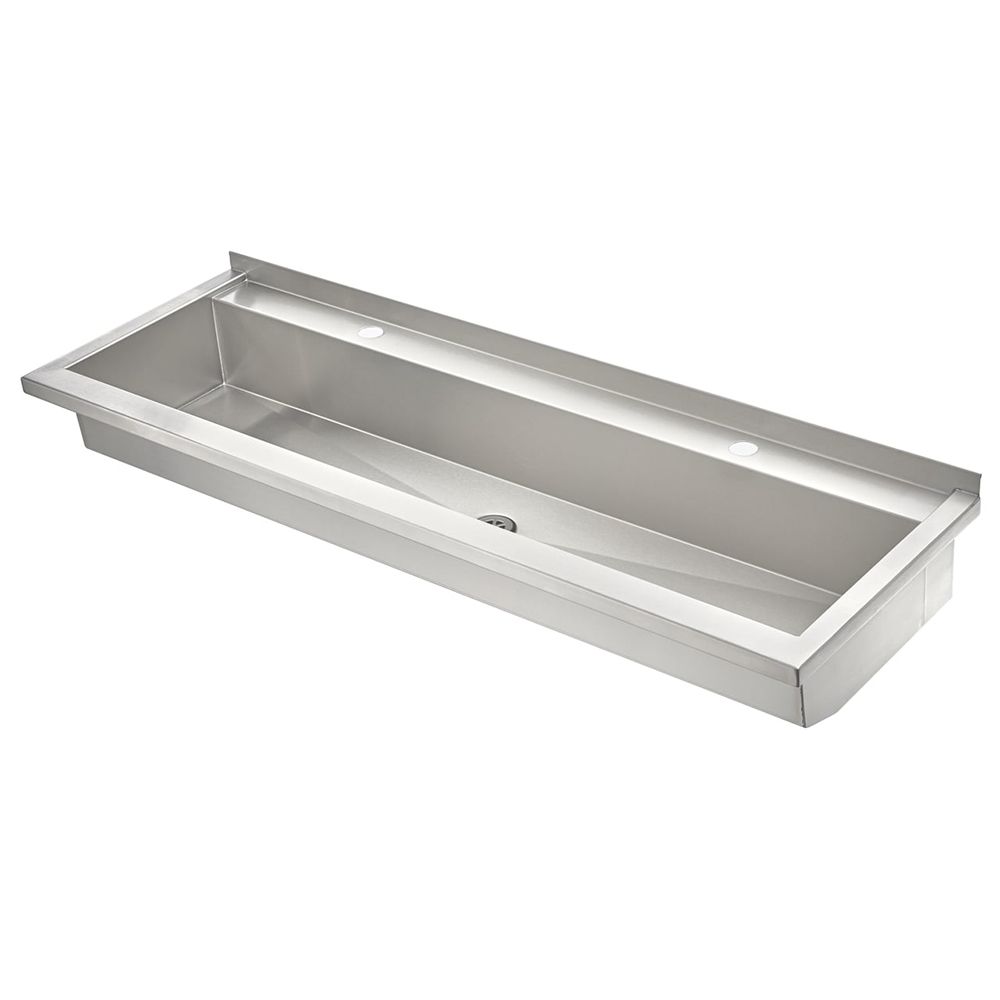

- Model WE309 is a wall mounted wash trough with pre drilled tap holes
- Constructed from grade 304 stainless steel, 1.5mm thick
- Pre drilled with a single 35mm tap hole per user
- The tap holes will be suitable for most mixer, infrared, time flow and the traditional lever or cross head taps
- Heavy duty construction for everyday use
- Available in 8 standard stock lengths (bespoke lengths available upon request)
Includes
- Integral wall mounting points
- Centre 38mm flush grated waste fitting (no plug or overflow)
- Pre-drilled tap holes for single 35mm tap hole per user
Delivery
- From stock, usually 1 to 2 working days

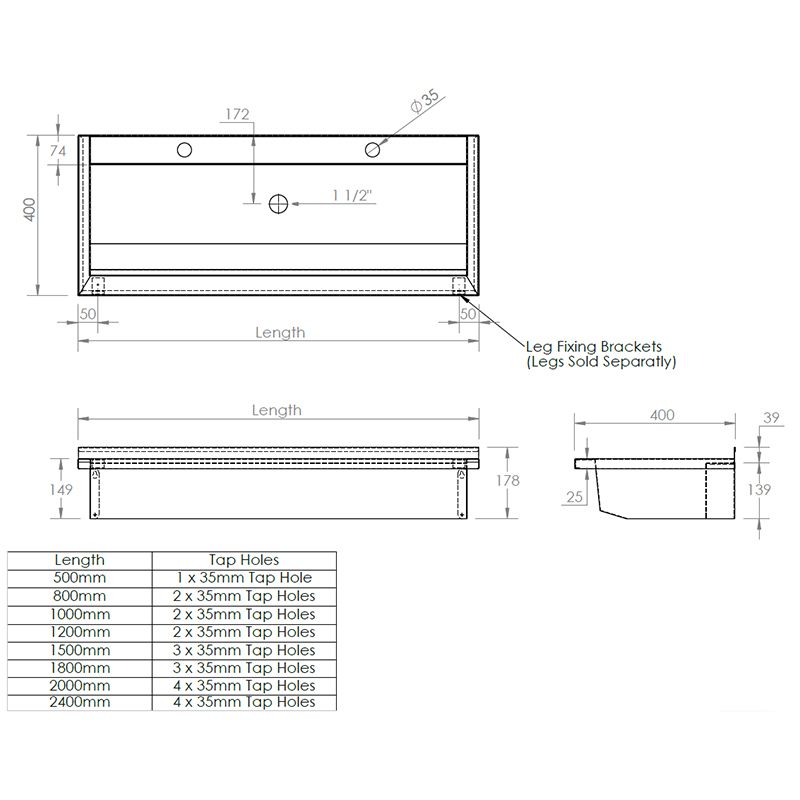

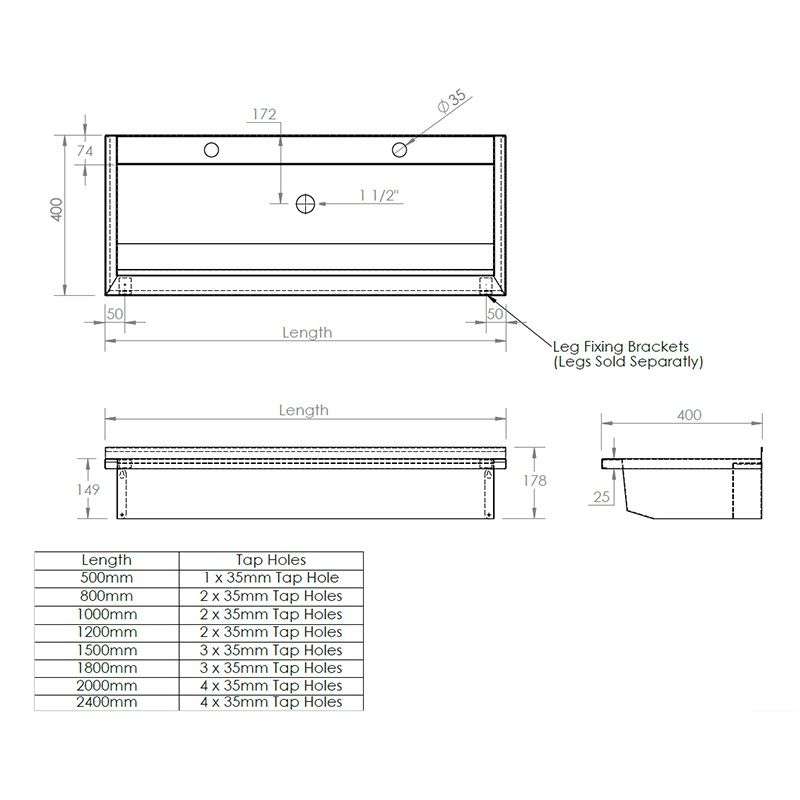

Dimensions
- This wash trough can be supplied at different lengths
- Lengths available: 500mm | 1000mm | 1200mm |1500mm | 1800mm | 2000mm | 2400mm | 2500mm
- Height: 150mm
- Front to back: 400mm
- Rear upstand: 75mm
- Tap Ledge: 70mm
Pre-drilled tap holes
- 500mm length – single 35mm tap hole
- 1000mm length – two single 35mm tap holes
- 1200mm length – two single 35mm tap holes
- 1500mm length – three single 35mm tap holes
- 1800mm length – three single 35mm tap holes
- 2000mm length – four single 35mm tap holes
- 2400mm length – four single 35mm tap holes
- 2500mm length – five single 35mm tap holes
Where can this be installed?
- This wash trough is ideal for locations where multiple users require hand washing facilities at the same time
- Can be installed inside or outside (with appropriate safety measures for water supplies in freezing weather)
- Ideal for schools, colleges, factories etc
- Front legs are available for extra support where there is a likelihood that users will lean or sit on the front
Optional Extras
WE-STANDARD-FL - Stainless steel front support legs (950mm unit height)
WE-NURSERY-LEGS - Stainless steel front support legs (600mm unit height)
LARGE-PLASTIC-BOTTLETRAP – 1.5" plastic bottle trap
LARGE-CHROME-BOTTLETRAP – 1.5" chrome plated bottle trap
WE305-TPCVR - Stainless steel trap cover
TAPS AVAILABLE FROM OUR EXTENSIVE RANGE
Powder coated colour finish
FOR ANY ENQUIRIES OR QUOTES PLEASE CALL US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
