Non-Concussive Time Flow Tap

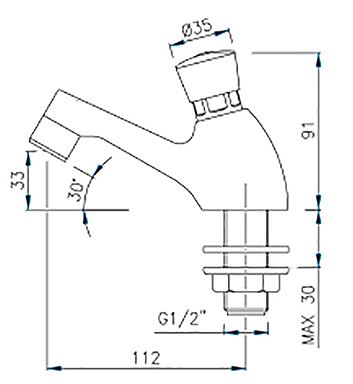

non-concussive vandal resistant basin tap with time flow control dimensions

Product Code: TVS6922BT

Model TVS6922 is our non-concussive push button time flow taps with vandal resistant design. Vandal resistant as water will only flow once the tap has been released; this is to prevent tampering and flooding. WRAS approved with a 2 year warranty*. It is advised that water filters or Y strainers are fitted to the supply pipework to non concussive taps to prevent waterborne debris entering the cartridge (failure to do so will invalidate the warranty if debris has been allowed to enter the tap cartridge)

Material and Specifications

Chrome plated brass
WRAS approved
1/2" standard valve and inlet
Run time of 8-12 seconds
Fitted with aerator and flow restrictor to save water
Supplied as singles and pairs
Requires 22mm tap holes

Maximum Inlet Pressure	5 Bar
Minimum Inlet Pressure	0.1 Bar
Timed flow (standard)	10 seconds at 1 Bar (approx)
Flow Rate	3 litres per minute

Delivery

In stock, 1 to 2 working days

Optional Extra

- TVS7001TMV3-15 - thermostatic mixing valve

FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]

* warranty will not apply in taps where debris is found
