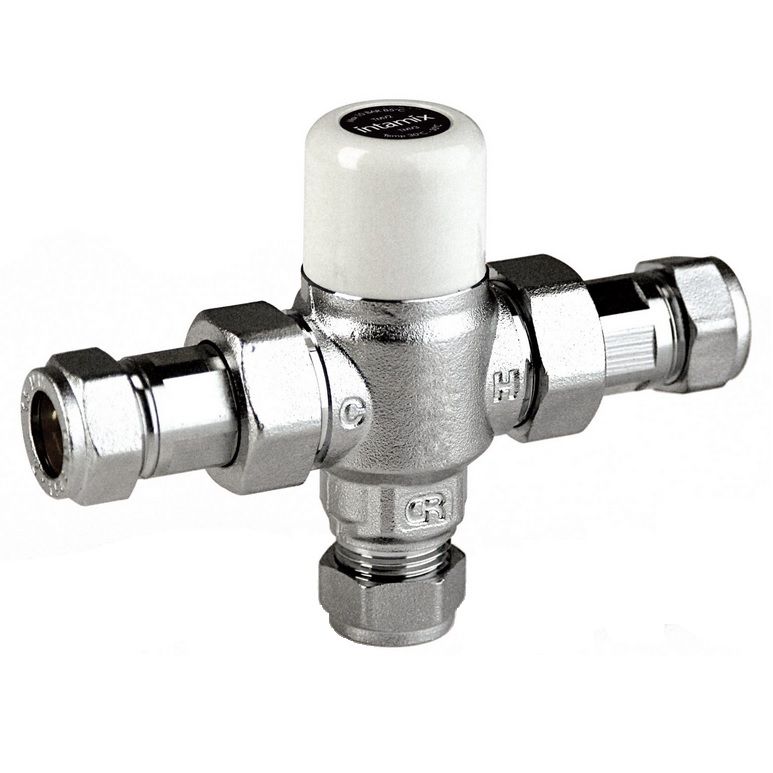

Thermostatic Mixing Valve

Thermostatic Mixing Valve

Product Code: TVS7001TMV3-15

Model TVS7001 is our TMV3 thermostatic mixing valve to supply safe, blended hot water to taps, showers, bidets and other water outlets. This makes them ideal for use in schools, hospitals and other leisure centres. Designed primarily to single outlet use. Ideal for installing with timed flow controls, non-thermostatic taps, sensor operated spouts and showers.

Specification, Temperatures & Pressures

Specification

15mm x 15mm x 15mm

Max Inlet Temperature

80 degrees celsius

Factory Preset Temperature

43 degrees celsius

Temperature Stability

+or- 2 degrees celsius

Max Pressure Inlet Differential

10:1

Min Pressure Drop

0.1 BAR

Max Dynamic Pressure

5.0 BAR

Max Static Pressure

10.0 BAR

Flow Rates

Pressure drop (bar)

0.1

0.2

0.5

1.0

2.0

Flow rate (L/min)

5.0

8.5

15.0

21.5

31.0









Delivery

In stock, 1 to 2 working days

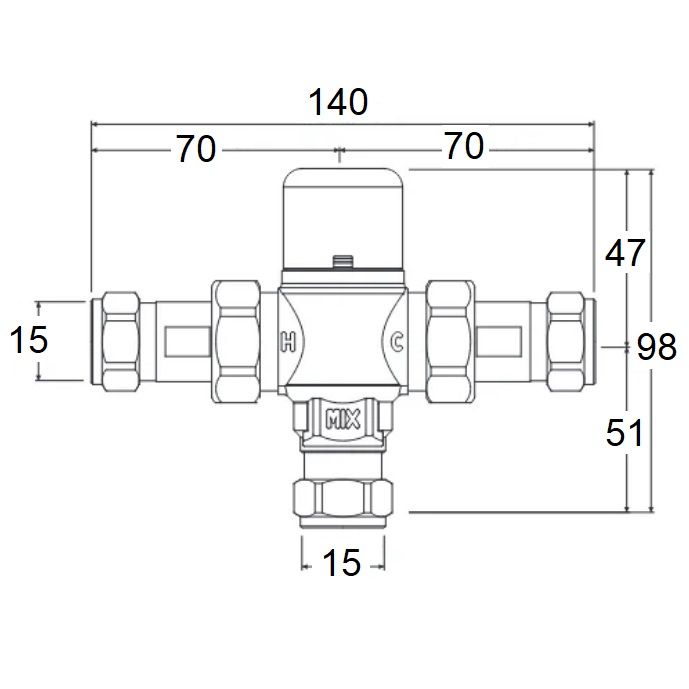

Dimensions

temperature controlled thermostatic mixing valve

Options

Our products are tested and certified to meet applicable standards. Not all products are covered by the same standards.
Products maunfactured outside the EU may have been tested to local standards which may meet or exceed EU standards.
