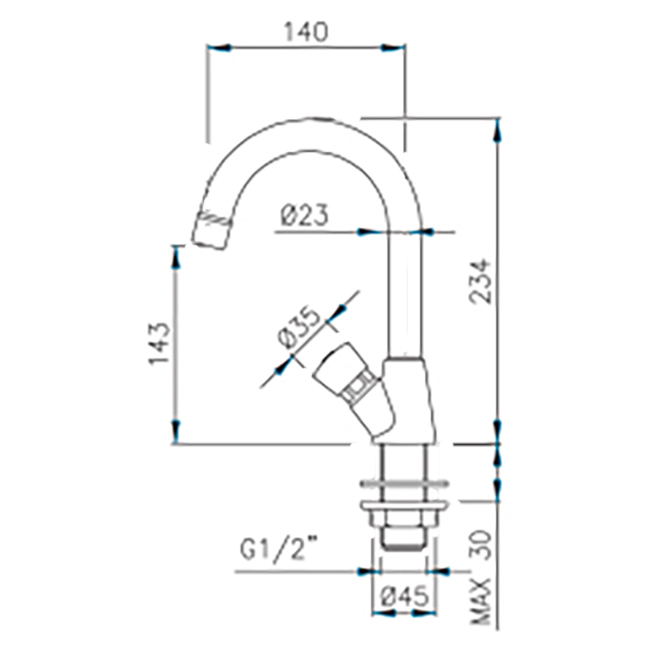

Self Closing Swan Neck Basin Tap

Product Code: TVS9091SCBTFS

Model TVS9091 is our self closing time flow swan neck basin tap. This tap is fixed and does not swivel. Non concussive for water saving applications. WRAS approved with a 2 year warranty. To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.

Material and Specifications

Chrome plated brass
WRAS approved
1/2" standard valve and inlet
Run time of 8-12 seconds
Fitted with aerator for improved water flow
Supplied as single tap
Supplied with red and blue indices
Requires 22mm tap hole

Maximum Inlet Pressure	5 Bar
Minimum Inlet Pressure	0.1 Bar
Timed flow (standard)	10 seconds at 1 Bar (approx)
Flow Rate	3 litres per minute

Delivery

In stock, 1 to 2 working days

Optional Extra

- TVS7001TMV3-15 - thermostatic mixing valve
- TVS364116 - Y strainer double check valve
