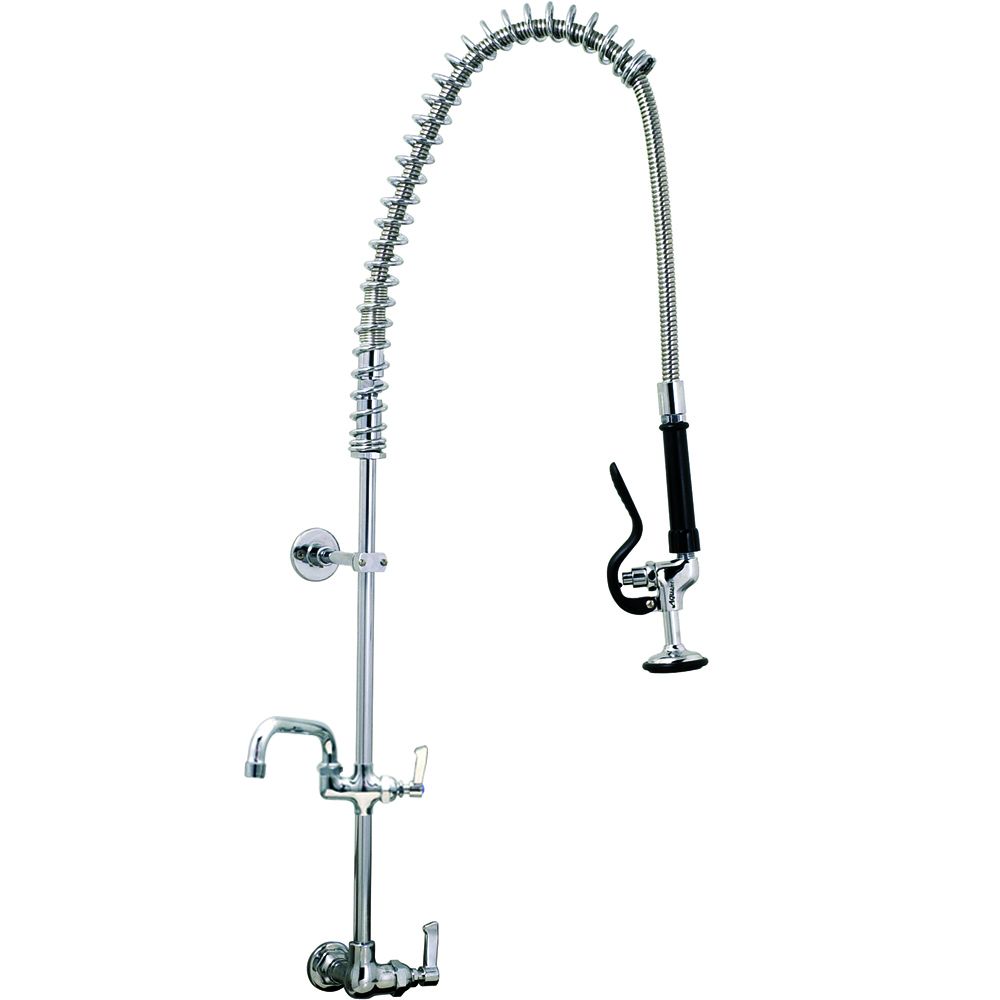

Wall Mounted Pre Rinse Mono Catering Tap With 6" Pot Filler
Wall Mounted Pre Rinse Mono Catering Tap With 6" Pot Filler
Product Code: TVS-WMPRMPF-6
No documents uploaded.
Specification
- Panel mounted catering pre-rinse spray with single pedestal and 6" bowl filler
- Single monobloc water feed
- Lever operated tap
- Hand held trigger operated spray
- Preassembled to reduce installation time
- Heavy duty food-grade high flow water hose
- Factory tested up to 6 bar for quality assurance

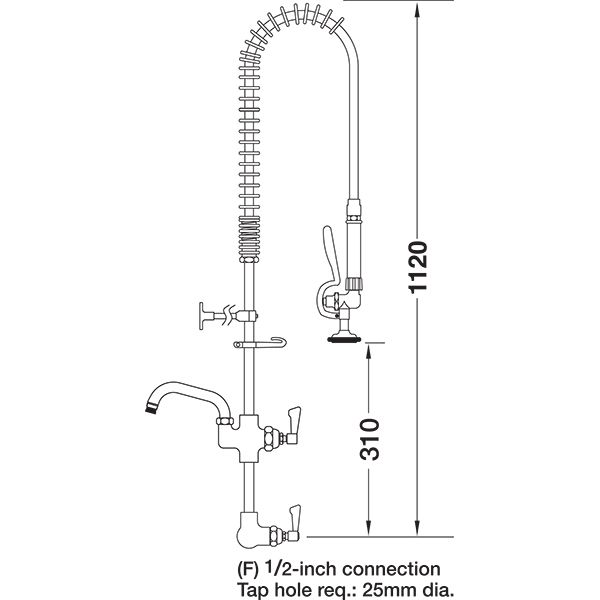

- 1120mm high
- WRAS / REG4 approved
- Connection: ½ inch BSP female thread for wall or panel mounting
- Requires single 25mm tap hole
- Product weight: 4kg
- Recommended dynamic water pressure range: 1.5 - 5 bar
- Max hot water temperature 60°C
- Manufactured from nickel plated brass, 304 stainless steel braided hose with EPDM lined inner hose
- Flow rates: 7.79lpm tested at 3 bar pressure, bowl filler 5.8lpm tested at 3 bar pressure
- This model is also available without bowl/pot filler
Delivery
- To order, 3 to 5 working days
Optional Extras
- TVS7001TMV3-15 - thermostatic mixing valve
FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
