Sluice Sink

Sluice Sink

Product Code: MHP824

Description

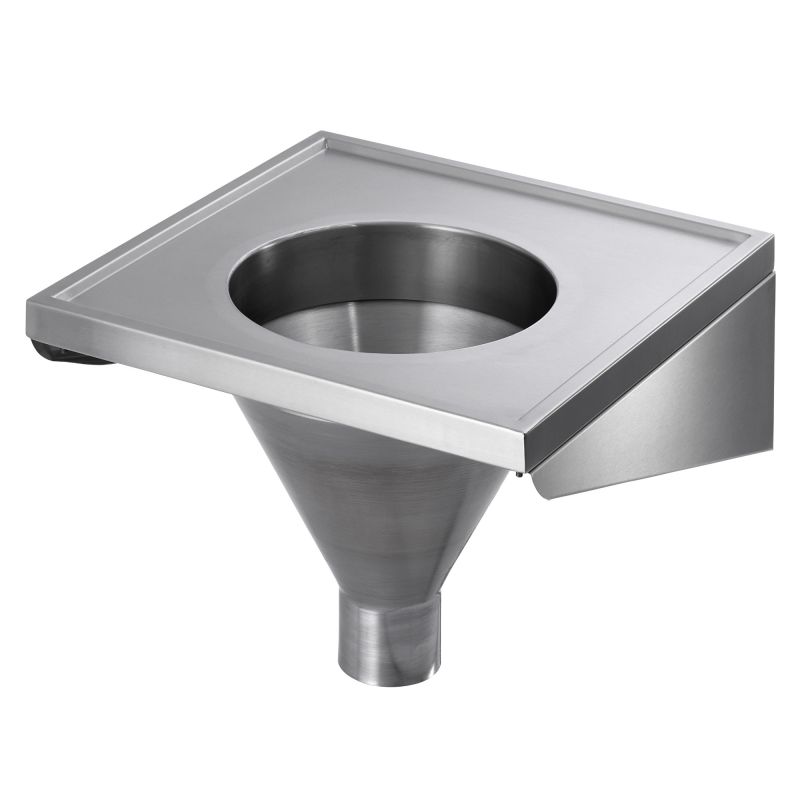

- Model MHP824 (formerly MHP804) is our stainless steel wall mounted sluice sink (slop hopper)
- Conforms to HBN 00-10 Part C: Sanitaryware Assemblies which replaces the old HTM64 specification
- Hospital disposal unit model DU
- Manufactured from grade 304 stainless steel with a satin polished finish
- Choice of flushpipe connection - top entry for use with exposed cistern or back entry for use with concealed cistern
- 110mm plain spigot outlet with the option of white polypropylene P or S trap
- The sluice sink is manufactured with an anti drip edge and turn down to all four sides
- Full flushing rim to ensure efficient and hygienic flushing
- All sluice sinks are supplied with wall mounting brackets with the option of front support legs
- Overall size 600mm x 600mm
- The slop hoppers are predominantly used in hospitals and care homes

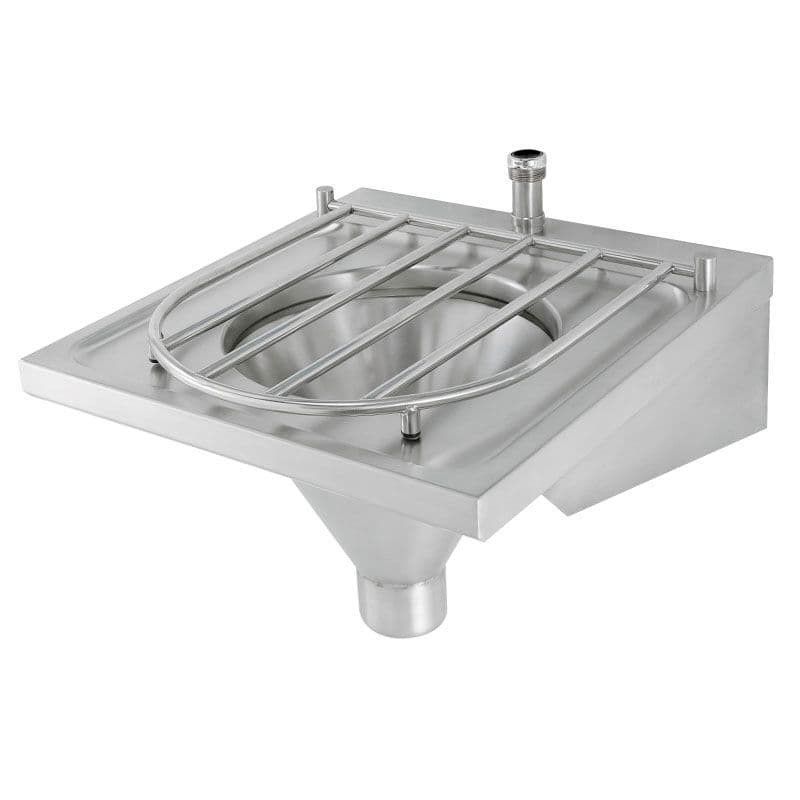

Top Entry Model
- For a limited time comes with a grating as standard
- Tap hole drilling not available

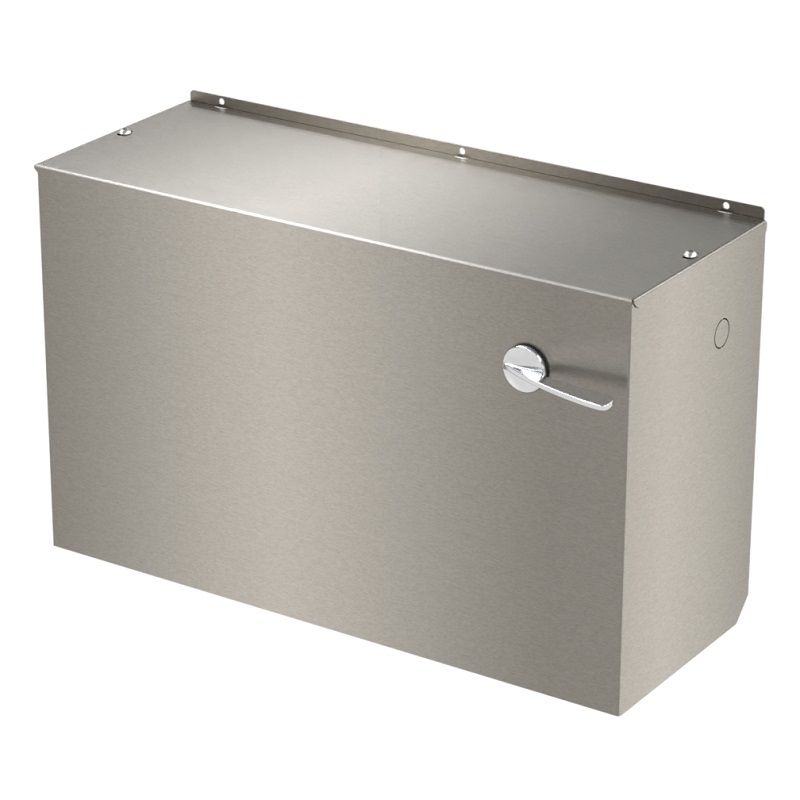

- Optional plastic or exposed stainless steel manual cistern with operating lever available

Back Entry Model
- Grating not included as standard
- Tap hole drilling option available if required, see below:
- No tap hole
- Single left or right hand tap hole for lever mixer swivel tap (product code TVS6743LQMMT)
- Fixing holes for stainless steel hinged grid (product code MHP-GRID)
Please note if you have a tap hole you cannot have a grid. It is one or the other.
- Optional concealed plastic manual cistern with operating lever and flushpipe available

Delivery
- From stock, usually 1 to 3 working days

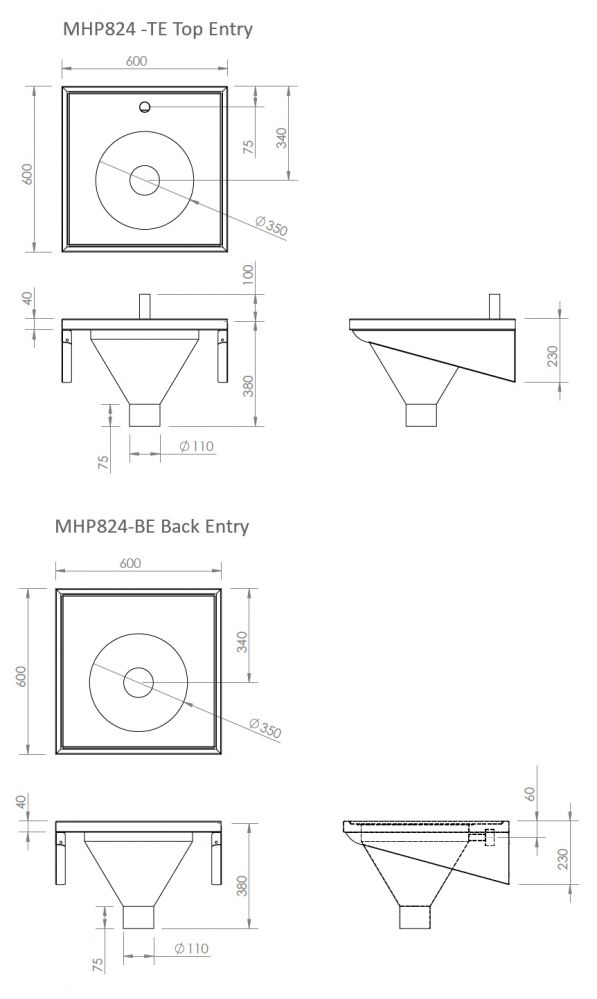

Sluice Sink Dimensions
- Height: 400mm
- Overall length: 600mm
- Front to back: 600mm

Cistern Dimensions
- Concealed: 505mm (W) x 312mm (H) x 150mm (D)
- Exposed: 455mm (W) x 318mm (H) x 155mm (D)

Optional Extras
- MHP-FL - front support legs

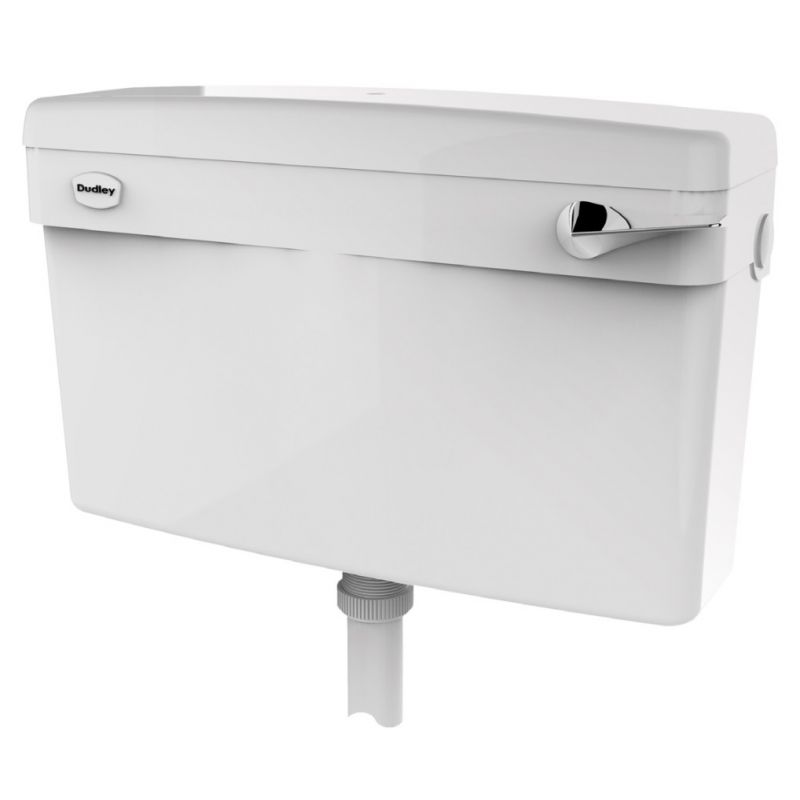

- SA-KWCCISTERN & SA-KWCFLUSHP - plastic exposed cistern and downpipe, lever operated - sold with MHP824 top entry unit with grating only
- WC142-LL-WL - plastic concealed cistern and downpipe, lever operated
- POLYPTRAP - 4" polypropylene P trap
- POLYSTRAP - 4" polypropylene S trap
- MHP-STRAINER - stainless steel sluice sink outlet strainer

FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
