Combination Drench Shower - All Stainless
Combination Drench Shower - All Stainless
Product Code: S2340-AS

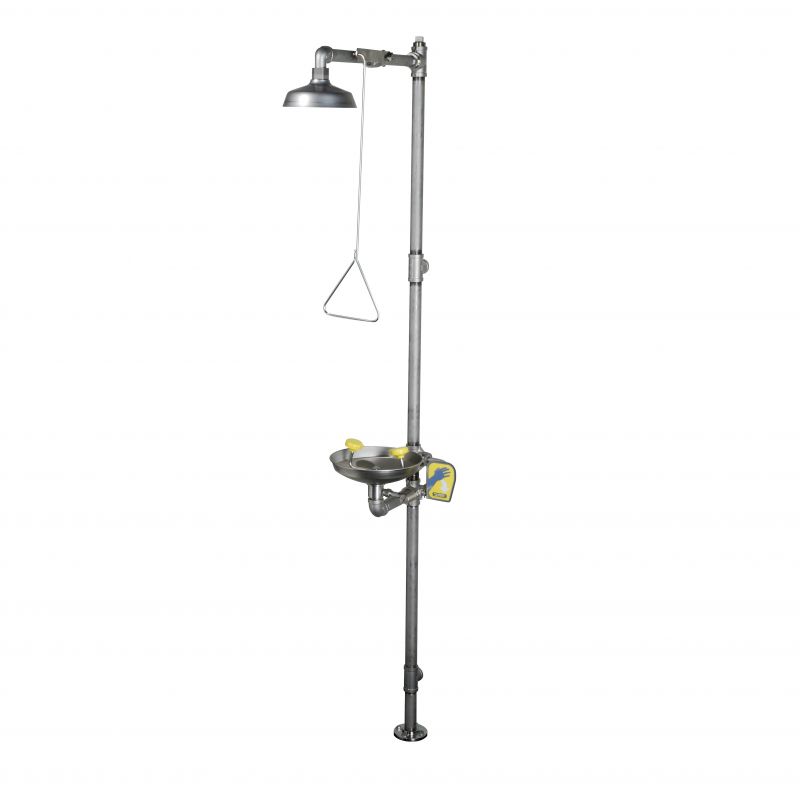

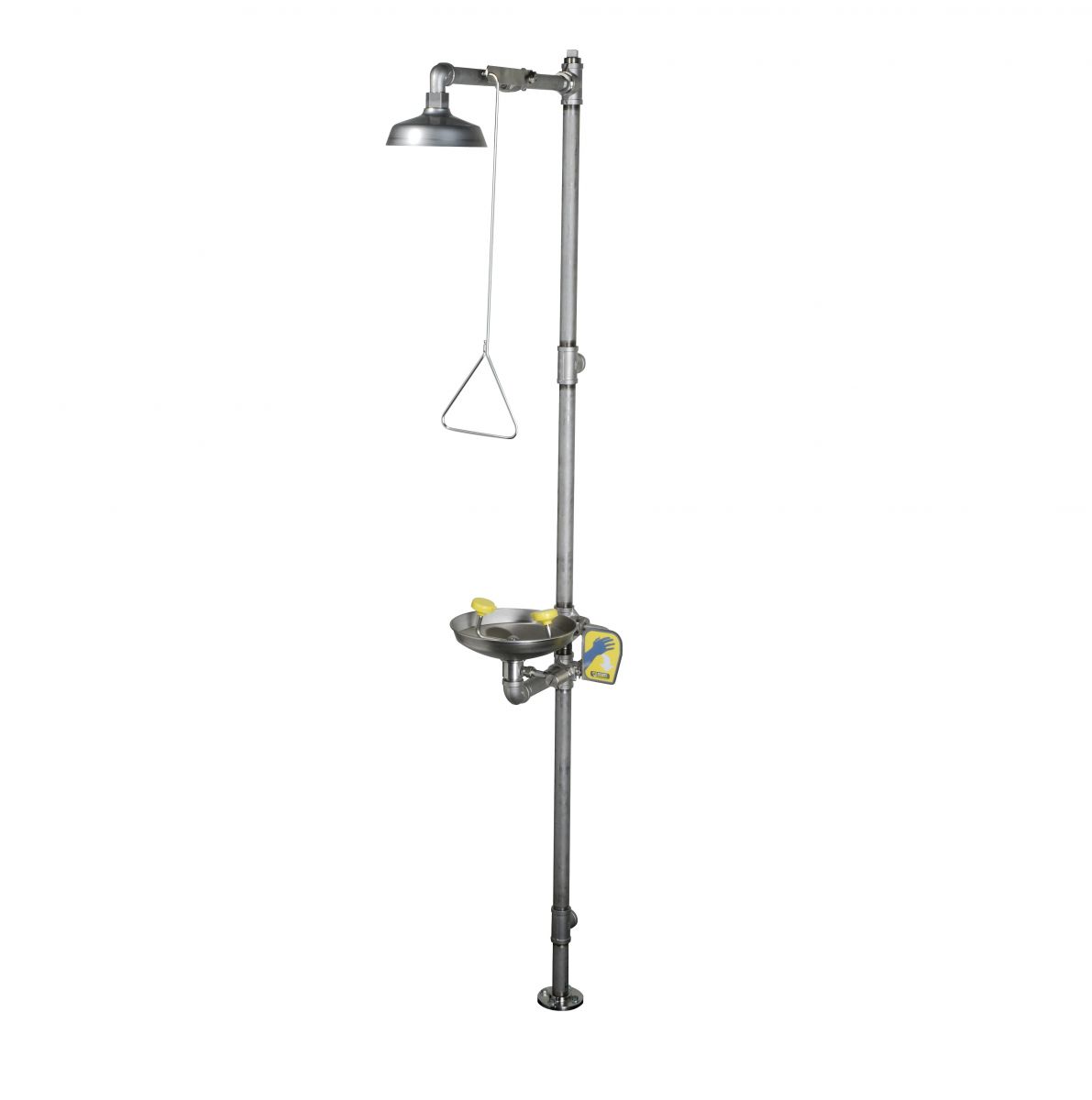

Model S2340-AS is our all stainless steel combined safety shower and eye wash with stainless steel head and yellow plastic spray heads. Complete with a 1" stainless steel stay open ball valve with stainless steel pull handle and activation lever for the shower and a 1/2" stainless steel stay open ball valve and stainless steel push handle for the eye wash.

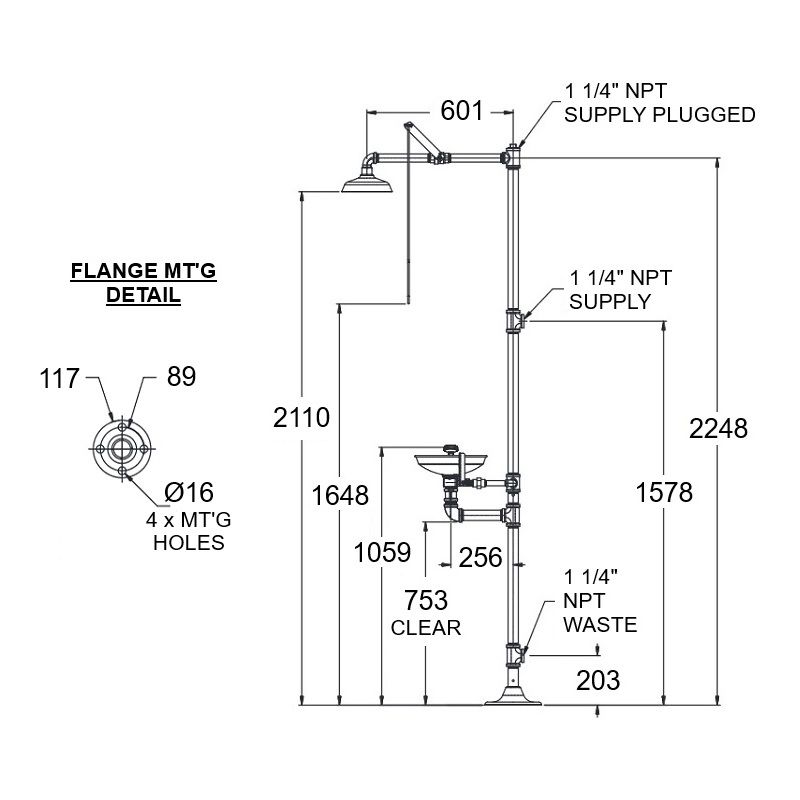

Dimensions
Full height: 2246mm
Projection from stand: 610mm
Eye wash height: 1648mm
Shower head diameter: 200mm
Eye wash bowl diameter: 300mm
Material and Specifications
Grade 304 stainless steel shower head, 200mm diameter

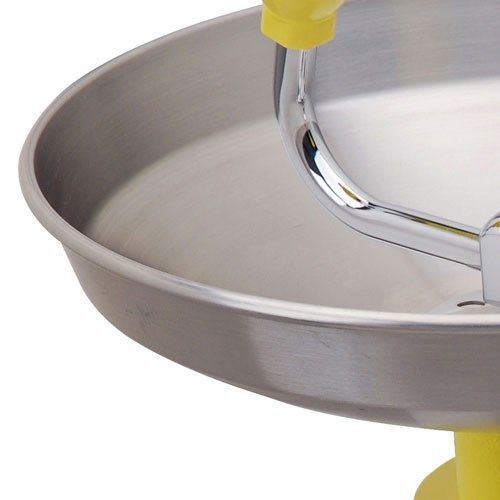

Grade 304 stainless steel eye wash bowl, 300mm diameter

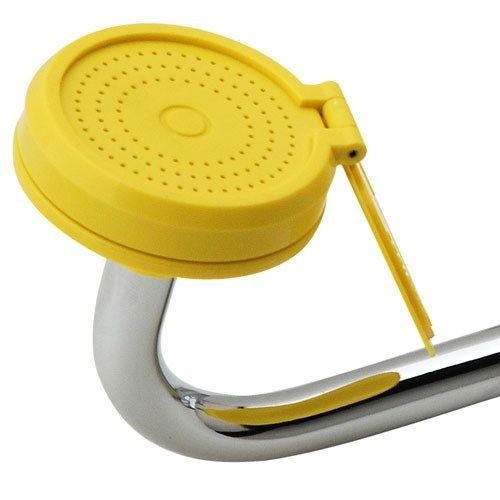

ABS yellow plastic eye wash heads, flip open dust covers, internal filters and flow controls
Grade 304 stainless steel pipework and floor flange
1" stainless steel stay open ball valve with stainless steel pull handle and activation lever
1/2" stainless steel stay open ball valve with stainless steel push handle
32mm waste fitting and flow rate 90 litres per minute
BSP adaptors are supplied for all NPT pipe connections
ANSI Z358.1 compliant, includes safety sign and weekly testing card
Delivery
In stock, 1 to 2 working days
