Combination Drench Shower - Plastic

Combination Drench Shower - Plastic

Product Code: S1320

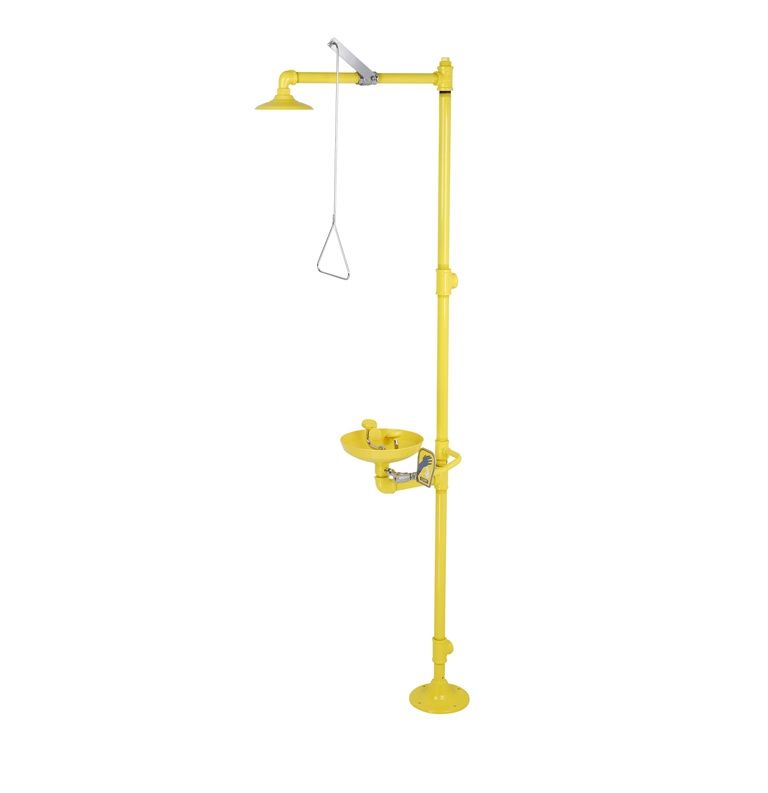

Model S1320 is our combined safety shower and eye wash with plastic head and bowl. Complete with yellow plastic spray heads and bowl and plastic shower head. Supplied with a 1" chrome plated brass stay open ball valve with stainless steel pull handle and activation lever for the shower and a 1/2" chrome plated stay open ball valve and stainless steel push handle for the eye wash.

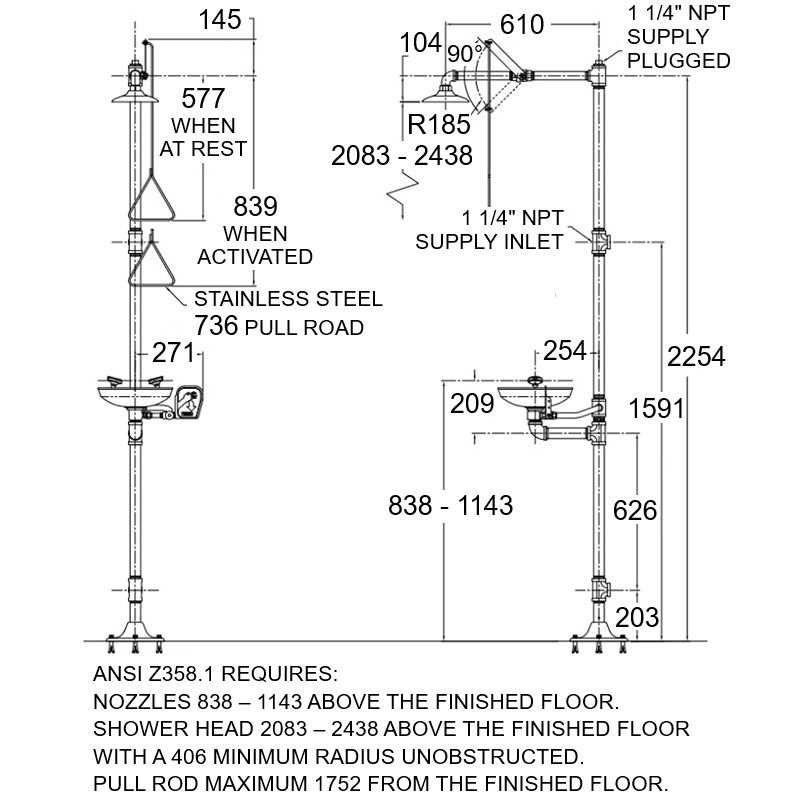

Dimensions

Full height: 2146mm
Projection from stand: 610mm
Eye wash height: 1648mm

Shower head diameter: 190mm
Eye wash bowl diameter: 300mm

Material and Specifications

ABS yellow plastic shower head, 190mm diameter

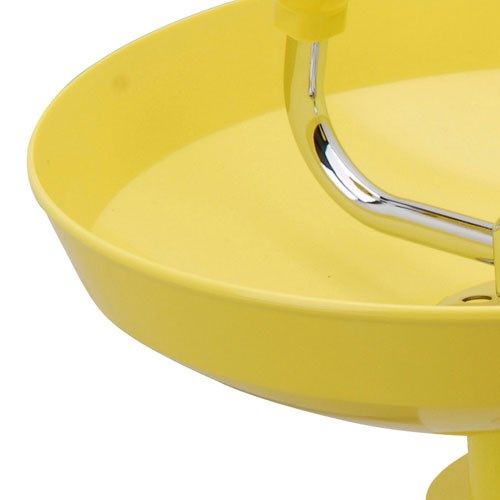

ABS yellow plastic eye wash bowl, 300mm diameter

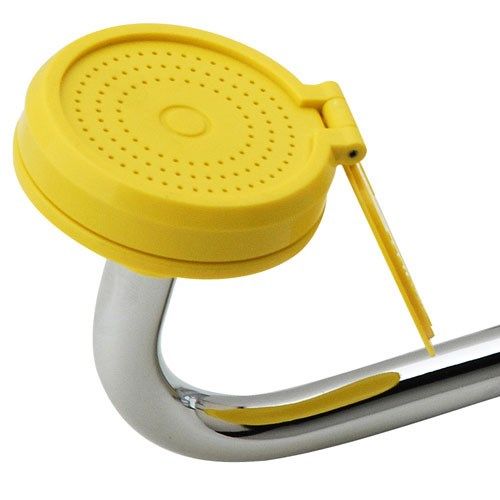

ABS yellow plastic eye wash heads, flip open dust covers, internal filters and flow controls
Yellow coated galvanised steel pipework and cast iron floor flange
1" chrome plated brass stay open ball valve with stainless steel pull handle and activation lever
1/2" chrome plated brass stay open ball valve with stainless steel push handle
32mm waste fitting and flow rate 90 litres per minute
BSP adaptors are supplied for all NPT pipe connections
ANSI Z358.1 compliant, includes safety sign and weekly testing card

Delivery

In stock, 1 to 2 working days

FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
