Combination Drench Shower - Outdoor

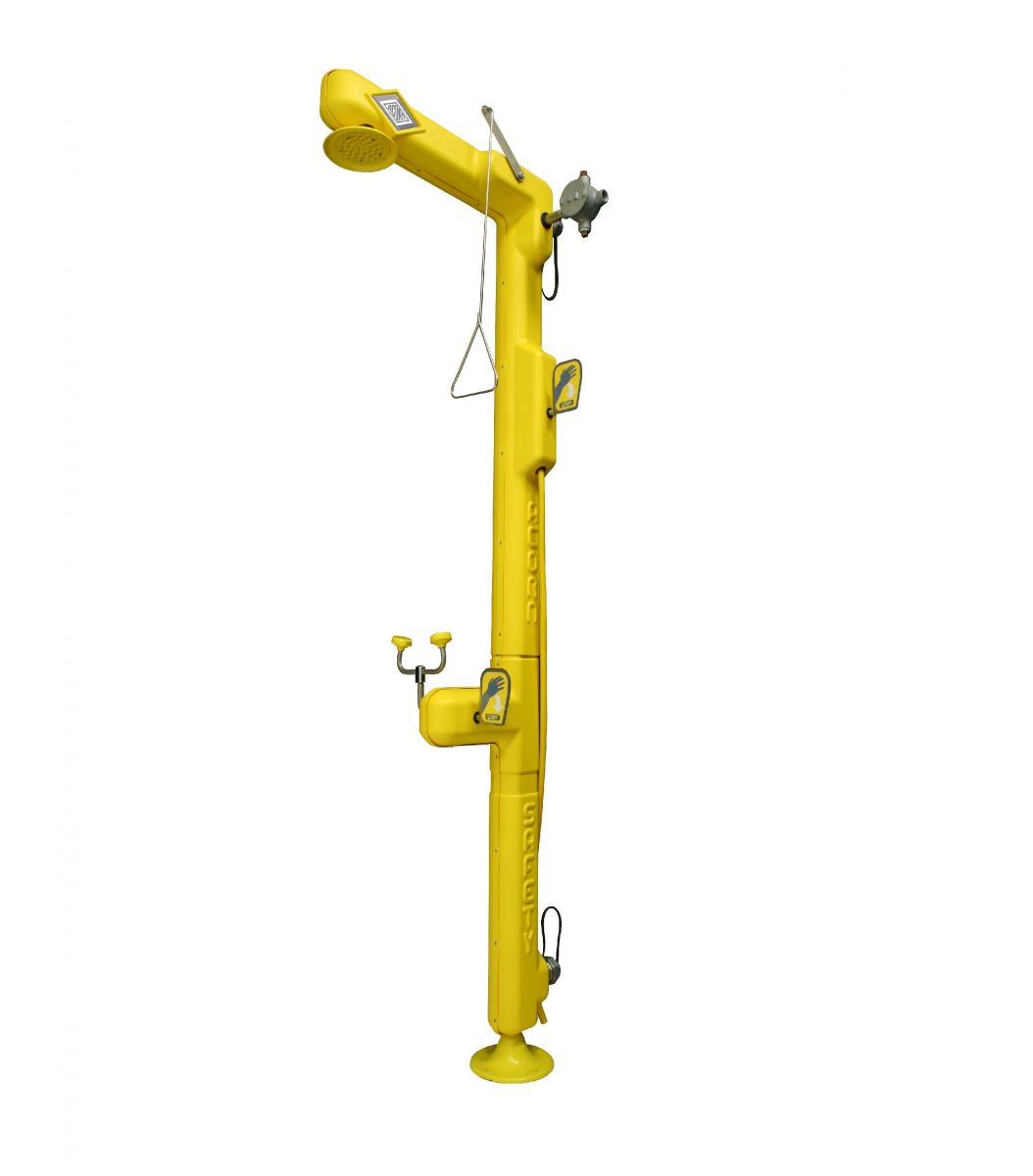

Model S1360-HT is a heat traced, pedestal mounted combination station, ideal for outdoor installations.

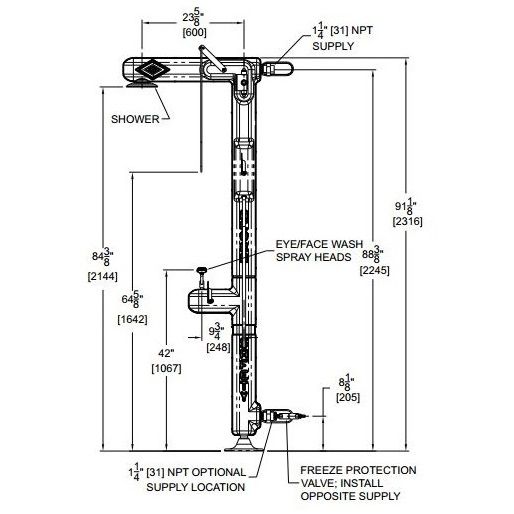

Dimensions

Full height: 2316mm
Projection from stand: 600mm
Eye wash height: 1642mm

Material and Specifications

Insulated and encased in a moulded ABS yellow jacket with heat traced cable wrapped around internal supply pipe
Thermostat for controlling the water temperature
ABS yellow plastic shower head
ABS yellow plastic eye wash heads, flip open dust covers, internal filters and flow controls
1" IPS chrome plated stay open ball valve with stainless steel pull handle and activation lever
1/2" IPS chrome plated stay open ball valve with stainless steel push handle
Flexible drench hose
ANSI Z358.1 compliant, includes safety sign and weekly testing card

Delivery

Manufactured to order, 14 to 16 working weeks

Optional Extras

AP-S0000-STK - safety shower testing kit
