Pedestal Eye Wash Foot Control
Pedestal Eye Wash Foot Control
Product Code: S0320-HFC

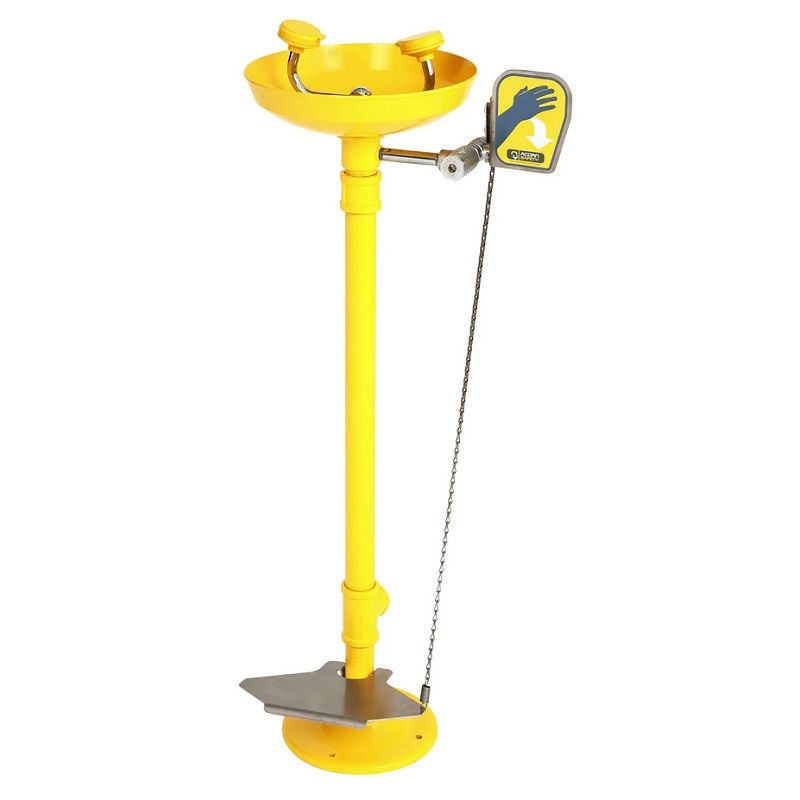

Model S0320-HFC is our free standing eye wash with foot control and plastic bowl. This unit is supplied as standard with plastic eye/face wash spray heads, an inline strainer and stay open 1/2" ball valve with a push handle. Compliant to ANSI Z358.1 standards, including safety sign and weekly testing card. Supplied with hand and foot control option giving the user a more operating flexability in an emergency situation.

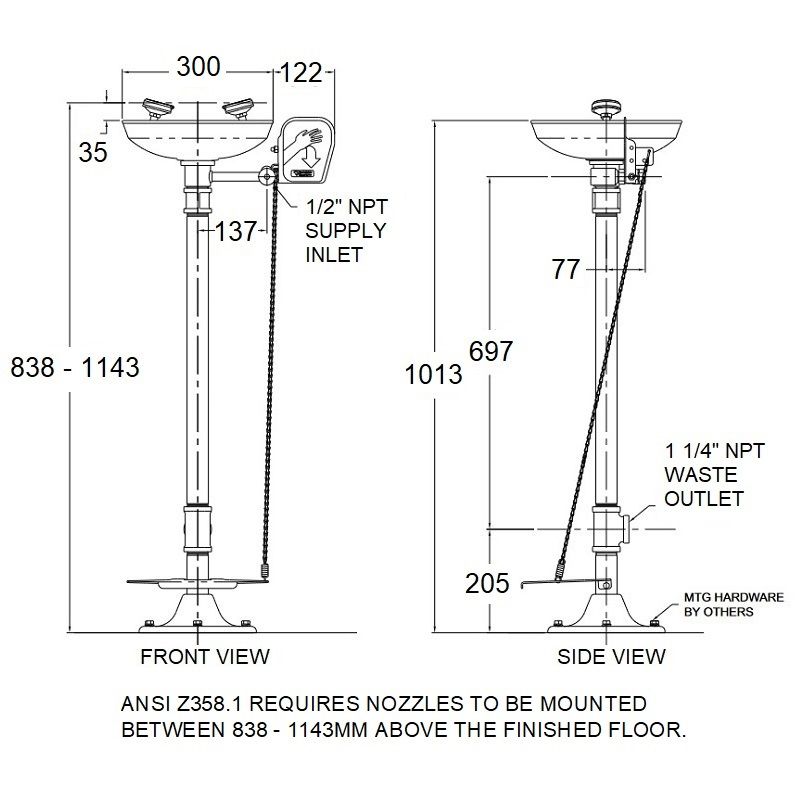

Dimensions
Height (spray head to floor): 1059mm
Height (bowl to floor): 1025mm
Diameter: 300mm
Material and Specifications
ABS yellow plastic bowl, 300mm diameter
ABS yellow plastic eye wash spray heads with flip open dust covers
1/2" chrome plated brass stay open ball valve with stainless steel push handle and foot pedal
Yellow coated galvanised steel pedestal and cast iron floor flange
32mm waste fitting
BSP adaptors are supplied for all NPT pipe connections
Internal filters and flow controls
Flow rate 14 litres per minute
ANSI Z358.1 compliant, inludes safety sign and weekly test card
Delivery
In stock, 1 to 2 working days
