Free Standing Eye Wash with Foot Control, Lid and Bowl

Free Standing Eye Wash with Foot Control, Lid and Bowl

Product Code: S0340-CS1-HFC

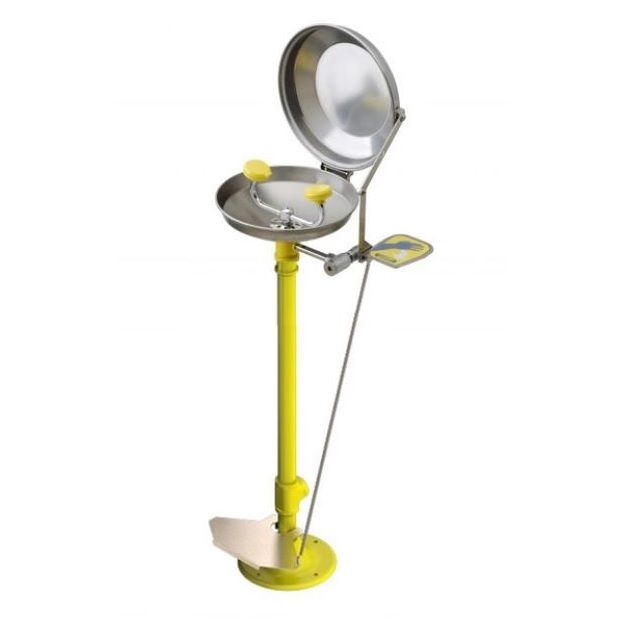

Model S0340-CS-HFC is our free standing eye wash with foot control, lid and stainless steel bowl. Complete with yellow plastic spray heads, chrome plated brass stay open ball valve and stainless steel clamshell cover. Push handle and foot pedal operated.

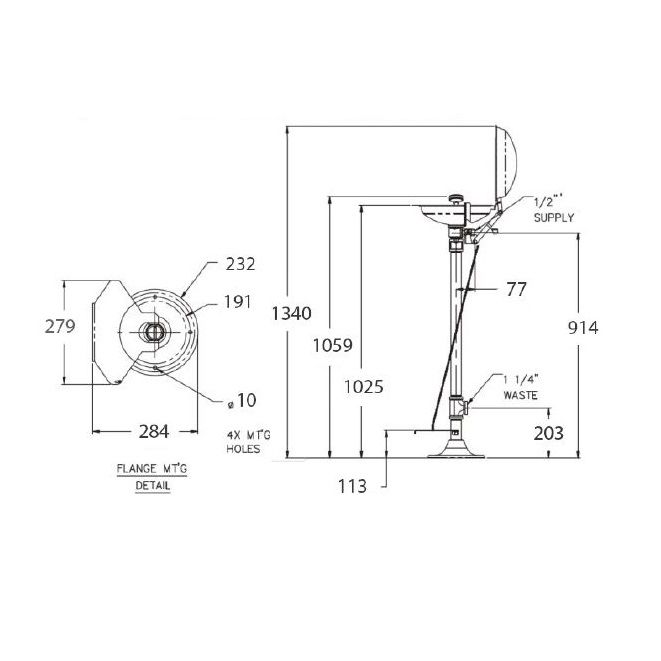

Dimensions

Height (spray head to floor): 1060mm
Height (bowl to floor): 1025mm
Diameter: 300mm

Material and Specifications

Grade 304 stainless steel bowl, 300mm diameter
Grade 304 stainless steel flip open clamshell cover/lid operated by the push handle an foot pedal
ABS yellow plastic eye wash spray heads with flip open dust covers
1/2" chrome plated brass stay open ball valve with stainless steel push handle
Yellow coated galvanised steel pedestal and cast iron floor flange
32mm waste fitting
BSP adaptors are supplied for all NPT pipe connections
Internal filters and flow controls
Flow rate 14 litres per minute
ANSI Z358.1 compliant, includes safety sign and weekly testing card

Delivery

In stock, 1 to 2 working days

Our products are tested and certified to meet applicable standards. Not all products are covered by the same standards.
Products maunfactured outside the EU may have been tested to local standards which may meet or exceed EU standards.
