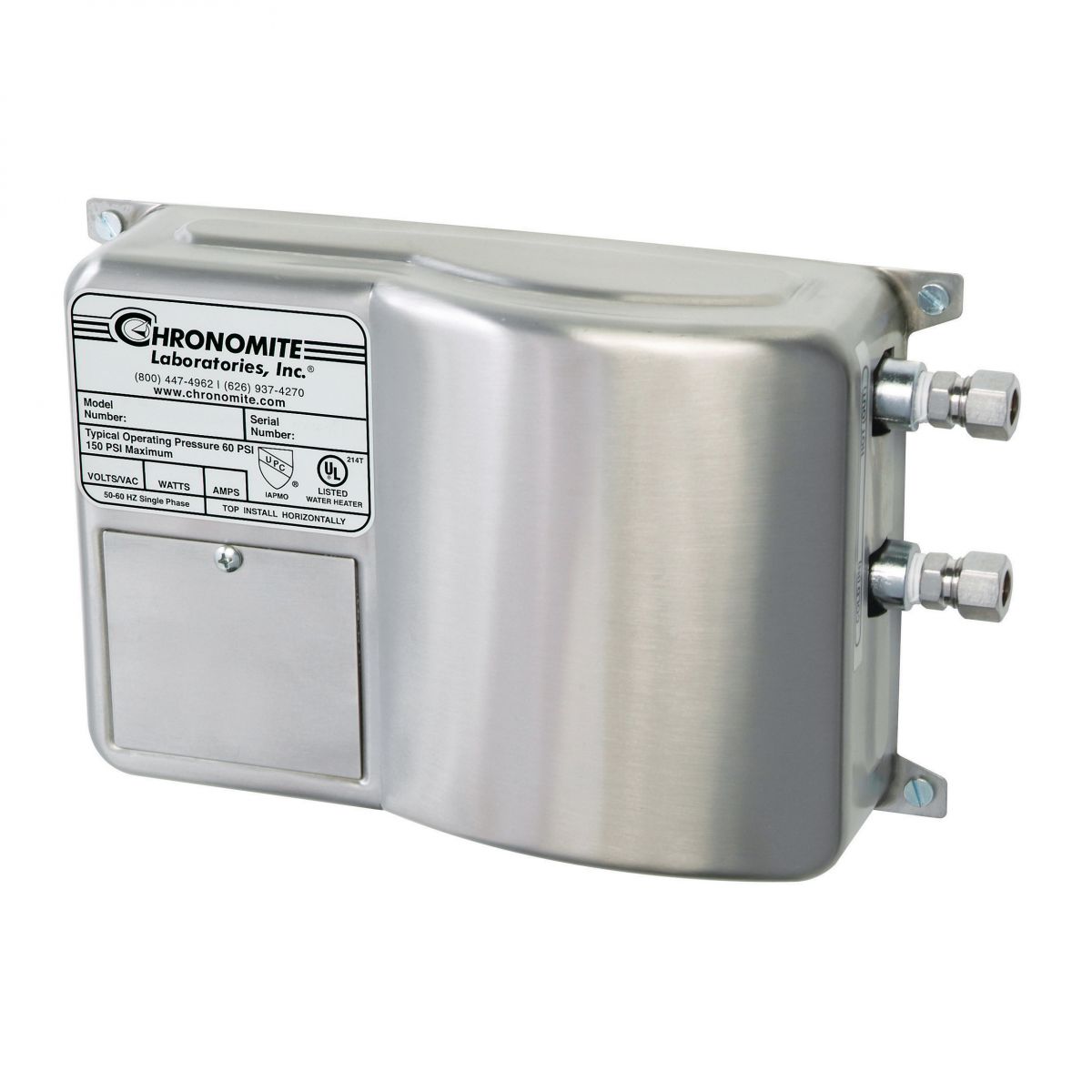

Instantaneous Water Heater For Eye Wash

Instantaneous point of use water heater ideal for use with eye wash fountains. Designed for non-continuous use it is perfect for installations where the unit will require warm water at short notice without the need to store warm water for long periods of time. Stainless steel casing with Celcon waterways and Ni Chrome heating coils.

The 2014 ANSI standards recommends that water supplied to eye wash units should be "tepid" and defines this temperature as being between 16-38°C (60-100°F). Temperatures higher than 38°C (100°F) are harmful to the eyes and can enhance chemical interaction with the skin and eyes. Temperatures lower than this will cause discomfort and prevent the user from keeping their eyes in the water stream.

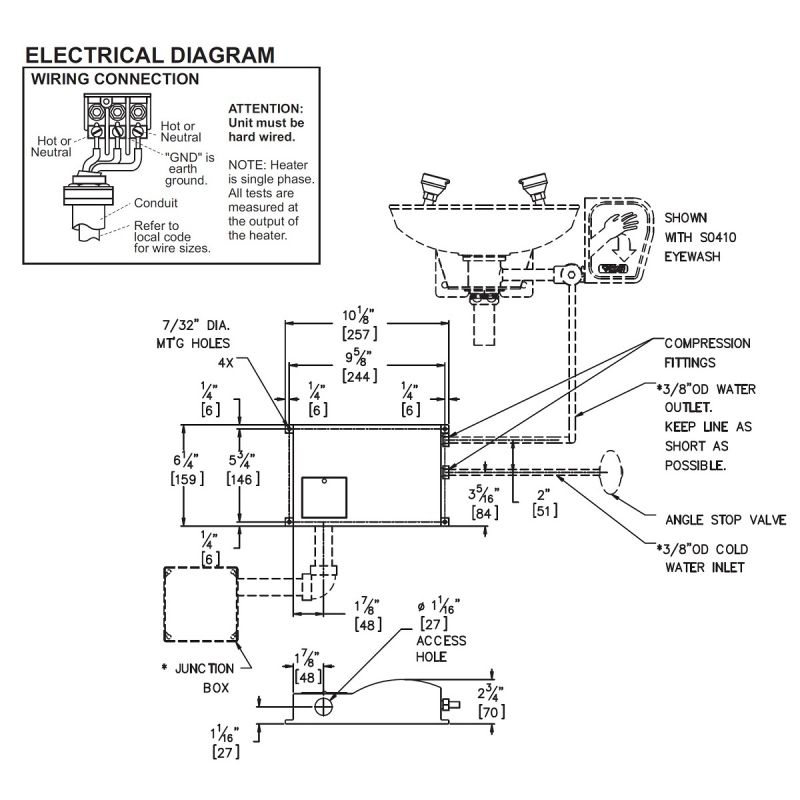

Dimensions

Height: 159mm
Front to back: 70mm
Width: 257mm

Material and Specifications

Stainless steel casing
Celcon waterways
Ni Chrome heating elements
3/8" inlet and outlets with 15mm adaptors
240v single phase
Minimum pressure: 45 psi
Maximum pressure: 150 psi
Minimum flow rate: 8.3 litres per minute
Factory preset to 27.5°C (82°F)

Delivery

To order, approx. 14 to 16 working weeks

FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
