Sports Shower Panel, Sensor Mains

Sports Shower Panel, Sensor Mains

Product Code: SH645-IRM

  • Sports Shower Panel, Sensor Mains
  • Sports Shower Panel, Sensor Mains

No documents uploaded.

Description

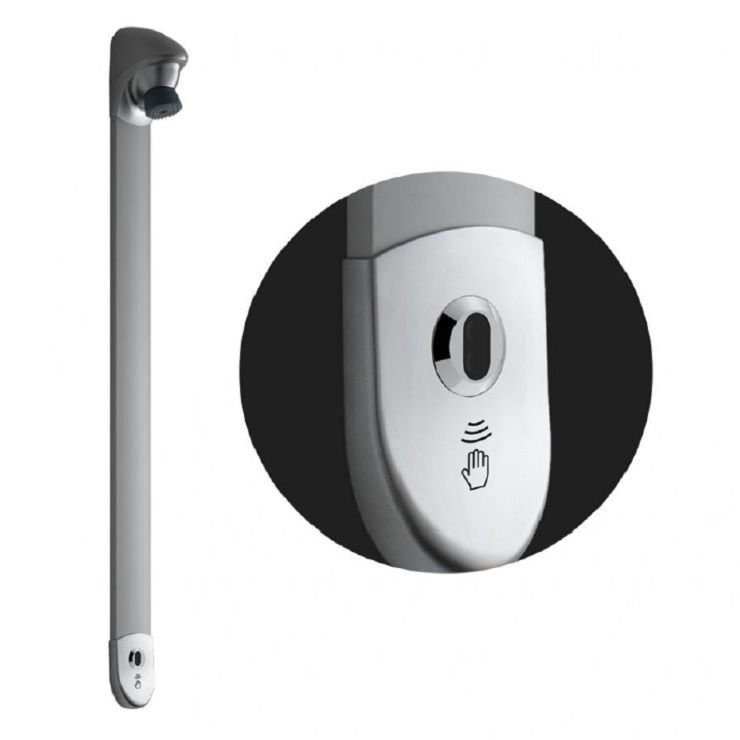

- Model SH645-IRM is a wall mounted sensor operated sports shower panel
- 220V / 7V main supply
- 30 seconds flow time, adjustable through PRESTOCOM
- Start/stop function, not possible during the first 10 seconds
- Detection range of the hand in front of the cell: 10cm
- Non visible fixings, slim panel and anti-fingerprint finish
- Designed and tested for intensive use: 500,000 cycles minimum
- Salt spray resistant for outdoor use
- Working pressure 1 to 5 bar
- Flow rate 6 to 8 litres per minute at 3 bar with integral flow regulator in the shower head
- Pipework designed to prevent water hammering
- Fixed shower head with rotatable shower spray and anti-limescale spikes
- Supply: G 1/2" (15x21) top water inlet with straight stop valve, for cold or premixed water
- Injected moulded body and metal cover
- Extruded profile in aluminium (magnesium-silicon alloy 6060)
- Resistant to a temperature of 75°C for 30-minute-thermal-shocks
- Patented anti-blocking "S" system to avoid the water flow running continuously from a fault or vandalism

Includes
- Mains transformer (240VAC to 7VDC)
- VBA screws and nylon plugs
- M G 1/2" - FG3/4" stop valve and filter adapted for 15mm pipework with compression fittings
- Instruction manual

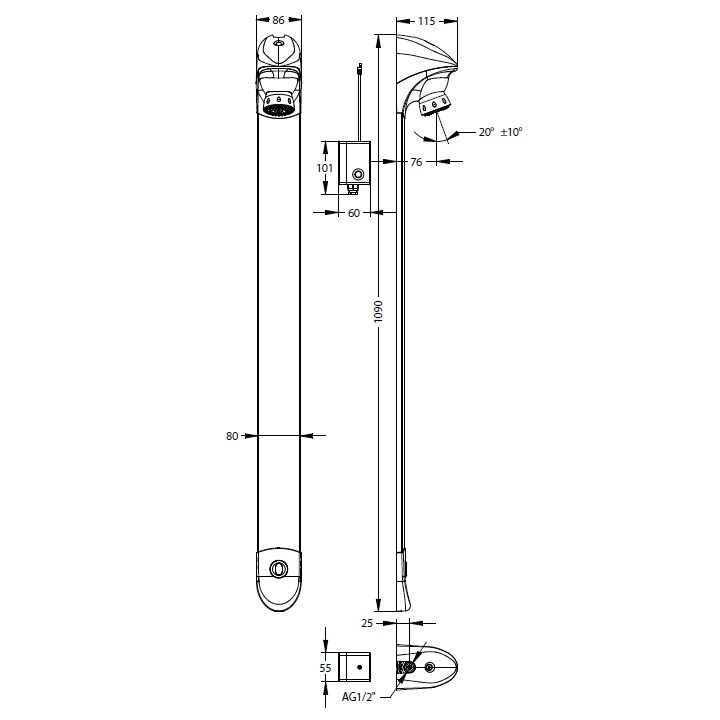

Dimensions
Height: 1090mm
Width: 86mm
Projection: 115mm

Standards & Approvals
- WRAS approved
- Acoustic class I
- Moulded chrome-plated body in accordance with EN 12540
- 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
- Brass UBA List compliant

Delivery
- In stock, 1 to 3 working days
