Wall Hung Trough Urinal
Wall Hung Trough Urinal
Product Code: UR060

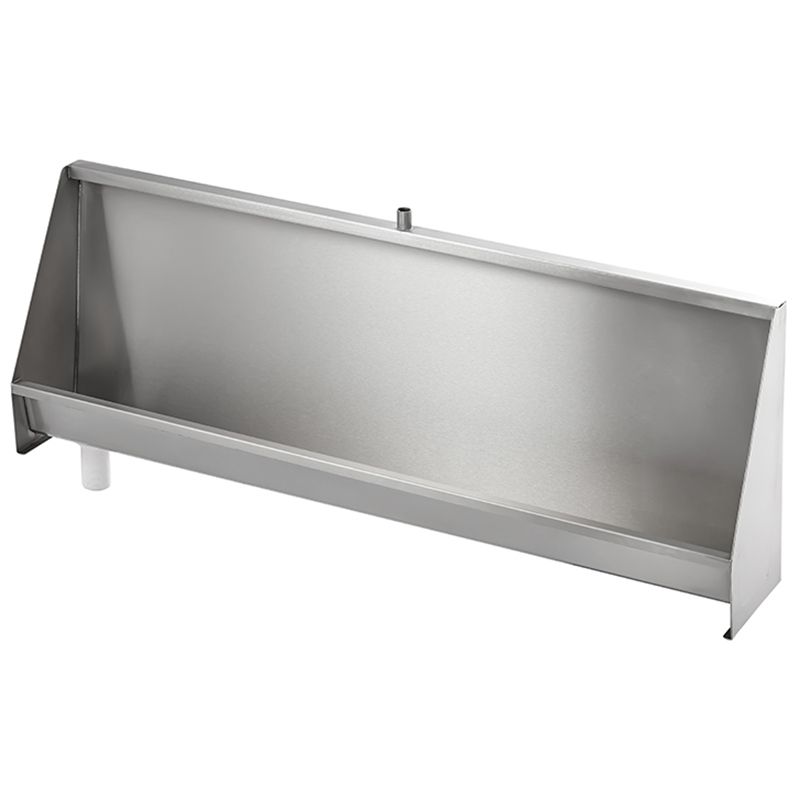

- Model UR060 is a stainless steel wall mounted urinal trough
- Cost effective solution compared to individual bowl urinals
- Easy to install and high durability
- Integral wall mounting points
- Concealed sparge flushing pipe fitted to urinal
- Manufactured in the UK from grade 304 stainless steel, 1.2mm thick
- Coloured version available, please see model C-UR060
Each Urinal Includes:
- 38mm BSP white plastic dome grated waste fitting
- Stainless steel 9 litre auto flushing cistern
- Stainless steel 22mm dia. downpipe (860mm long) & fixing clips
Stock Options
- Six standard sizes - 900mm, 1200mm, 1500mm, 1800mm, 2100mm and 2400mm
- Choice of left or right hand waste outlet
- Top entry connection for exposed cistern

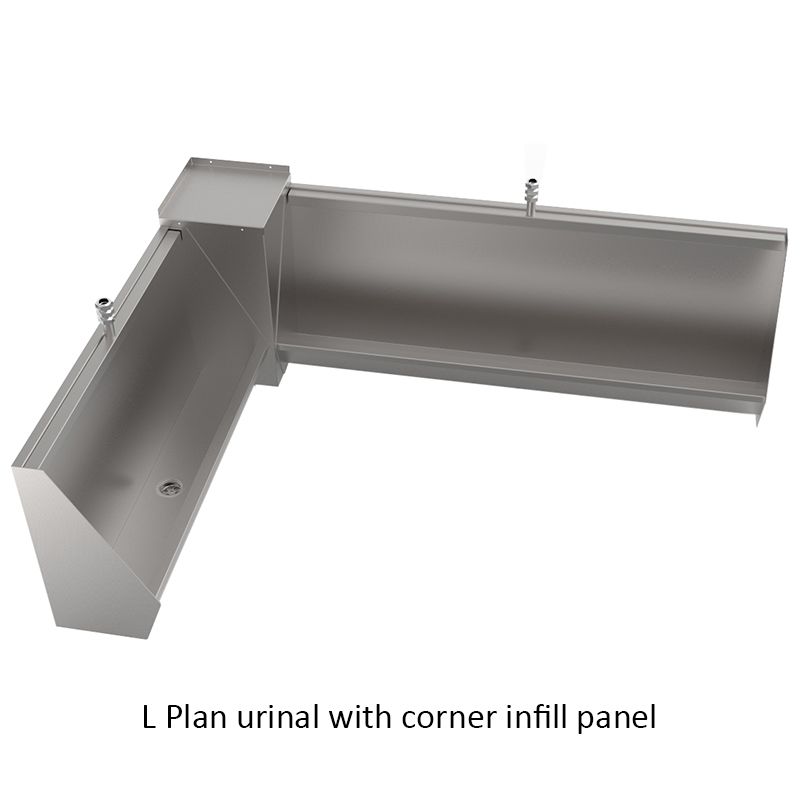

- Standard length L or U shape urinals with optional corner infill panel(s)
- Delivery 1 to 2 working days
Bespoke Options - Made to Order
- Any length up to and including 3000mm in one piece
- Central waste outlet
- Back entry connection for concealed cistern
- L and U shape urinals in special lengths with optional corner infill panel(s)

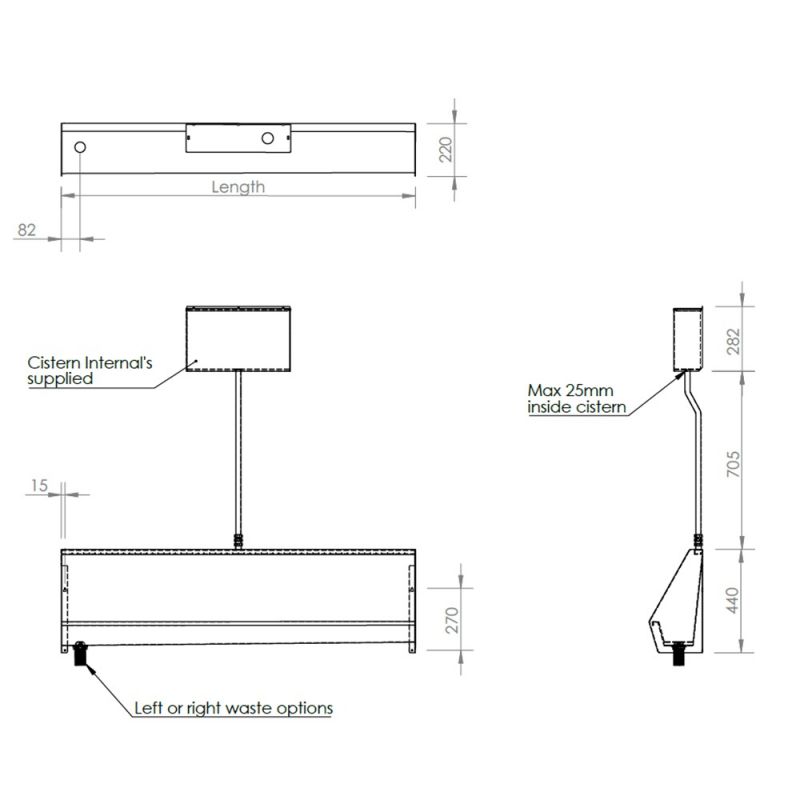

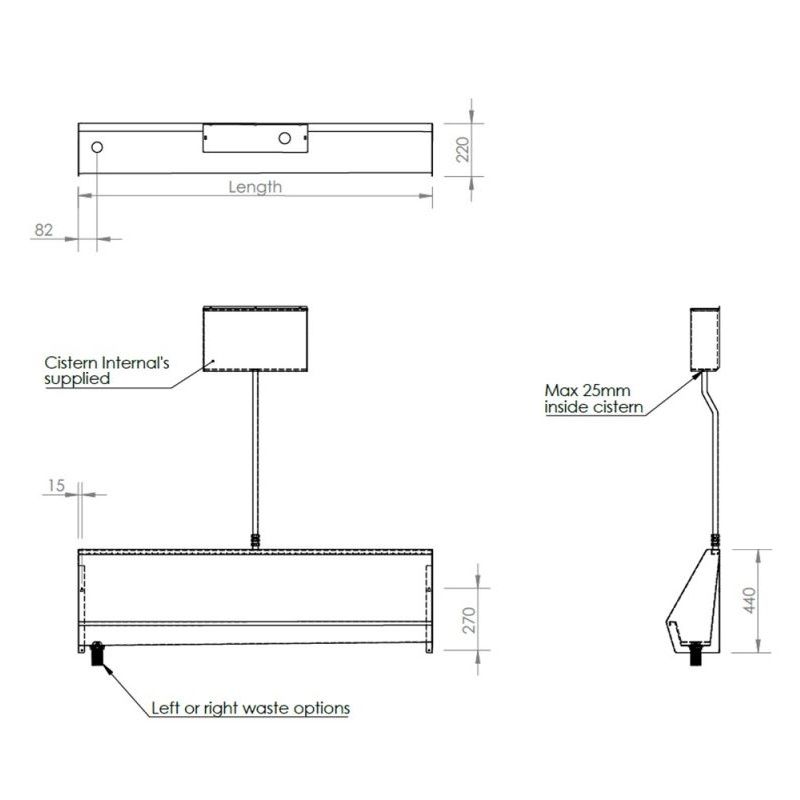

Dimensions
- Height: 450mm
- Front to back: 230mm
- Length: As ordered
- Cistern: 455mm long x 126mm projection x 280mm high
Weights
- 900mm: 17kg | 1200mm: 20kg | 1500mm: 22.5kg | 1800mm: 25kg | 2100mm: 27.5kg | 2400mm: 30kg
Mounting Heights (Recommended)
- From front lip to floor: adult 610mm | junior 510mm
Optional Extras

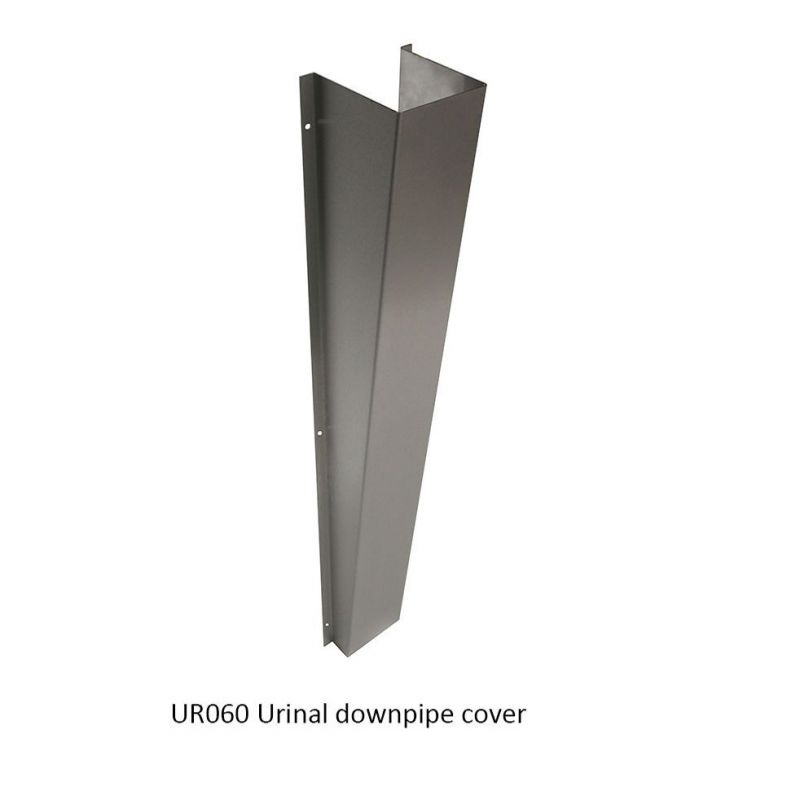

UR060-DPC - stainless steel down pipe cover

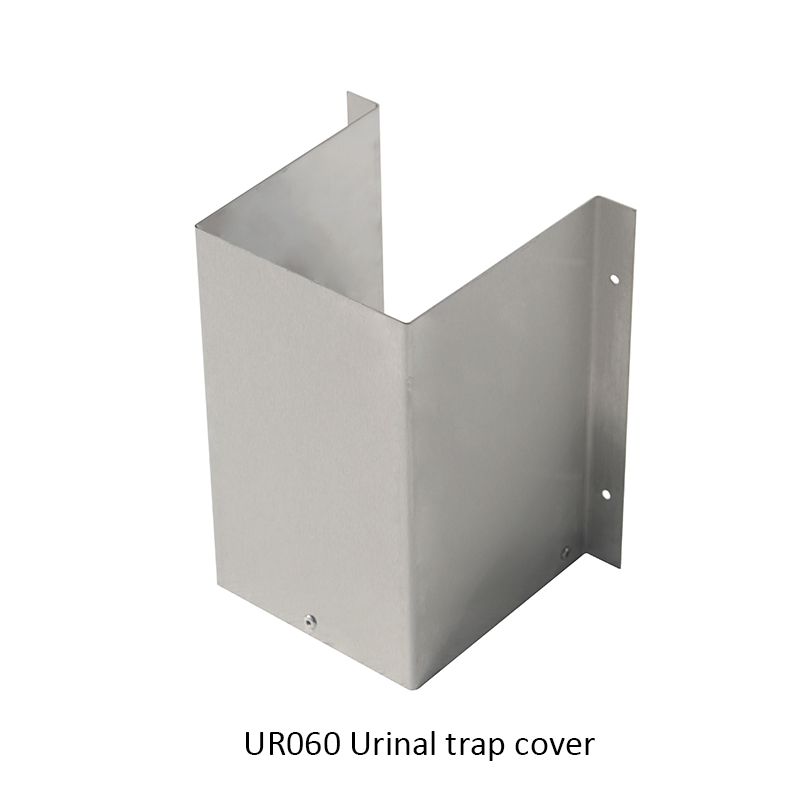

UR060-TC - stainless steel trap cover - 250mm (H) x 200mm (W) x 160mm (D)
UR060-CS - corner infill panel for L and U shape urinals
UR060-JCT - joint cover trim for adjacent urinals
LARGE-PLASTIC-BOTTLETRAP - 1.5" plastic bottle trap
LARGE-CHROME-BOTTLETRAP - 1.5" chrome plated bottle trap
MWB-B/M - Marnic water watch flush controller, battery or mains operated
FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
