Floor Recessed Slab Urinal

Floor Recessed Slab Urinal

Product Code: UR066

Description

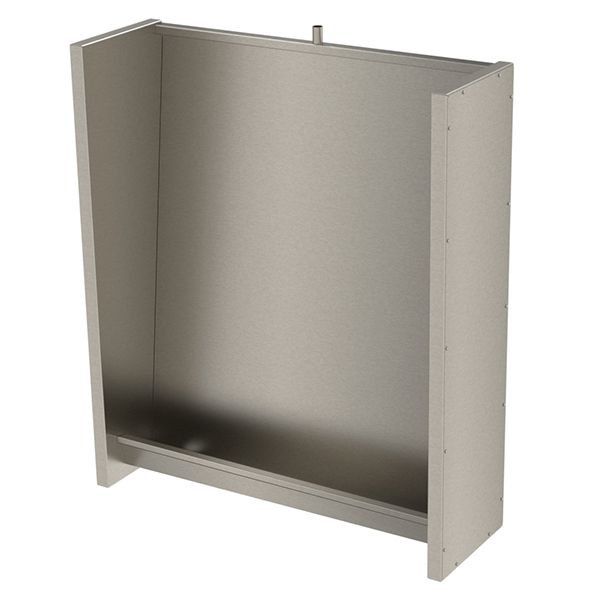

- Model UR066 is a stainless steel floor recessed slab urinal
- Manufactured in the UK from 1.2mm thick grade 304 stainless steel
- End panels suitable for leaving exposed or butting against side walls
- Vandal resistant square horizontal sparge pipe flushing system

Options
- Manufactured to order in any length up to 3300mm
- Choice of top entry connection for exposed cistern or back entry for concealed cistern
- L and U shape urinals with optional corner infill panel(s)

Each Urinal Includes
- Central 38mm (1.5") BSP white plastic dome grated waste fitting
- Plastic cistern (9.0L for 900-1500mm urinal | 13.65L for 1800-2400mm urinal)
- Stainless steel downpipe

Delivery
- Manufactured to order, usually 15 to 20 working days

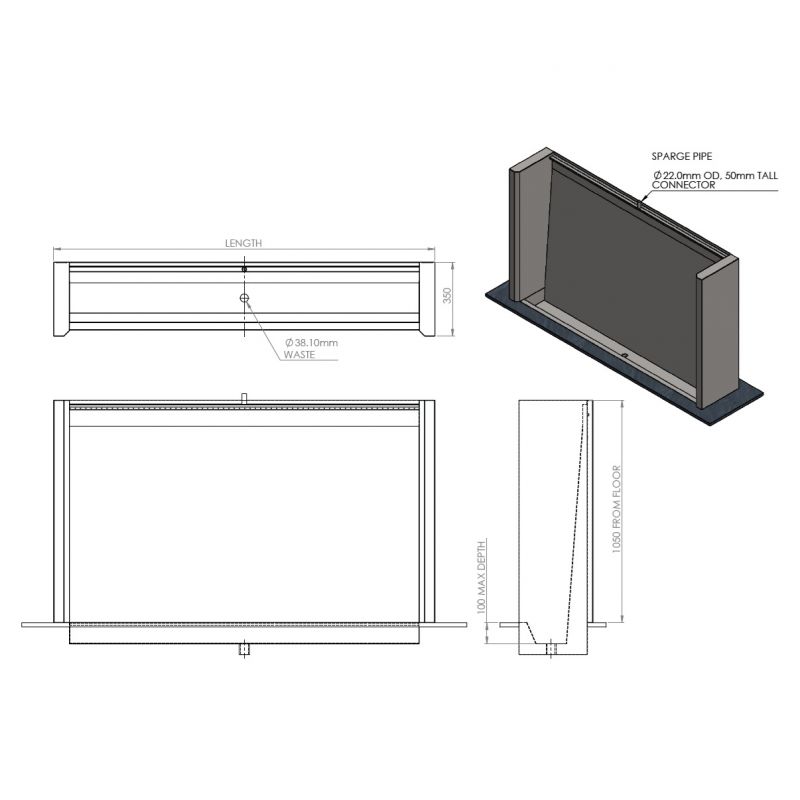

Dimensions
Height including recessed section: 1150mm
Projection: 30mm
Length: up to 3300mm in one piece

Optional Extras
MWB-B/M - marnic water watch flush controller, battery or mains operated
UR-1.5SSDW - Stainless steel urinal waste fitting
UR064-STAINLESS-9.0L-CISTERN - upgrade to stainless steel cistern (instead of plastic)
UR064-STAINLESS-13.65L-CISTERN - upgrade to stainless steel cistern (instead of plastic)
LARGE-PLASTIC-BOTTLETRAP - 1.5" plastic bottle trap

FOR ANY ENQUIRIES OR QUOTES CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
