Heavy Duty Wall Mounted Bottle Filling Trough

Description

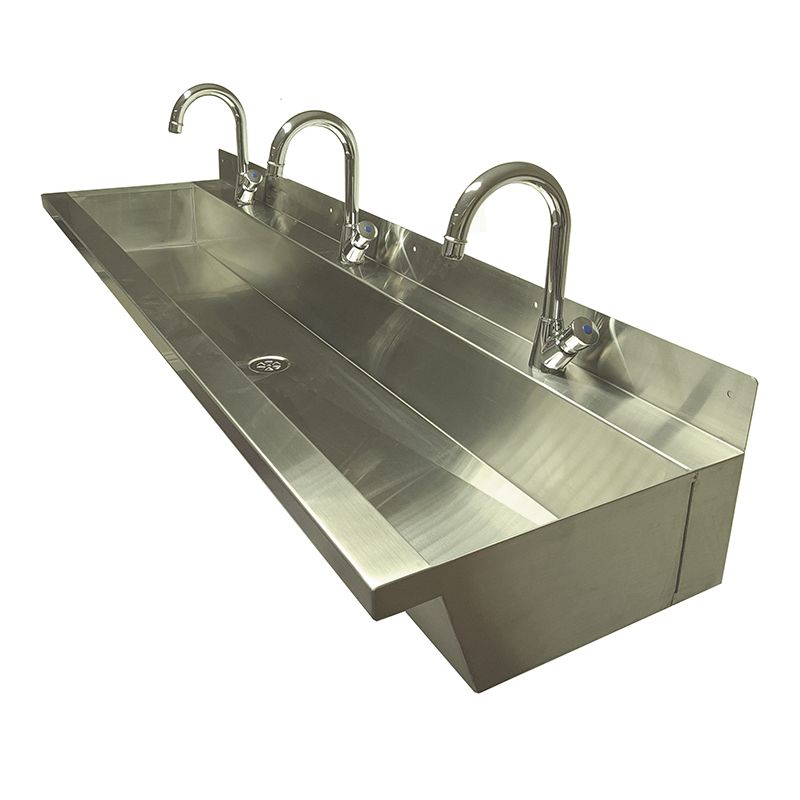

- Model BF915 is a wall mounted bottle filling trough constructed from grade 304 stainless steel, 1.6mm thick
- Cost effective solution for providing multiple bottle filling stations rather than individual bottle filling stations
- For heavy duty use

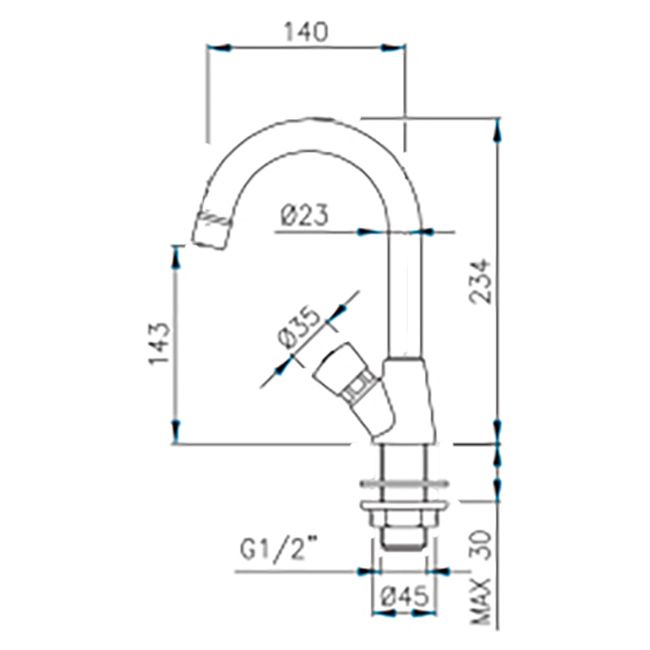

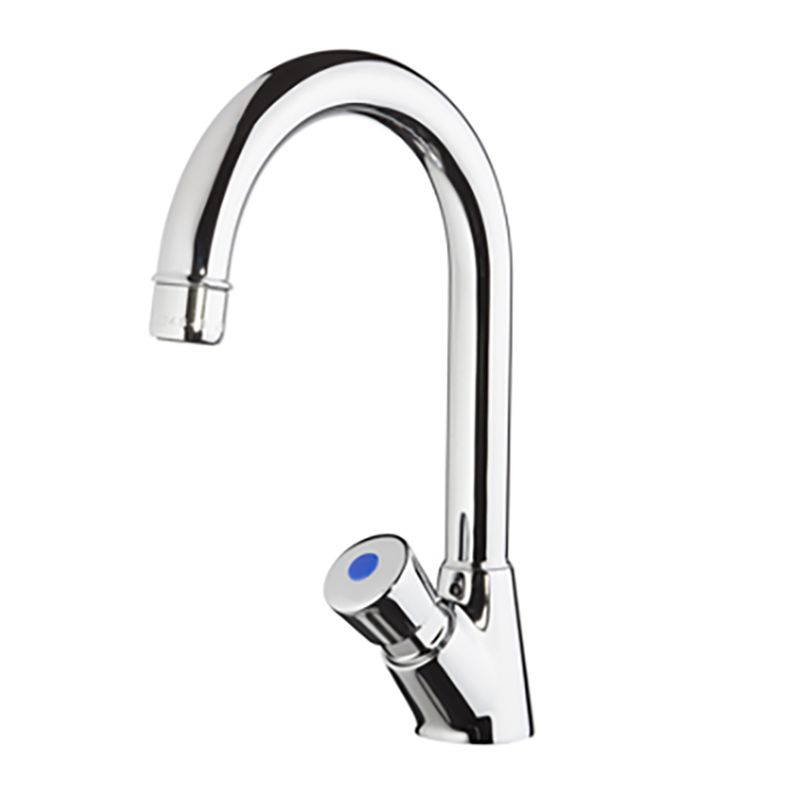

- Available with 3 or 4 vandal resistant bottle filling spouts (TVS9091SCBTFS)

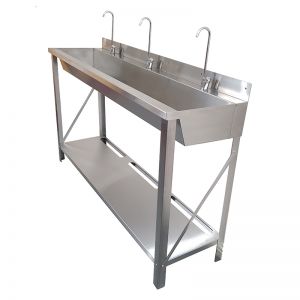

- Freestanding model also available (BF915-FRAME)
- To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.

Includes

- Integral wall mounting points
- Centre 38mm flush grated waste fitting included (no plug or overflow)

Delivery

- Limited stock available, usually 1 to 3 working days

Dimensions

This bottle filling trough can be supplied at different lengths to accommodate 3 or 4 bottle filling spouts

- Lengths available: 1500mm (3 bottle filling spouts) | 1800mm (4 bottle filling spouts)
- Height: 150mm
- Front to back: 400mm
- Rear upstand: 75mm
- Tap Ledge: 70mm

Where can this be installed?

- This bottle filling trough is ideal for locations where multiple users require bottle filling facilities at the same time
- Can be installed inside or outside
- Ideal for schools, colleges, gyms, factories etc
- If being installed in an environment where people may lean or sit on the trough, we recommend purchasing a pair of front support legs (see below) for extra support holding the trough up

Optional Extras

- WE-STANDARD-FL - Stainless steel front support legs (950mm unit height)
- WE-NURSERY-LEGS - Stainless steel front support legs (600mm unit height)
- LARGE-PLASTIC-BOTTLETRAP – 1.5" plastic bottle trap
- LARGE-CHROME-BOTTLETRAP – 1.5" chrome plated bottle trap
- TVS364116 - Y strainer double check valve
