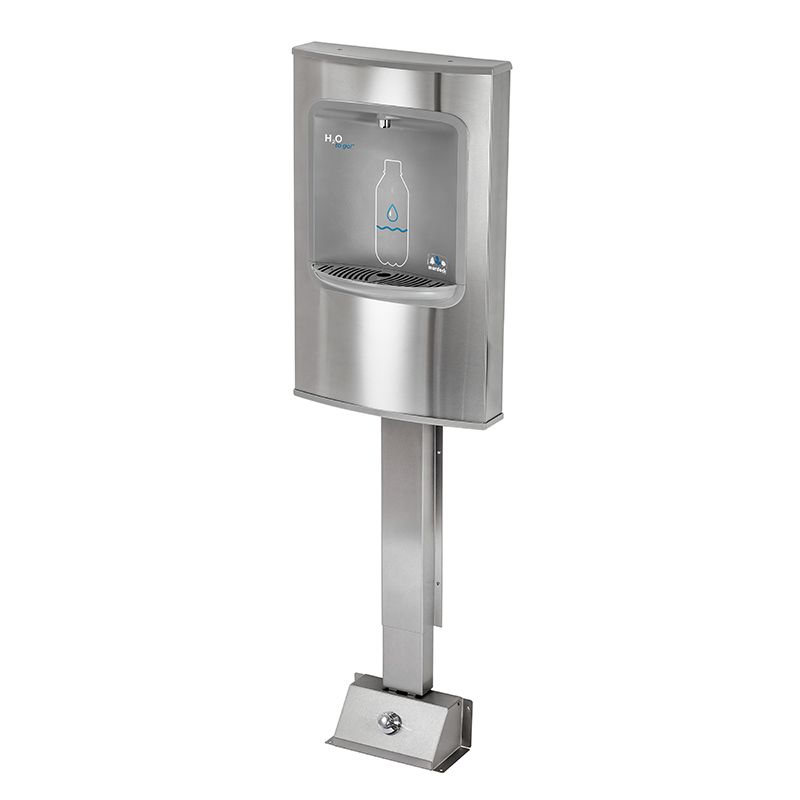

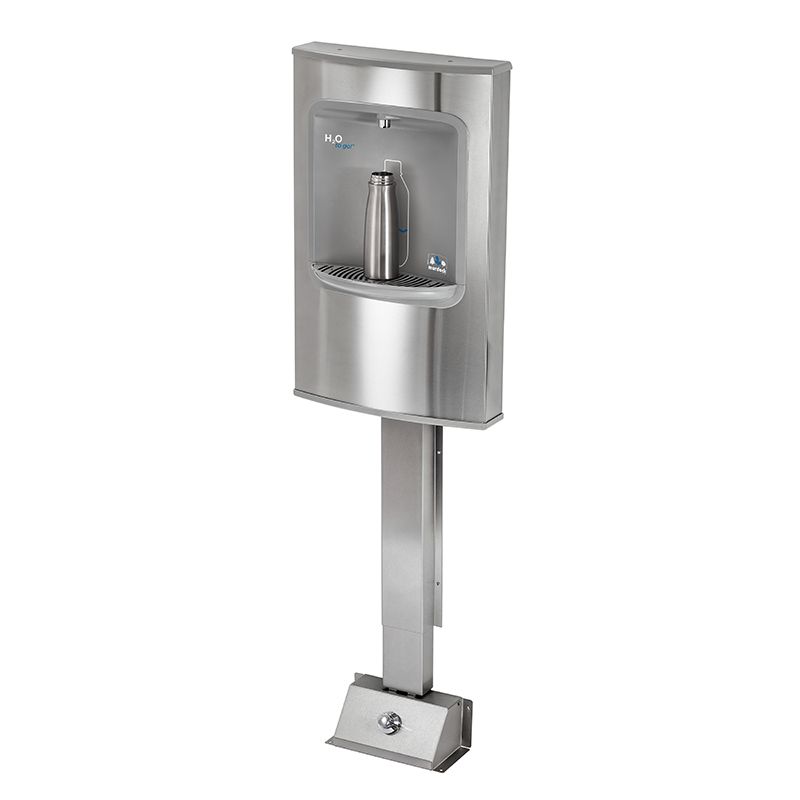

Foot Operated Bottle Filling Station

Description
- Model AQ-BF18-FOP is a no touch foot operated bottle filling unit
- Easy to operate with either foot
- Touch-free operation reduces the spread of germs and viruses
- Body manufactured from grade 304 stainless steel
- Bottle filling section manufactured from impact resistant ABS with antimicrobial coating
- Foot button housing and telescopic shroud to conceal pipework manufactured from stainless steel
- Wall mounted design, secured to wall with fixing holes in the backplate
- Laminar flow spout to prevent splashing
- 4.5 litre per minute flow rate
- Water saving on / off operation
- Sleek design to reduce projection into the corridor or room
- 32mm waste fitting with plastic P trap
- Hinged fold down fascia simplifies installation and maintenance
- Ideal for filling re-usable water bottles and reducing plastic waste in schools, gyms, leisure centres and public areas
- Mains water fed, designed for water supply and waste through the back wall
- WRAS approved water fittings
- To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.

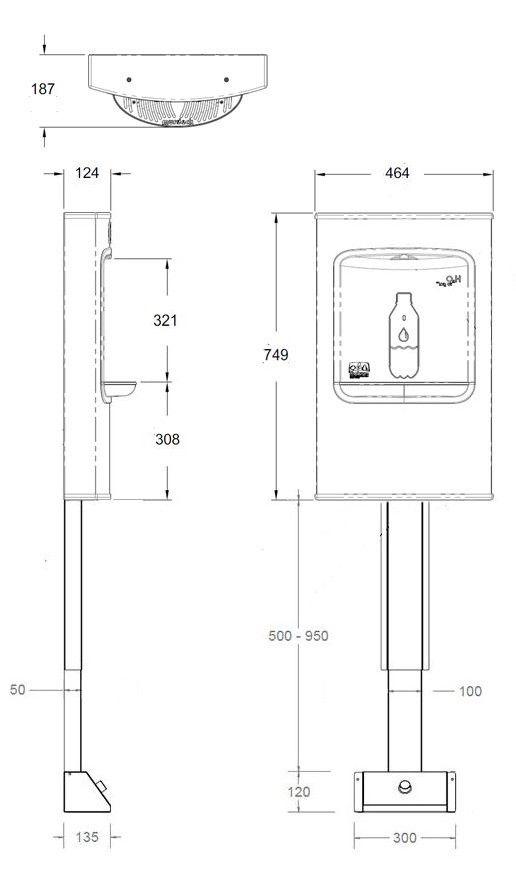

Dimensions
- Height: 749mm
- Width: 464mm
- Body Front to Back: 124mm
- Bottle Filler Tray Front to Back: 187mm
- Footplate Width: 300mm
- Footplate Projection: 135mm
- Telescopic Shroud: 500 - 950mm

Delivery
- From stock, usually 1 to 2 working days

Optional Extras
- TVS364116 - Y strainer double check valve
