Foot Pedal Operated Drinking Fountain

Description

- Model DF461-PEDAL is our hands free pedal operated drinking fountain
- Can be wall mounted at any height to suit all users
- Hands free operation helps prevent the spread of germs and viruses
- Grade 304 stainless steel, 1.6mm thick providing greater vandal resistance and durability
- Bubbler valve is situated on a raised platform to make sure the tap connection is above the spill over level of the bowl
- Integral rear upstand to protect the wall
- WRAS approved water fittings
- Wall or floor mounted foot pedal water valve and no touch chrome plated drinking outlet
- Rounded front for safety
- Easy to install
- To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.

Includes

- WRAS approved drinking water bubbler outlet
- WRAS approved foot valve (wall or floor mounted)
- On / off operation to save water
- Concealed wall mounting bracket
- 32mm flush grated waste fitting

Delivery

- From stock, usually 1 to 3 working days

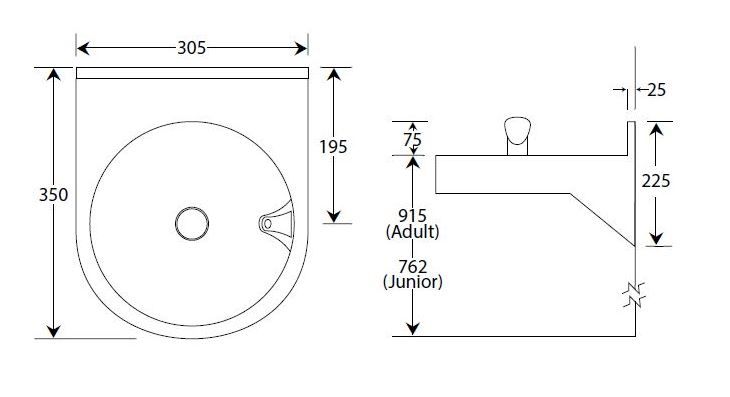

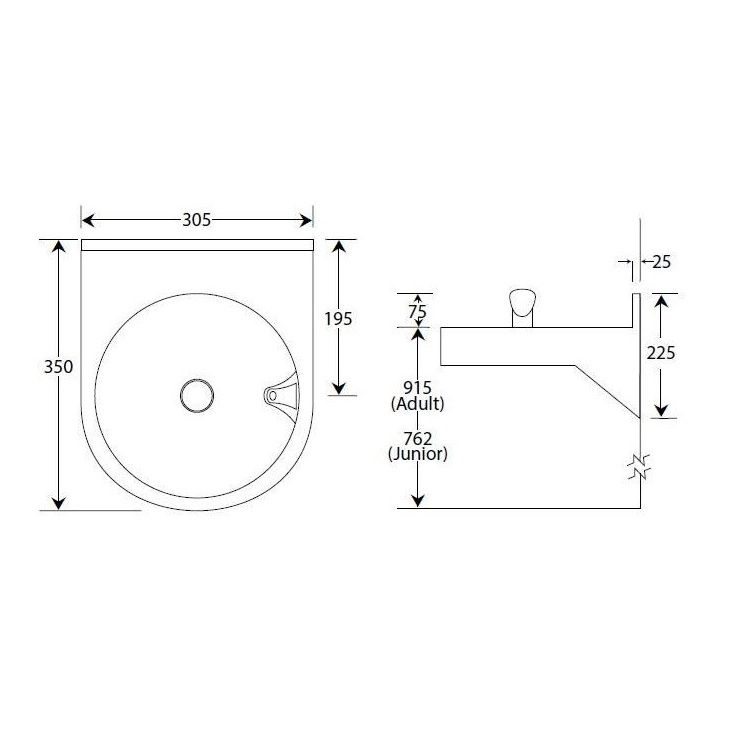

Dimensions

- Height: 225mm
- Width: 305mm
- Depth: 350mm
- Upstand height: 75mm
- Upstand thickness: 25mm

Recommended mounting heights:

- Adult: 915mm
- Junior: 762mm

Where can this be installed?

- Can be installed outside if drained down in the colder weathers to prevent damage to the valve and bubbler

- Schools, colleges, universities, gyms, factories, offices

Optional Extras

- SMALL-PLASTIC-BOTTLETRAP – 1.25” plastic bottle trap
- SMALL-CHROME-BOTTLETRAP – 1.25” chrome plated brass bottle trap
- TVS364116 - Y strainer double check valve
