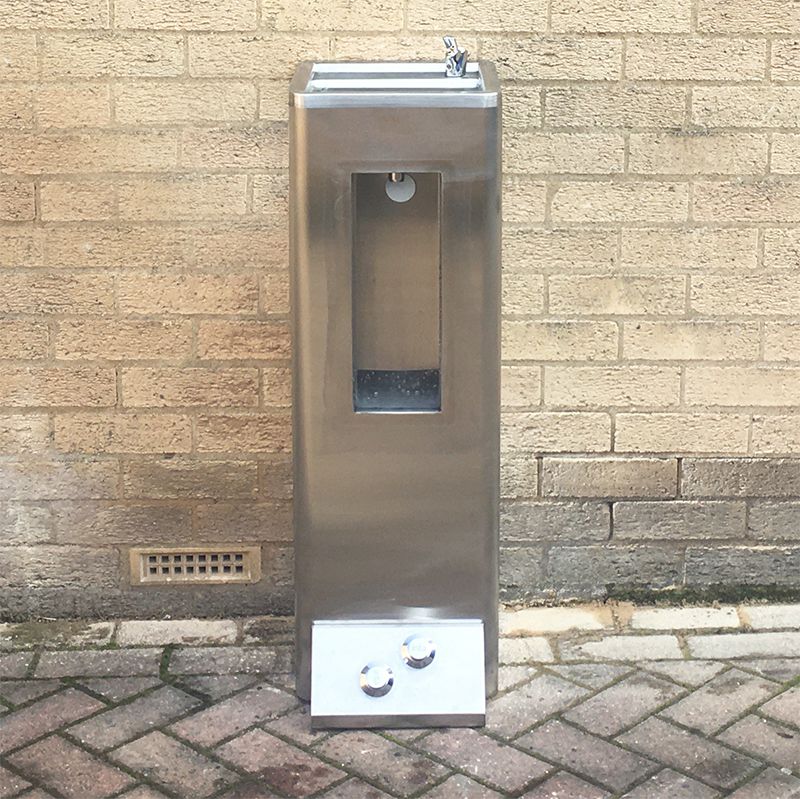

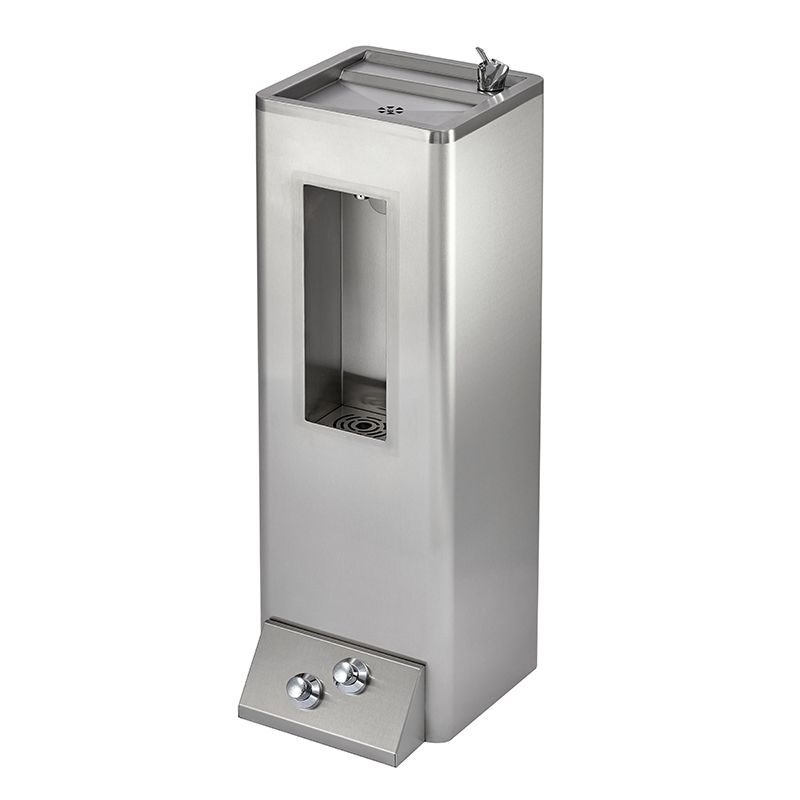

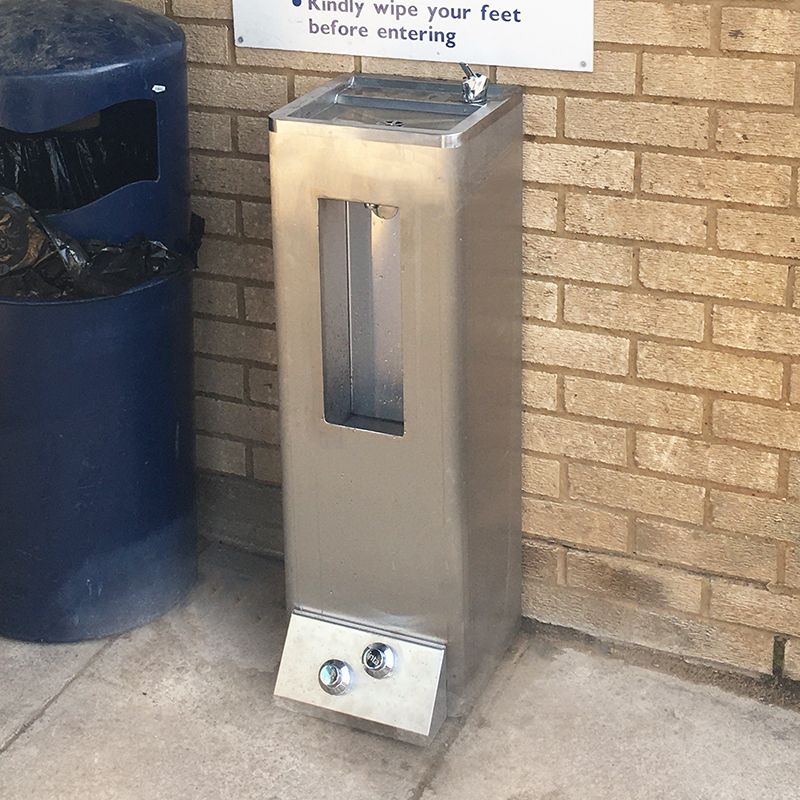

Drinking Fountain & Bottle Filler - Foot Operated

Drinking Fountain & Bottle Filler - Foot Operated

Product Code: BF904

Description

- Model BF904 is our foot operated drinking fountain and bottle filling station
- Dual function unit providing a drinking water fountain with a convenient recessed bottle filling station below
- WRAS approved water fittings
- Grade 304 stainless steel, 1.2mm thick
- Rounded corners for safety
- Bubbler tap is operated by foot valve and is positioned for ease of use towards the rear of the top section
- The bottle filler is activated by foot valve and water is dispensed from an outlet in the top of the bottle filling recess
- This unit has rear access for connection to services with a lockable side access panel
- Foot operation reduces the risk of cross contamination from touching the controls with your hands
- To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.

Includes

- WRAS approved water fittings
- Separate foot controls for the fountain and the bottle filler
- 32mm flush grated waste fitting  to fountain and bottle filler
- Flexible waste pipes
- (Fittings will require some site assembly)
- Wall and floor fixing points
- Side access panel with lock and key
- Large rear cut out for connection to services

Delivery

- Stock item 1-2 working day lead time

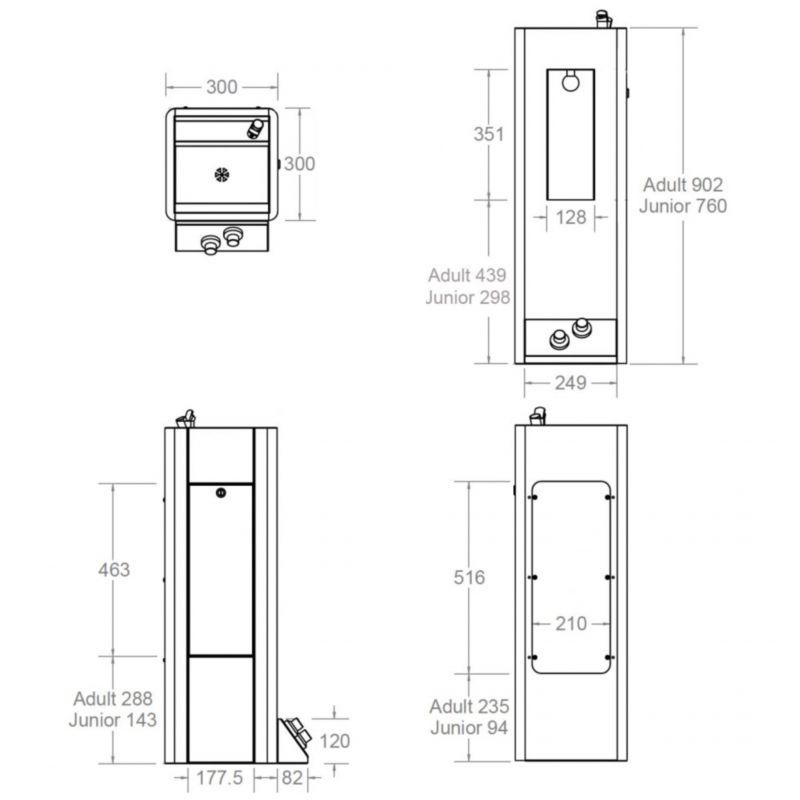

Dimensions

- Height: 900mm
- Width: 300mm
- Depth: 300mm
Bottom of tap to drip tray height: 290mm

Where can this be installed?

- Can be installed outside if drained down in colder weathers to prevent the water freezing
- Schools, colleges, universities, gyms, factories, offices

Optional Extras
TVS364116 - Y strainer double check valve
