Junior Height Drinking & Bottle Filling Station

Description

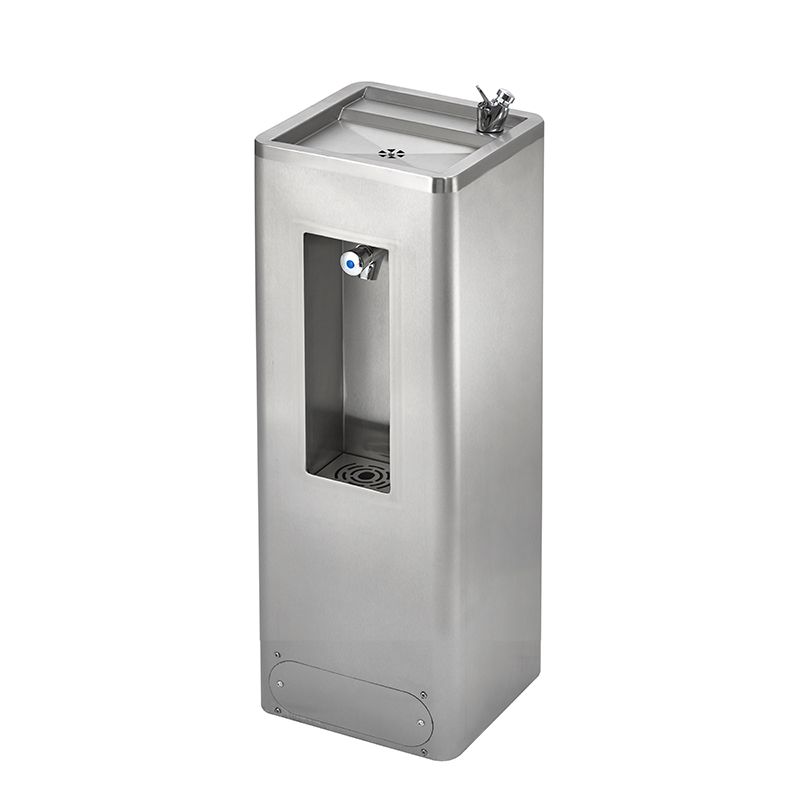

- Model DF454 is our junior height stainless steel drinking fountain with built in water bottle filling station
- Versatile design allows this unit to be mounted against a wall or free standing
- Grade 304 stainless steel, 1.2mm thick, matt polished finish
- Bottle filling opening sized to take all common 0.5, 0.75 and 1.0 litre bottles
- Rounded corners for safety
- Wall and floor mounting points with a full height shroud to conceal all plumbing
- Bottle filling station is recessed into the unit to prevent vandalism usually associated with swan neck bottle fillers
- Large rear opening for connection to services
- Lockable side door on left hand side for access to the plumbing connections and fixing points
- Suitable for outdoor use providing the water is isolated and drained down during adverse weather conditions (freezing temperatures)
- 1/2 inch threaded connections on both the drinking fountain bubbler and bottle filling tap
- To maintain the correct operation and extend the lifespan of this unit, a Y-strainer or filter must be included in the water supply system. The Y-strainer / filter plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer or filter will void the warranty.

Includes
- WRAS approved press button drinking fountain bubbler tap, on/off operation
- WRAS approved press button bottle filling tap, on/off operation
- Two 32mm waste fittings with flexible waste pipes joined with a T piece to leave a single outlet

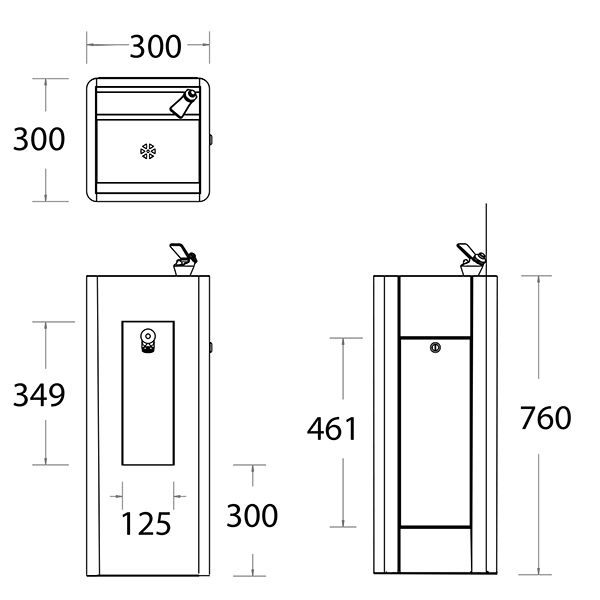

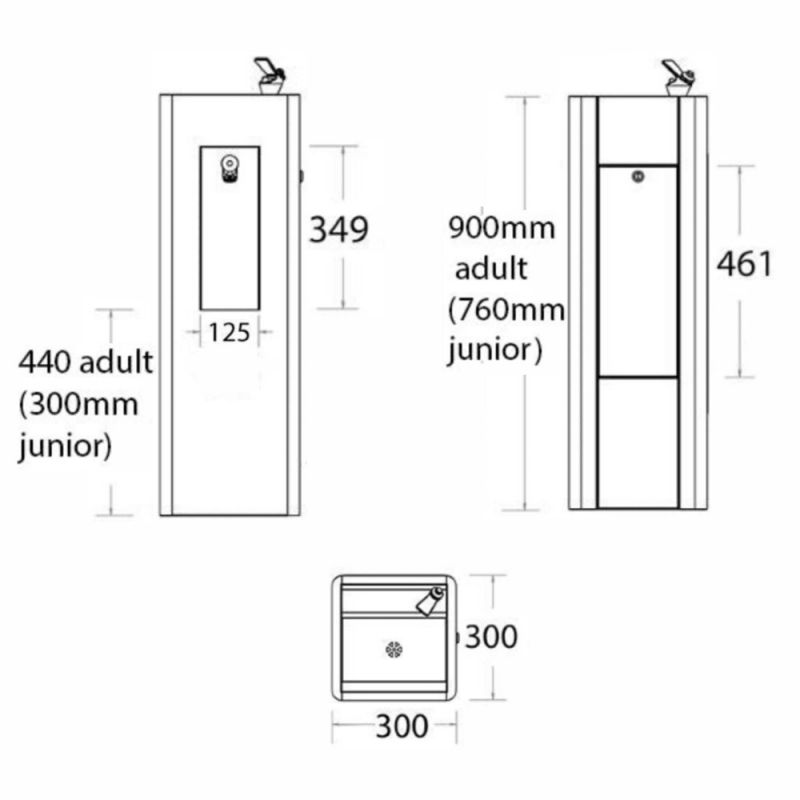

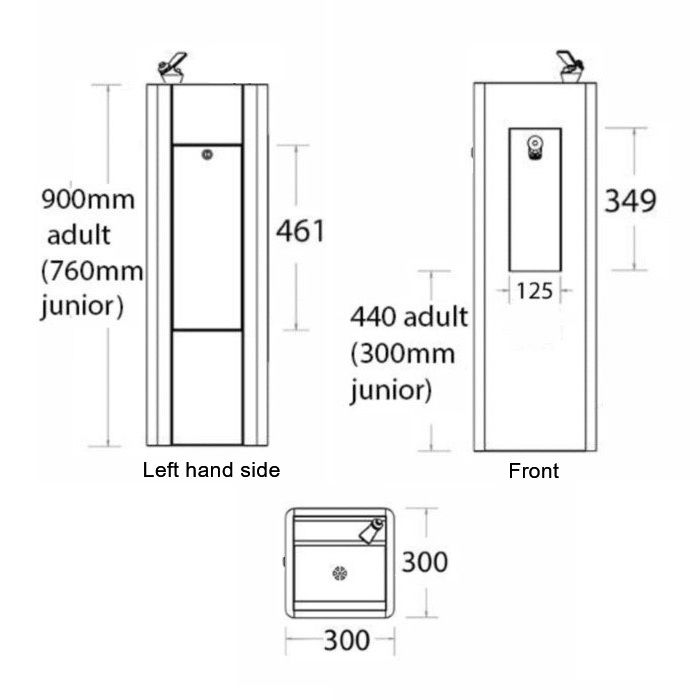

Dimensions
- Height: 760mm
- Width: 300mm
- Depth: 300mm
- Bottom of tap to drip tray height: 290mm

Delivery
- From stock, usually 1 to 3 working days

Optional Extras
- TVS364116 - Y strainer double check valve
- OEMAX10 - 10 inch inline water filter
- SA-KEYAL - Keyed alike lock & keys
