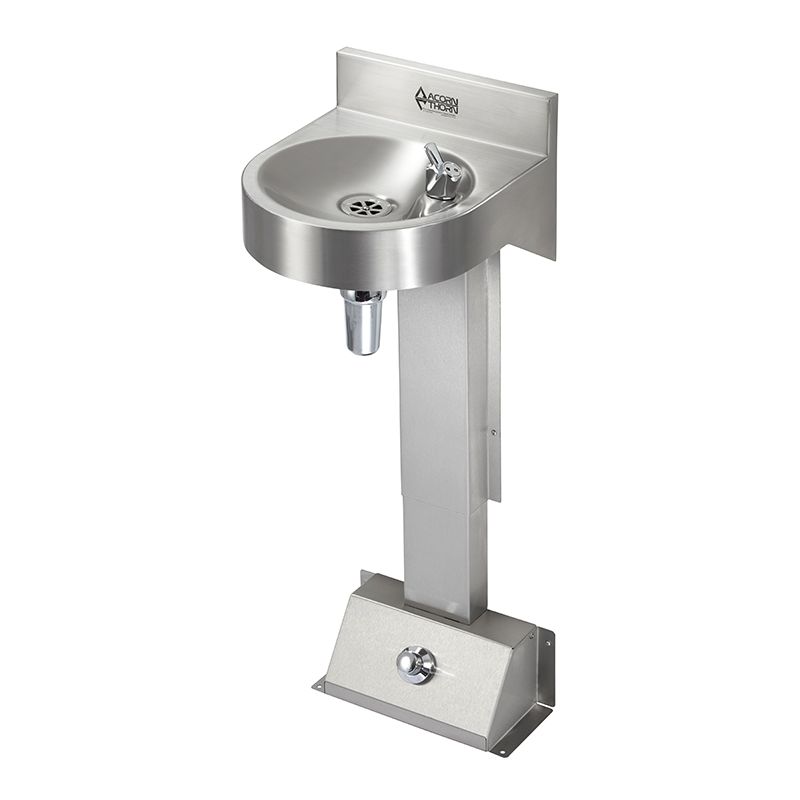

Foot Operated Drinking Fountain

Description

- Model DF461-FOP is our foot operated drinking fountain
- Wall mounted
- Hands free operation helps prevent the spread of germs and viruses
- Grade 304 stainless steel, 1.6mm thick providing greater vandal resistance and durability
- Bubbler valve is situated on a raised platform to make sure the tap connection is above the spill over level of the bowl
- Integral rear upstand to protect the wall
- WRAS approved water fittings
- Floor mounted foot operated valve and no touch chrome plated drinking water outlet
- Rounded front for safety
- Easy to install
- To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.

Includes

- WRAS approved drinking water bubbler outlet
- WRAS approved foot valve
- WRAS approved water fittings and pipework
- Stainless steel telescopic pipework shroud
- Concealed wall mounting bracket
- 32mm flush grated waste fitting

Delivery

- In stock 1-2 working days

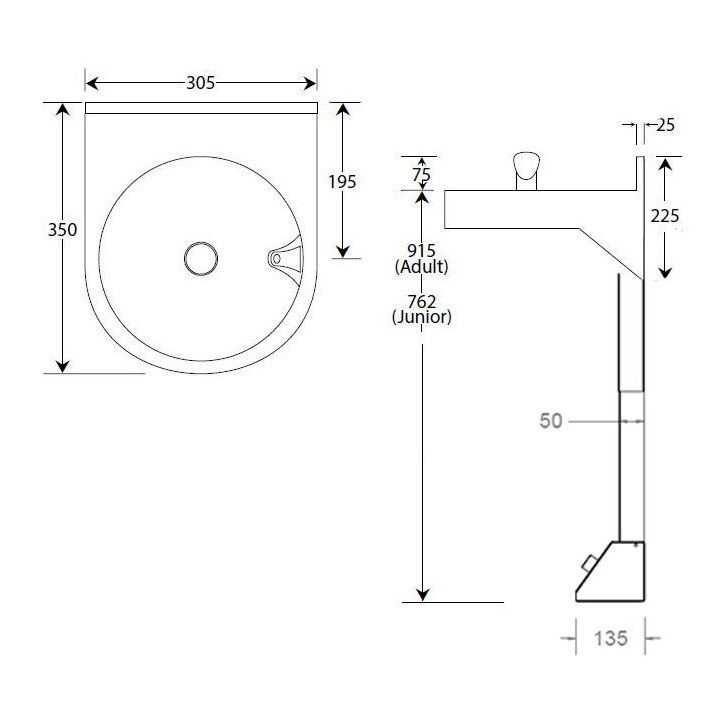

Dimensions

- Height: 225mm
- Width: 305mm
- Depth: 350mm
- Upstand height: 75mm
- Upstand thickness: 25mm
- Telescopic shroud: 500mm to 950mm

Recommended mounting heights:

- Adult: 915mm
- Junior: 762mm

Where can this be installed?

- Can be installed outside if drained down in the colder weathers to prevent damage to the valve and bubbler
- Schools, colleges, universities, gyms, factories, offices

Optional Extras

- SMALL-PLASTIC-BOTTLETRAP – 1.25” plastic bottle trap
- SMALL-CHROME-BOTTLETRAP – 1.25” chrome plated brass bottle trap
- TVS364116 - Y strainer double check valve
