Post Bottle Filler

Description

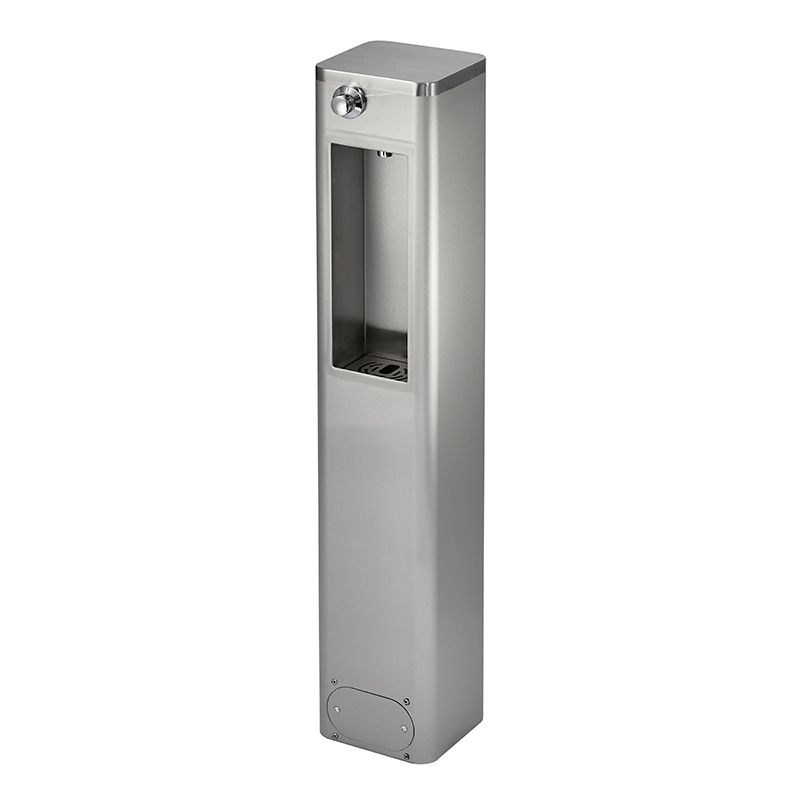

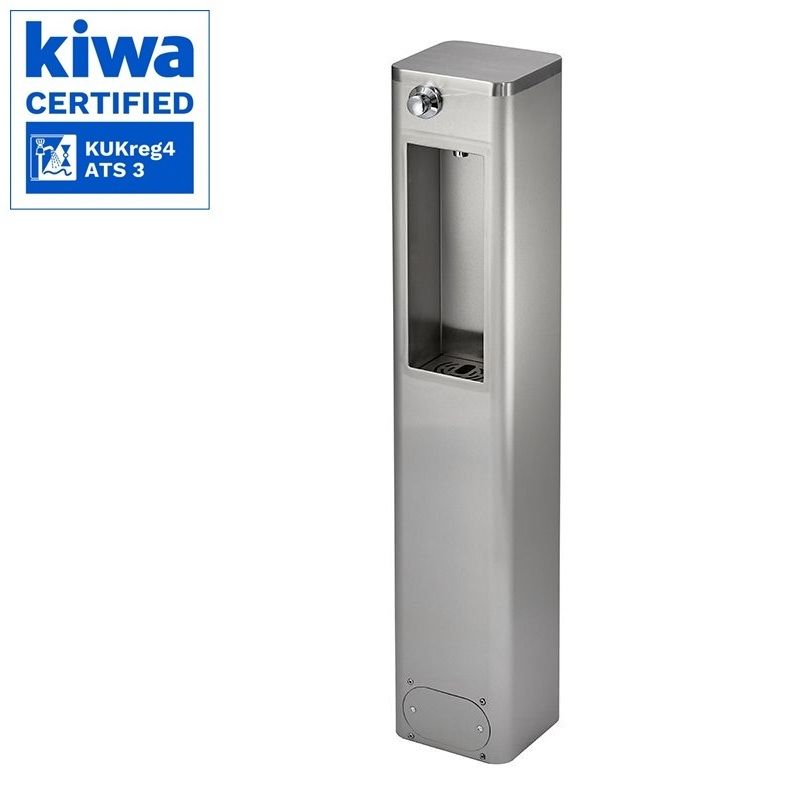

- Model BF906 is our stainless steel free-standing post bottle filler
- Unique design, developed in response to customer demand for a space saving, hygienic bottle filler
- Free-standing pedestal design as standard
- Can be easily converted to floor and wall mounted design by removing the back panel
- Push button operation dispenses water when pressed and shuts off instantly when released to prevent water waste
- Manufactured from grade 304 stainless steel
- Rounded corners for safety
- Floor and wall mounting points
- Supplied fully assembled for easy installation
- Lockable side door for access to fixing points and plumbing connections

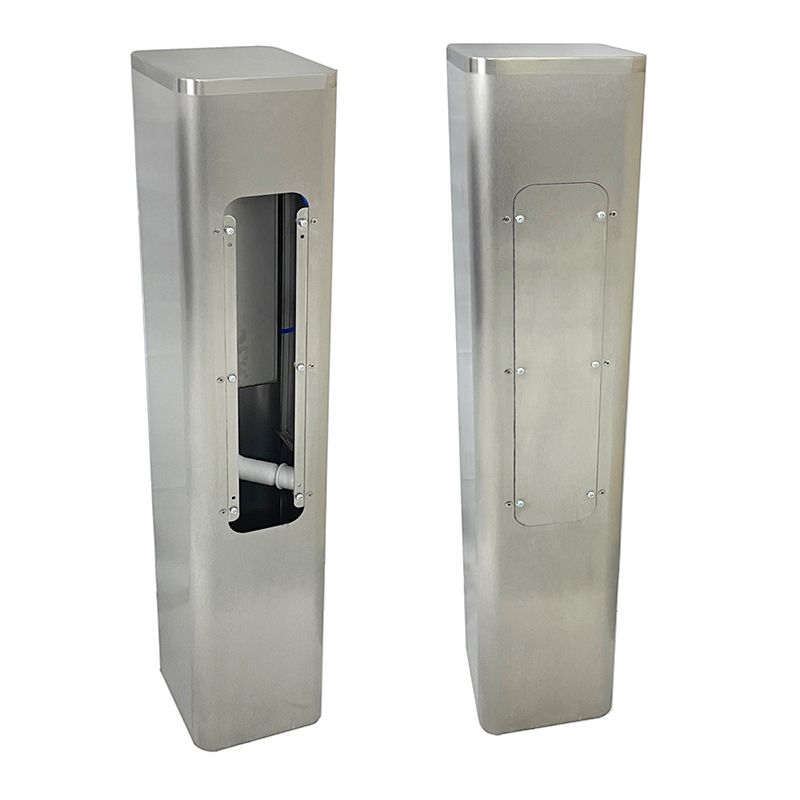

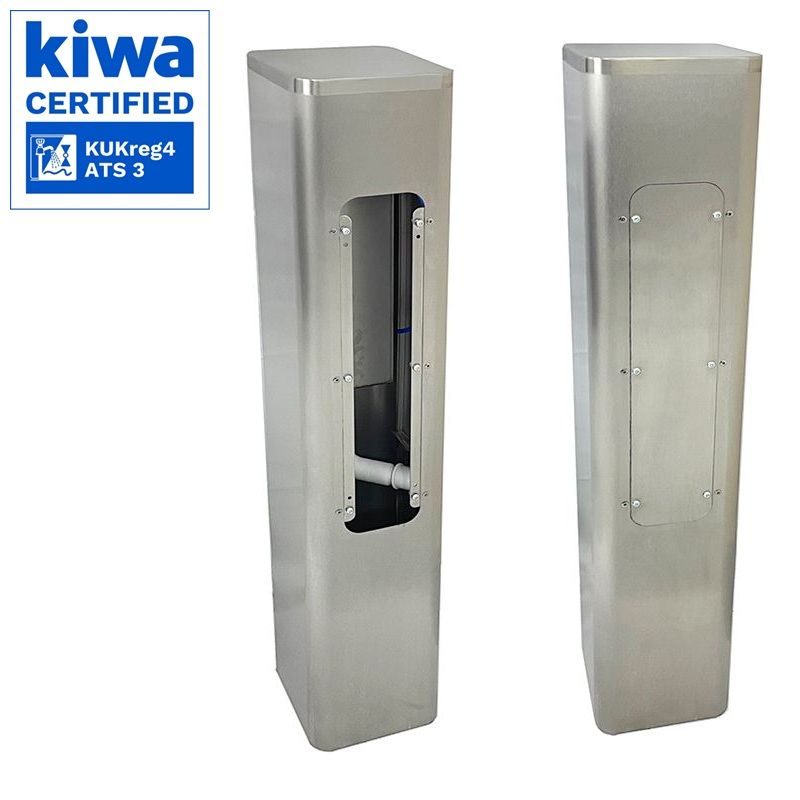

- Removable rear panel with large opening to facilitate water supply pipes and waste connections if fitted up against a wall
- 36mm outlet pipe, 6mm inlet pipe
- Suitable for outdoor use providing the water is isolated and drained down during adverse weather conditions (freezing temperatures)

Includes
- WRAS approved press button water valve
- WRAS approved water path fittings
- 32mm flush grated waste fitting, flexible waste pipe, laminar flow outlet and internal pipework

Delivery
- From stock, usually 1 to 3 working days

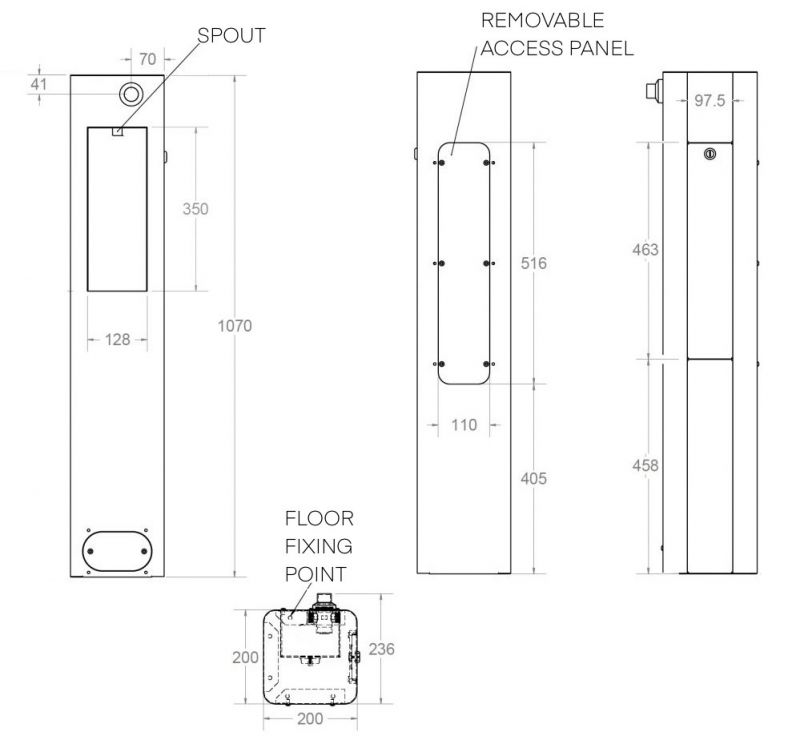

Dimensions
- Height: 1070mm
- Width: 200mm
- Front to back: 200mm

Optional extras

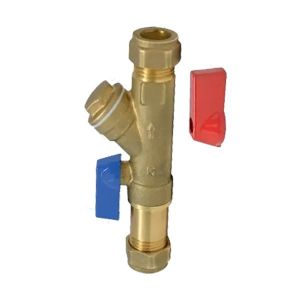

- TVS364116 - Y strainer double check valve
