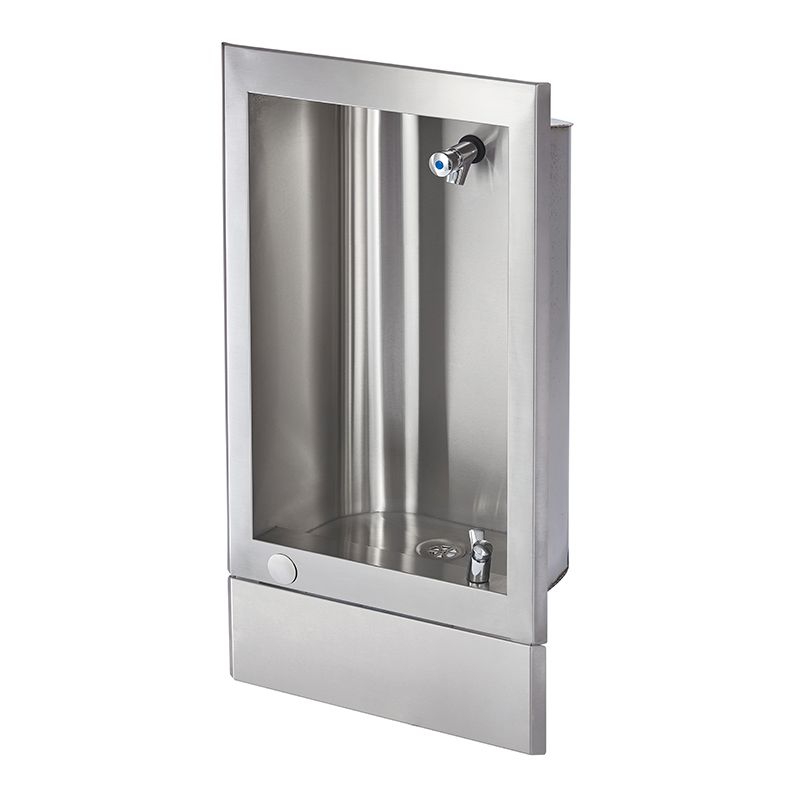

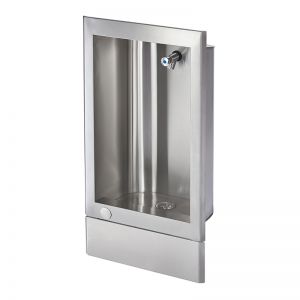

Recessed Bottle Filler With Drinking Fountain

Description
- Model DFBF470 is our wall recessed stainless steel drinking fountain with bottle filler
- Manufactured from grade 304 stainless steel with a satin polished finish
- The recessed design offers a space saving alternative to our wall mounted combination fountains
- Fits into the wall and secured by concealed fixing brackets
- Can be mounted at any height
- Ideal for use in gyms, schools, public areas and leisure centres
- 15mm water connection
- To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.

Includes
- WRAS approved push button bottle filling tap
- WRAS approved push button drinking water tap
- 32mm flush grated waste fitting

Delivery
- From stock, usually 1 to 3 working days

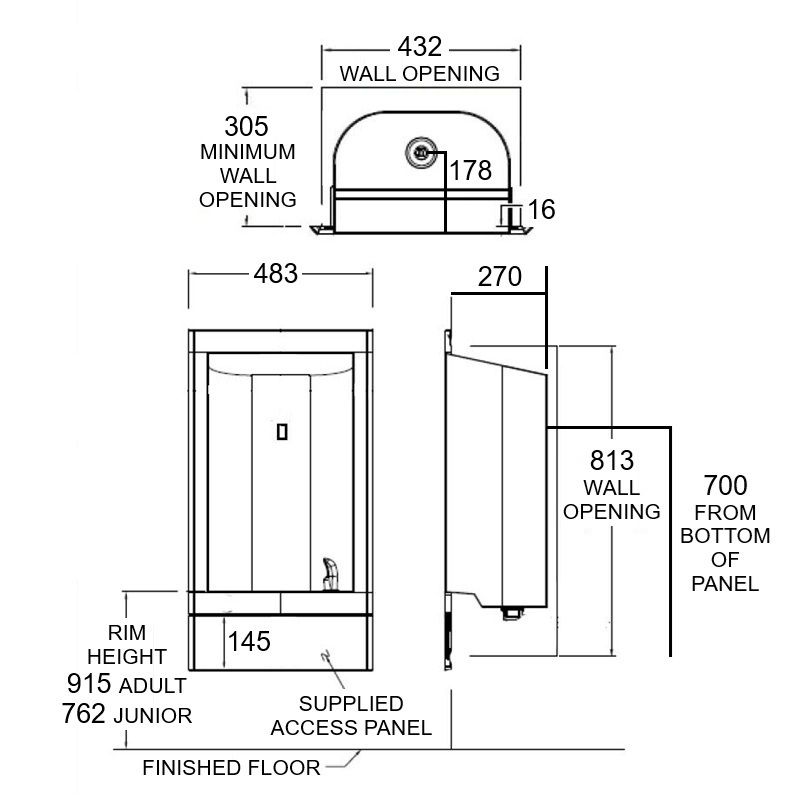

Overall Dimensions
- Height: 890mm
- Width: 483mm
- Front to back: 270mm

Recess Size
- Height: 813mm
- Width: 432mm
- Front to back: 305mm

Optional Extras
- TVS364116 - Y strainer double check valve
