Wall Mounted Combination Fountain
Wall Mounted Combination Fountain
Product Code: DFBF461-WRAS
No documents uploaded.
Description

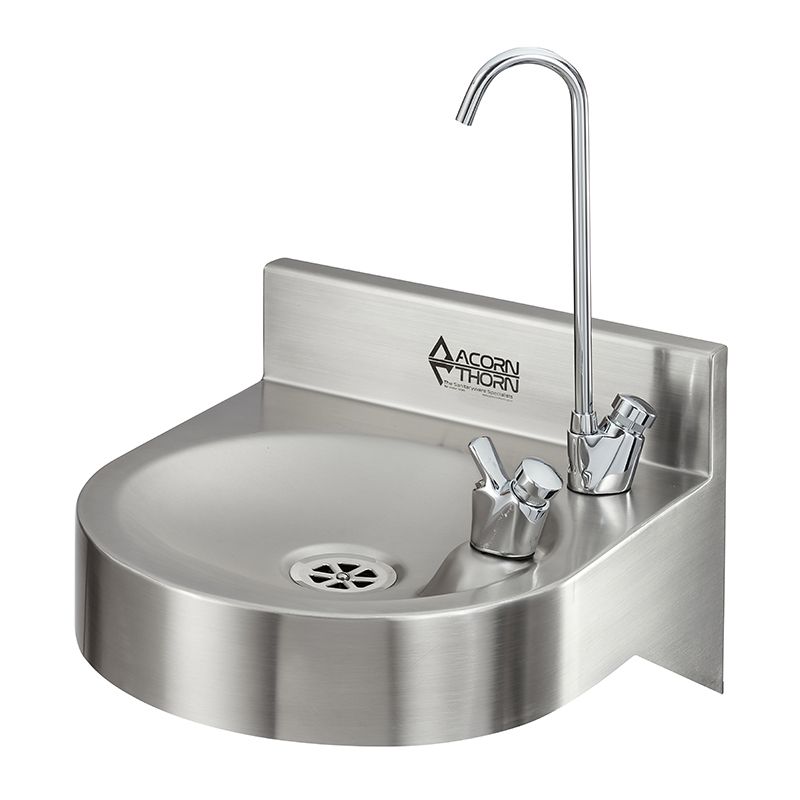

- Model DFBF461-WRAS is our wall mounted drinking fountain with bottle filler
- Supplied with WRAS approved drinking water bubbler tap and swan neck bottle filling spout
- Grade 304 stainless steel, 1.6mm thick providing greater vandal resistance and durability
- Bubbler tap and swan neck bottle filling spout are situated on a raised platform to make sure they connect above the spill over level of the bowl
- Integral rear upstand to protect the wall
- Can be mounted at any height
- Rounded front for safety
- Easy installation
- Ideal to be installed in educational establishments
Includes
- Concealed wall mounting bracket
- 32mm flush grated waste fitting
- WRAS approved bubbler tap
- WRAS approved bubbler tap
Delivery
- In stock 1-2 working days

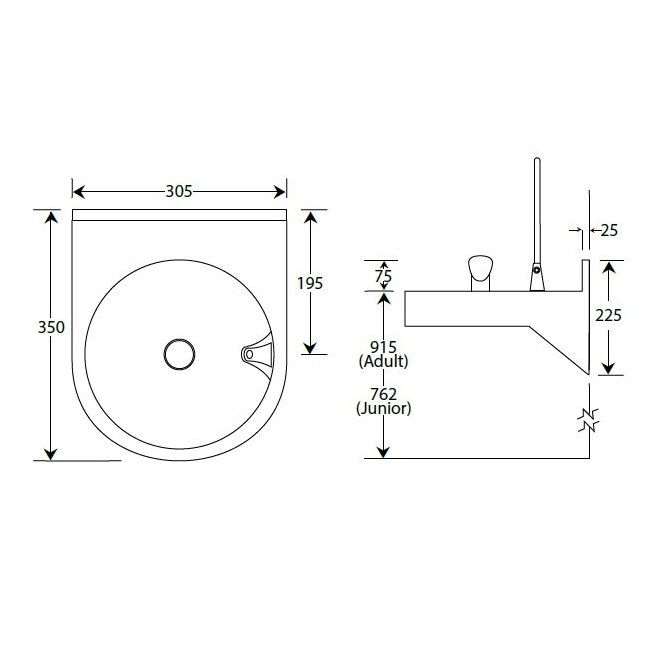

Dimensions
- Height: 225mm
- Width: 305mm
- Depth: 350mm
- Upstand height: 75mm
- Upstand thickness: 25mm
Recommended mounting heights:
- Adult: 915mm
- Junior: 762mm
Where can this be installed?
- Can be installed outside if drained down in the colder weathers to prevent damage to the bubbler and bottle filling spout
- Schools, colleges, universities, gyms, factories, offices
Optional extras
- SMALL-PLASTIC-BOTTLETRAP – 1.25” plastic bottle trap
- SMALL-CHROME-BOTTLETRAP – 1.25” chrome plated brass bottle trap
- TVS364116 - Y strainer double check valve
FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
