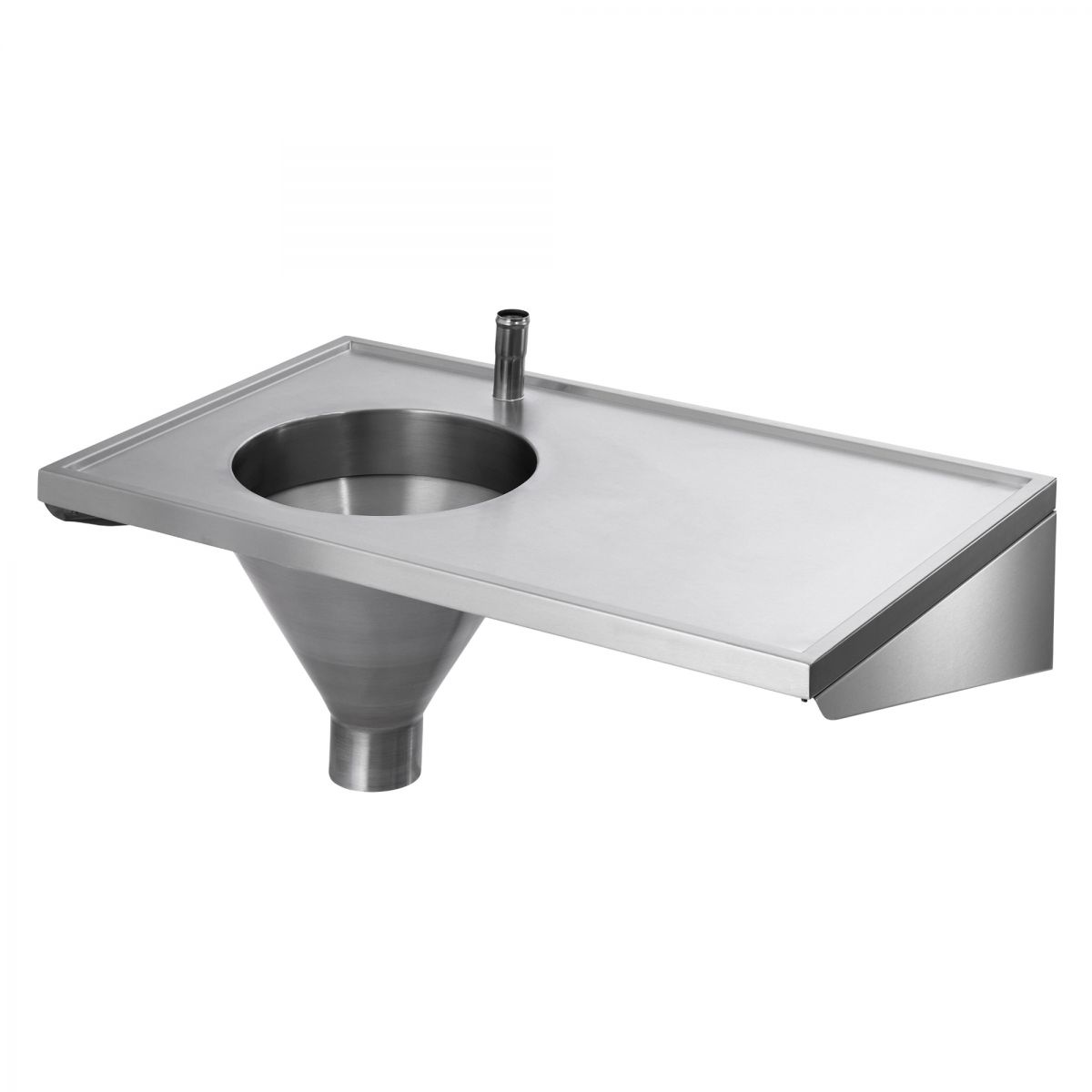

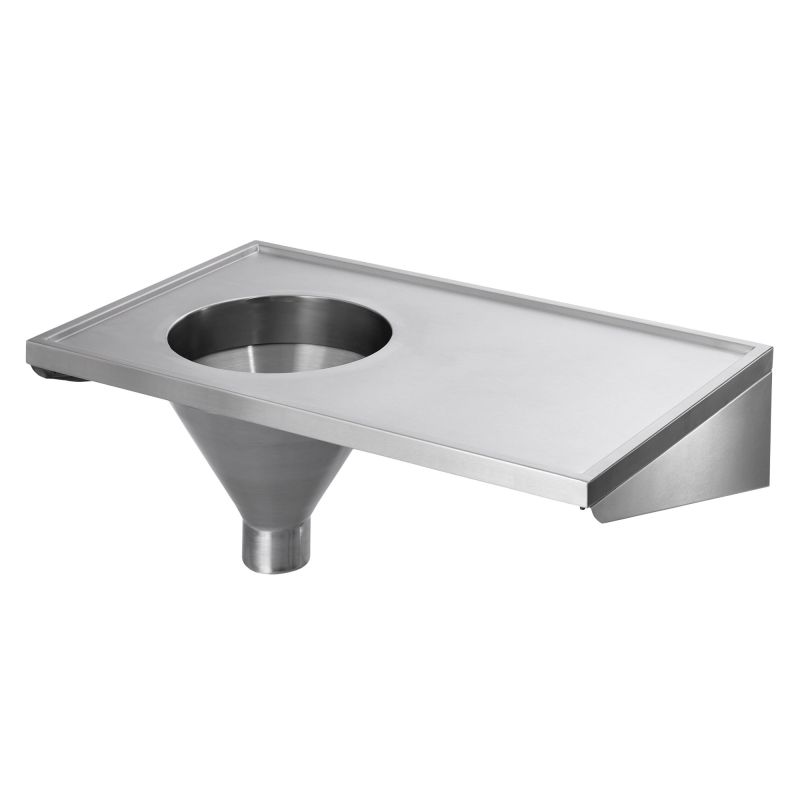

Disposal Unit with Left Hand Sluice Sink and Plain Top

Description
- Wall mounted disposal unit with left hand sluice sink and plain top
- Conforms to HBN 00-10 Part C: Sanitaryware Assemblies which replaces the old HTM64 specification
- Hospital disposal unit model DU H
- Manufactured from grade 304 stainless steel, 1.2mm thick
- Left hand slop hopper only
- Choice of flush pipe connection - top entry for use with exposed cistern or back entry for use with concealed cistern
- Top entry version includes a 520mm stainless steel flush pipe
- Back entry version does not include a flush pipe
- 110mm plain spigot outlet with the option of white polypropylene P or S trap
- The sluice sink is manufactured with an anti drip edge and turn down to all four sides
- Full flushing rim to ensure efficient and hygienic flushing
- Supplied with stainless steel wall brackets
- Predominantly used in hospitals and care homes

Drilling Options
- No tap hole
- Single left or right hand tap hole for lever mixer swivel tap (product code TVS6743LQMMT)
- Fixing holes for stainless steel hinged grid (product code MHP-GRID)
- Please note if you have a tap hole you cannot have a grid. It is one or the other.

Delivery
- From stock, usually 1 to 3 working days

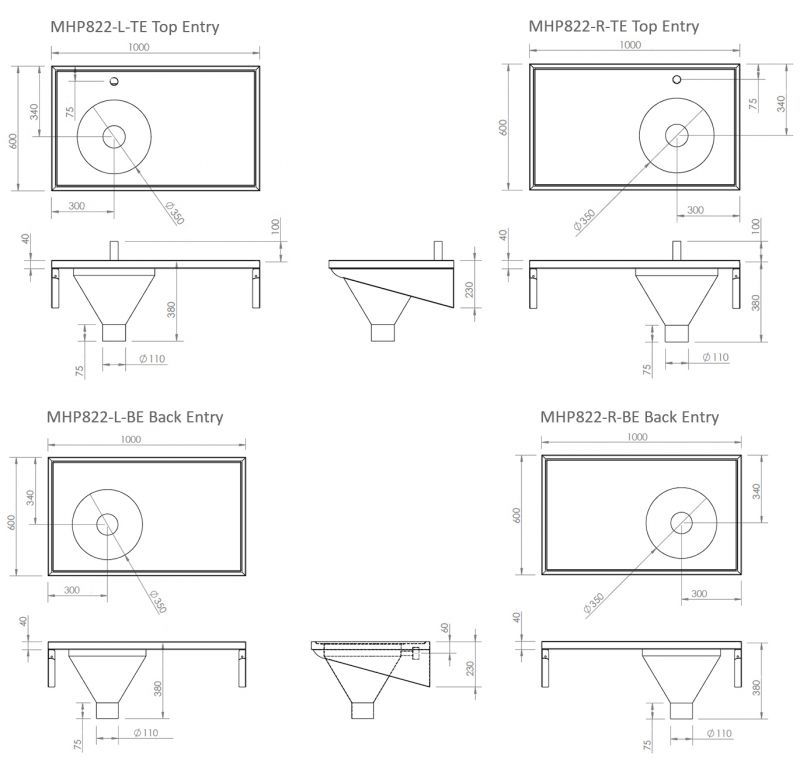

Dimensions
- Height: 400mm
- Overall length: 1000mm
- Front to back: 600mm

Optional Extras
- MHP-FL - front support legs

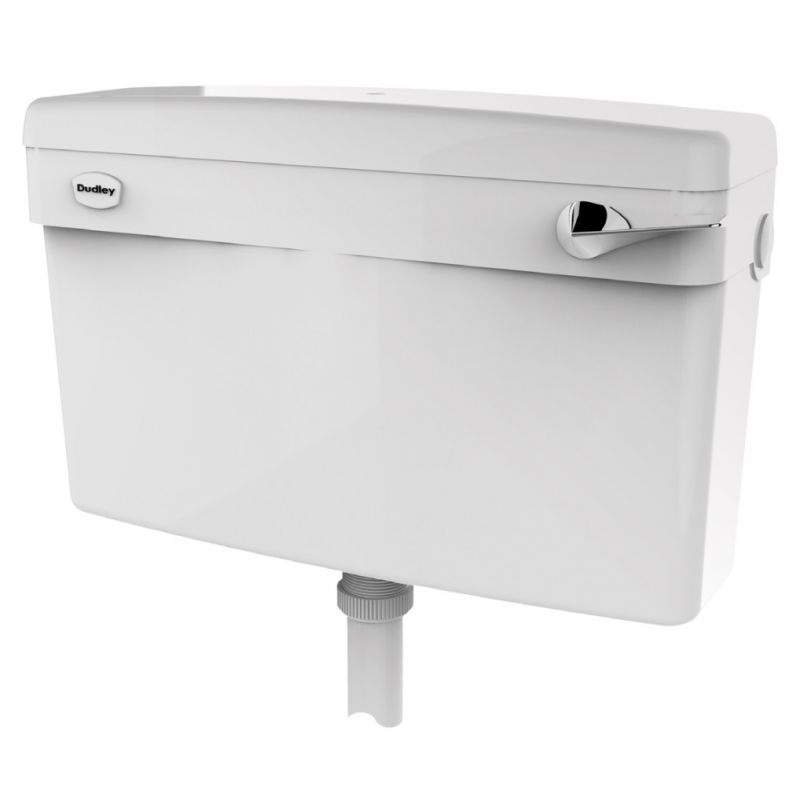

- MHP-CISTERN-PLASTIC - plastic exposed cistern

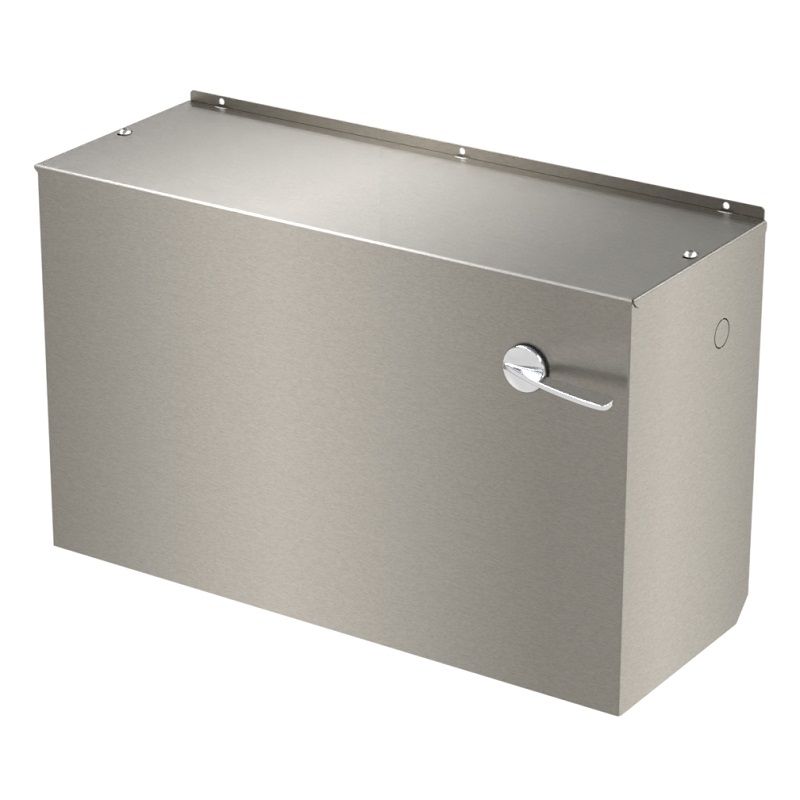

- MHP-CISTERN-STAINLESS - stainless steel exposed cistern

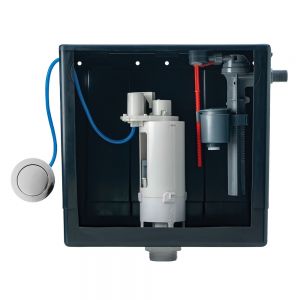

- WC142-LL-WL - manual plastic cistern with chrome plated lever
- POLYPTRAP - 4" polypropylene P trap
- POLYSTRAP - 4" polypropylene S trap
- MHP-STRAINER - stainless steel sluice sink outlet strainer
