Sluice Sink, Back Entry

Description

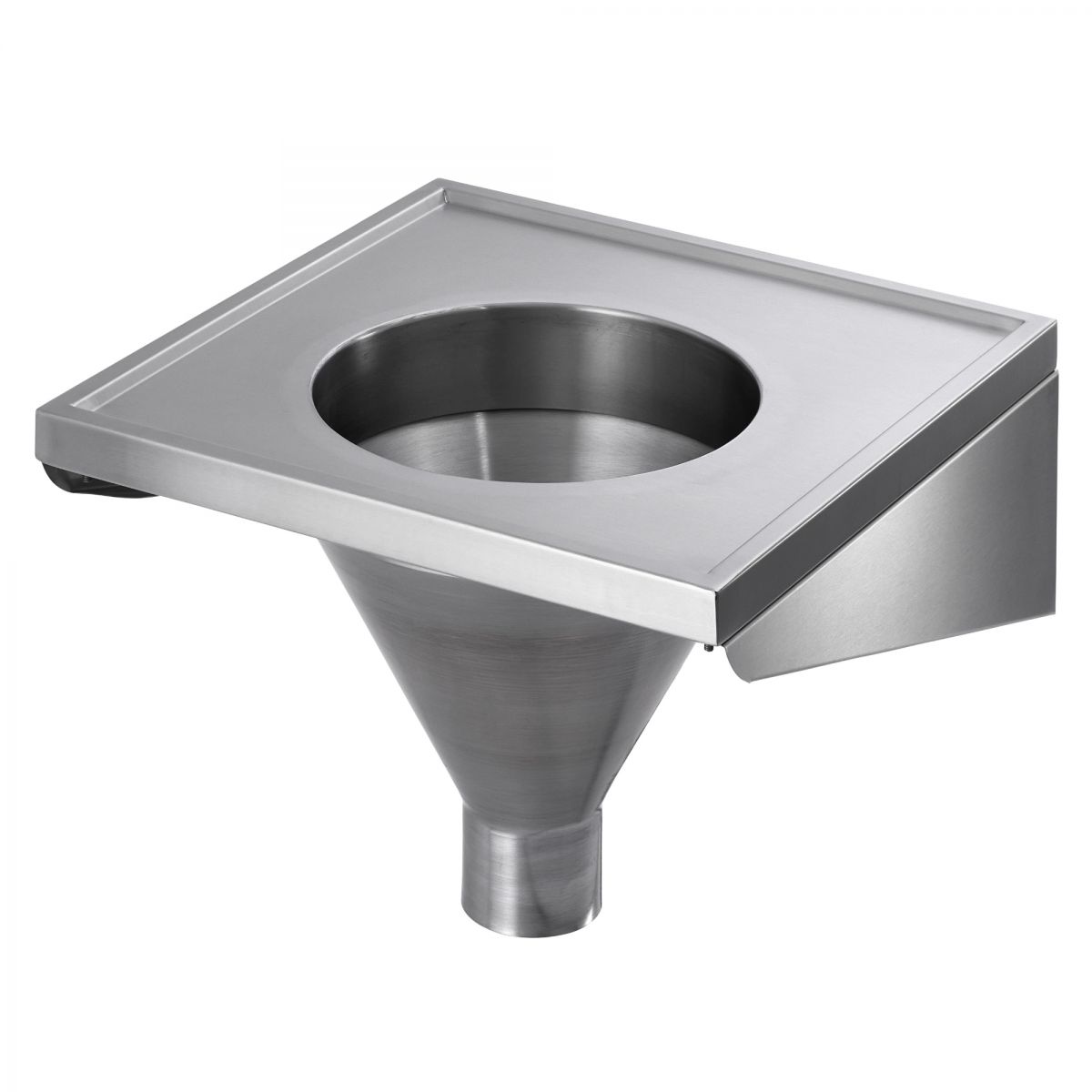

- Model MHP824-BE is our stainless steel wall mounted sluice sink (slop hopper)
- Conforms to HBN 00-10 Part C: Sanitaryware Assemblies which replaces the old HTM64 specification
- Hospital disposal unit model DU
- Manufactured from grade 304 stainless steel with a satin polished finish
- Back entry flush pipe connection for use with concealed cistern (please note the flush pipe is not supplied with the sluice sink)
- 110mm plain spigot outlet with the option of white polypropylene P or S trap
- The sluice sink is manufactured with an anti drip edge and turn down to all four sides
- Full flushing rim to ensure efficient and hygienic flushing
- All sluice sinks are supplied with wall mounting brackets with the option of front support legs
- The slop hoppers are predominantly used in hospitals and care homes

Drilling Options
- No tap hole
- Single left or right hand tap hole for lever mixer swivel tap (product code TVS6743LQMMT)
- Fixing holes for stainless steel hinged grid (product code MHP-GRID)
- Please note if you have a tap hole you cannot have a grid. It is one or the other.

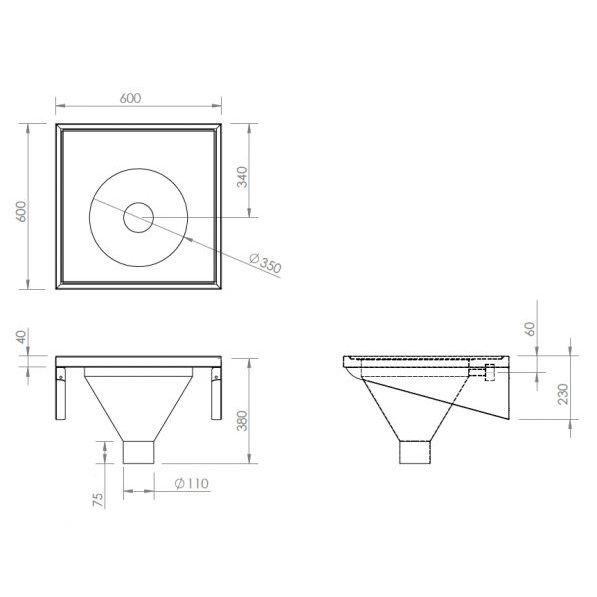

Dimensions
- Height: 400mm
- Overall length: 600mm
- Front to back: 600mm

Delivery
- From stock, usually 1 to 3 working days

Optional Extras
- MHP-FL - front support legs
- WC142-LL-WL - plastic concealed cistern and downpipe, lever operated
- POLYPTRAP - 4" polypropylene P trap
- POLYSTRAP - 4" polypropylene S trap
- MHP-STRAINER - stainless steel sluice sink outlet strainer
