Knee Operated Timed Flow Valve

Knee Operated Timed Flow Valve

Product Code: 6832TKV

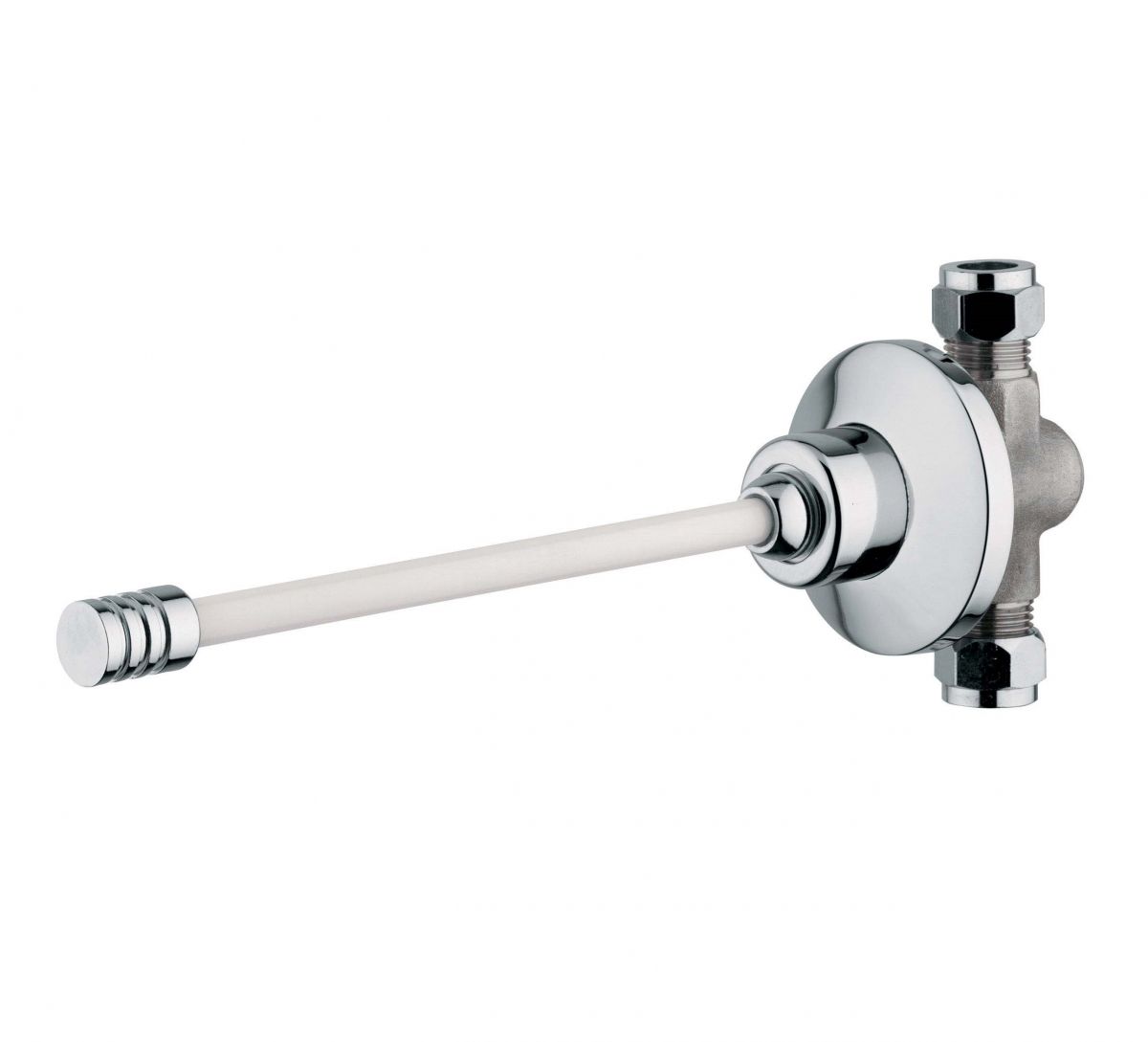

The model 6832 knee operated timed flow valve is self closing providing savings in both water usage and energy in all commercial and industrial environments. Ideal for use where a high level of hygiene is required, the valve is also suitable for the wheelchair bound and those with restricted hand movement. The valve is designed for concealed wall mounting and the timed control gives approximately 15 seconds flow from each activation, by the lever articulating in any direction. Manufactured from brass with a chrome plated finish, the valve is suitable for connecting to a temperature controlled warm water supply and is supplied with inlet and outlet compression fittings to suit 15 mm diameter pipe. The valve should be used in conjunction with a wall or basin mounted spout. The minimum operating pressure is 0.5 bar and the maximum operating pressure is 5.0 bar with a maximum inlet temperature of 65oC  The timed flow at 1 bar:is 15  ± 3 seconds

Special Features

KNEE OPERATED
HYGIENIC “NO TOUCH”
WATER AND ENERGY SAVING
CONCEALED FITTING

Dimensions

Options

Downloads

Thermostatic Mixing Valve  image

Thermostatic Mixing Valve

Ref No: 7001TMV3-15

TMV3 Thermostatic Mixing Valve 15mm, WRAS Approved

More details

Deck Mounted Basin Spout image

Deck Mounted Basin Spout

Ref No: 6912DSP

For use with knee operated timed flow valves.

More details
