Thermostatic TMV3 Sequential Lever Tap
Thermostatic TMV3 Sequential Lever Tap
Product Code: TVS6746
Description

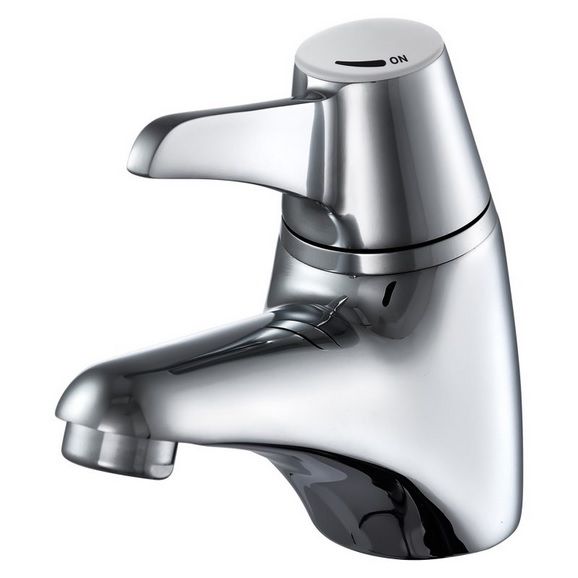

- Model TVS6746 is a deck mounted thermostatic sequential lever mono basin mixer
- Single lever to control both temperature and flow
- Sequential flow and control for ease of use
- Prevents scalding by accurately controlling the water temperature
- Inlet 1/2" BSP
- Supplied with flexi tails
- Supplied as single tap with hot and cold water supply
- Chrome plated brass body and head
- WRAS approved
- Ultimate thermostatic performance to TMV3 Buildcert standards
- 1 year manufacturers warranty
- 35mm tap hole required
Water Pressure
- Min inlet pressure: 0.2 bar
- Max inlet pressure: 5 bar
Flow Rates
- 0.3 bar - flow rate 4.6 l/min
- 0.5 bar - flow rate 6.2 l/min
- 1.0 bar - flow rate 9.4 l/min
- 2.0 bar - flow rate 13.7 l/min
- 3.0 bar - flow rate 16.8 l/min
- 4.0 bar - flow rate 19.6 l/min
- 5.0 bar - flow rate 22.2 l/min
Delivery
- From stock, usually 1 to 2 working days
FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
Related Products

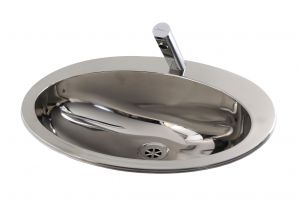

Inset Oval Wash Bowl
