Shrouded Back to Wall WC Pan
Shrouded Back to Wall WC Pan
Product Code: WC109
No documents uploaded.
Description

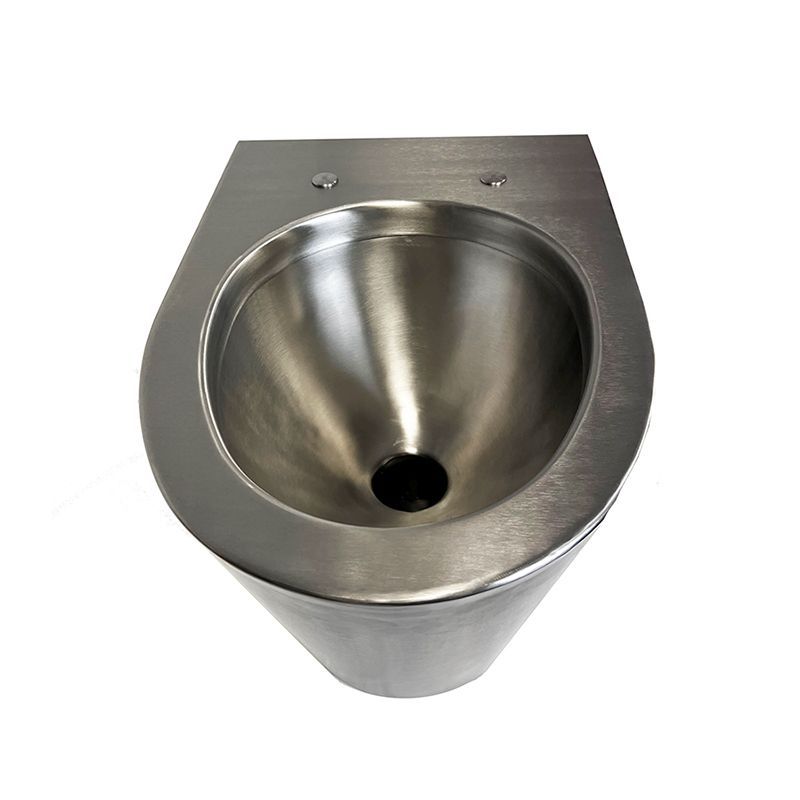

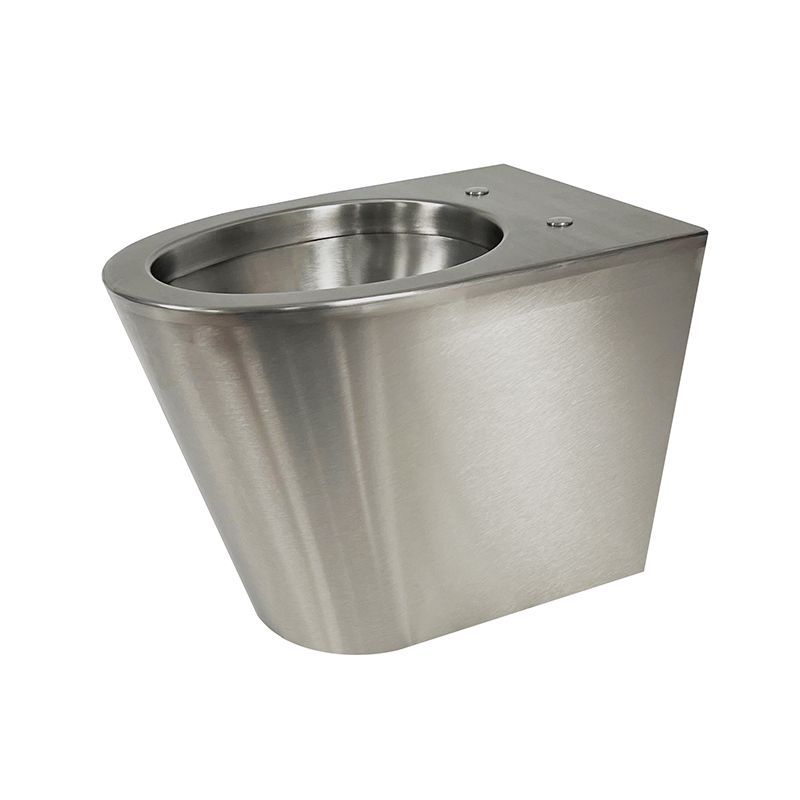

- Model WC109 is a stainless steel shrouded back to wall toilet
- Manufactured from 1.6mm thick stainless steel for vandal resistance
- Horizontal outlet (P trap)

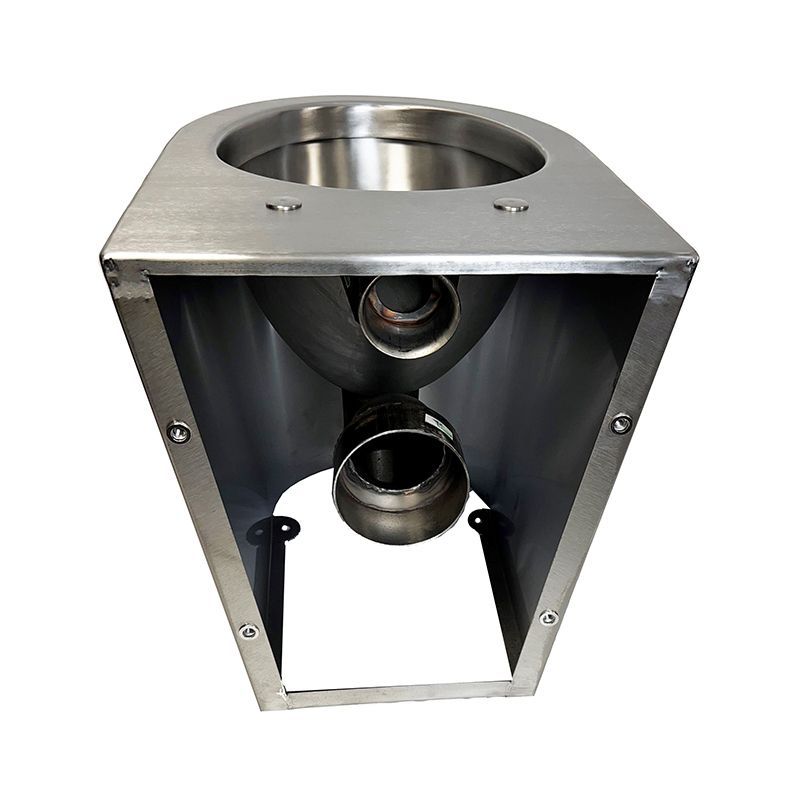

- Duct wall fixing for use with a concealed cistern.
- Horizontal outlet with 100mm diameter
- Security flushing rim
- Drilled for seat holes with cover caps on the holes
- Through wall fixing stud bolts, washers and nuts
Delivery
- From stock, usually 1 to 3 working days

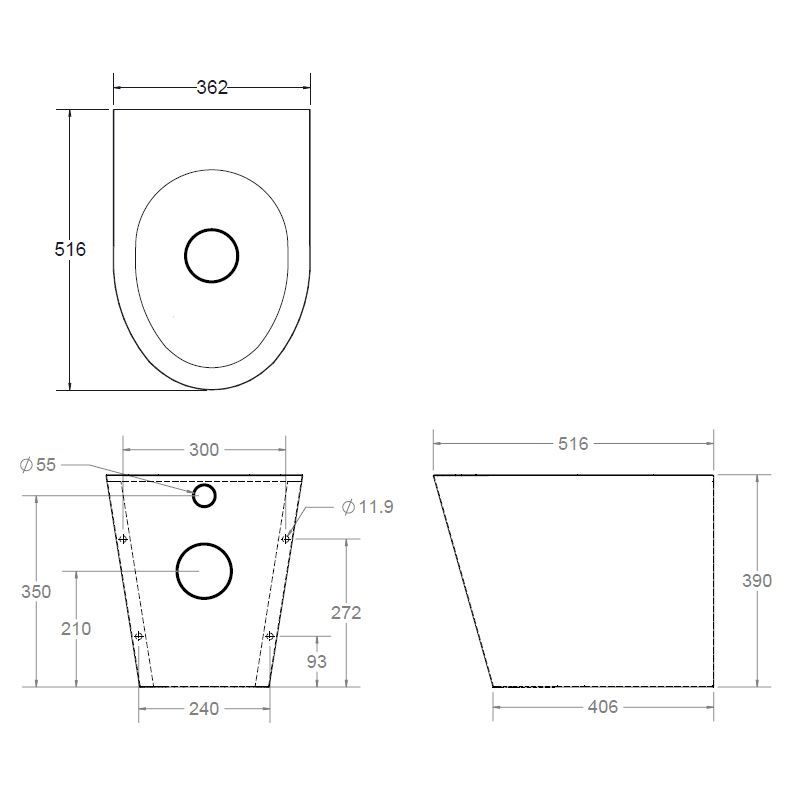

Dimensions
- Height: 390mm
- Width: 362mm
- Projection: 516mm
Optional Extras
WC142-LL-WL - plastic concealed cistern with lever
WC142-LL-AIR-50 - plastic concealed cistern with push button
WCPSC-EURO-BK - black plastic toilet seat & cover
FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
