Wash Trough With Frame
Wash Trough With Frame
Product Code: WE305-FRAME
No documents uploaded.

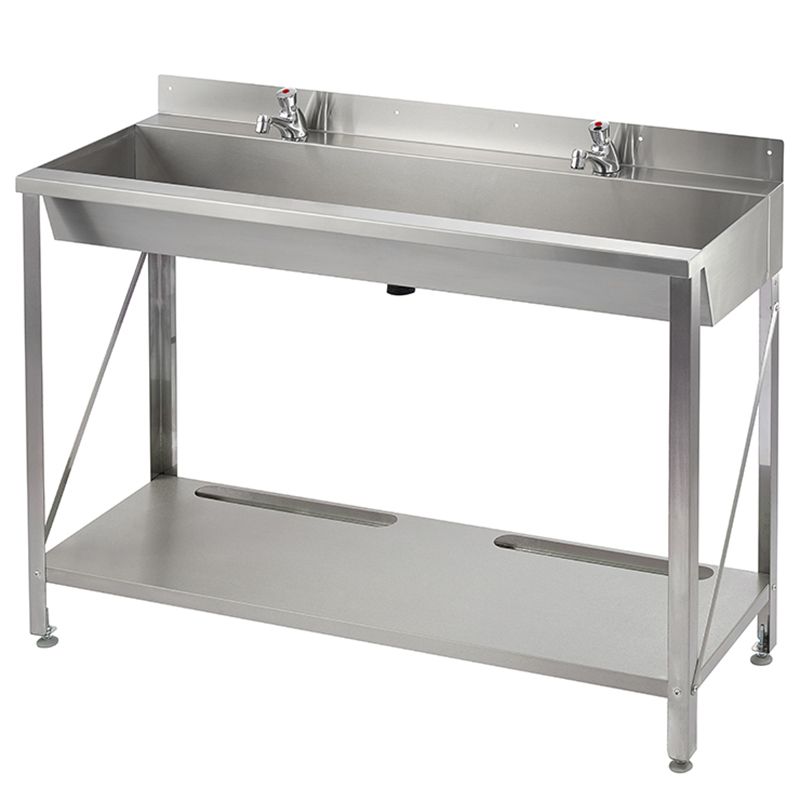

Model WE305-FRAME is a stainless steel wash trough mounted on a stainless steel frame with shelf.
The floor standing wash trough is supplied with a flat pack frame and shelf for assembly on site. The shelf has rear cutouts to allow for water and waste pipes to be routed through the shelf. Three standard sizes are held in stock with tapholes drilled to suit your requirements.
The wash trough is suitable for freestanding use or alternatively can also be fixed to the back wall for extra rigidity.
Dimensions
Height: 150mm
Front to back: 400mm
Lengths: 1500mm | 1800mm | 2400mm
Rear upstand: 75mm
Tap ledge: 70mm
Height from floor: 850mm to wash trough rim
Material and Specifications
Grade 304 stainless steel, 1.2mm thick
Centre 38mm flush grated waste fitting (no plug or overflow)
Integral wall mounting points
Tap holes drilled to customer specification
Flat pack stainless steel legs and shelf
Tap Holes
Single or pairs
22mm or 35mm
Delivery
- Limited stock available, usually 1 to 3 working days
Optional Extras
LARGE-PLASTIC-BOTTLETRAP – 1.5" plastic bottle trap
LARGE-CHROME-BOTTLETRAP – 1.5" chrome plated bottle trap
WE305-TPCVR - Stainless steel trap cover
Taps from our extensive range
