Wall Mounted Bottle Filling Trough

Wall Mounted Bottle Filling Trough

Product Code: BF910

Description

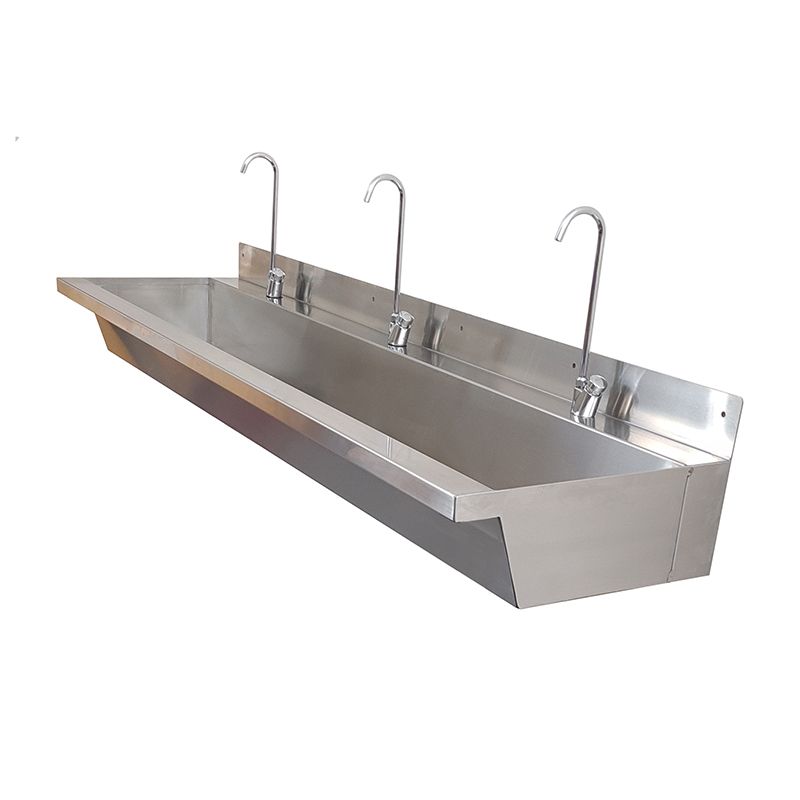

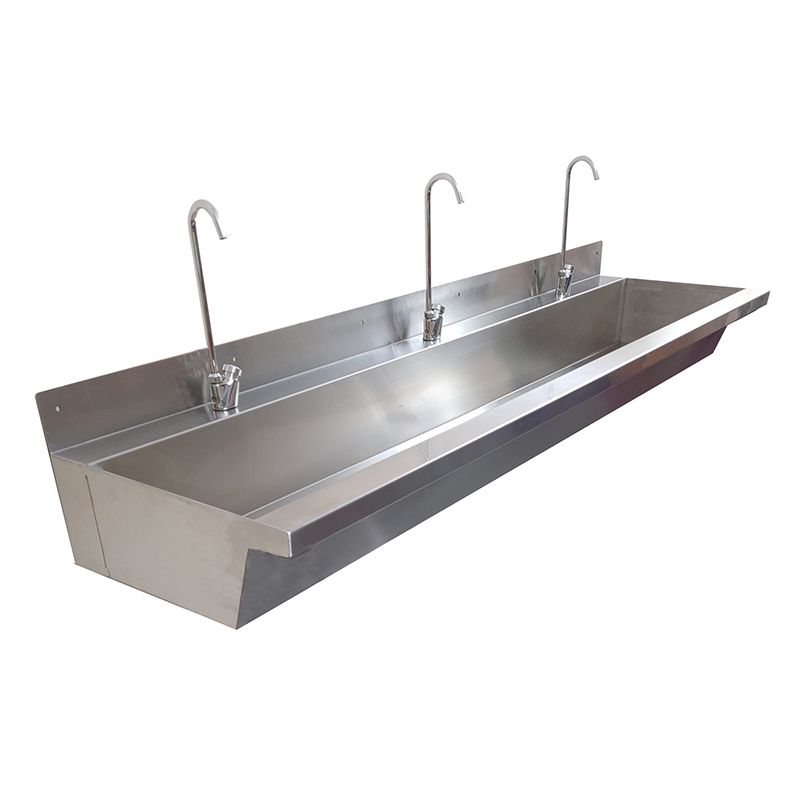

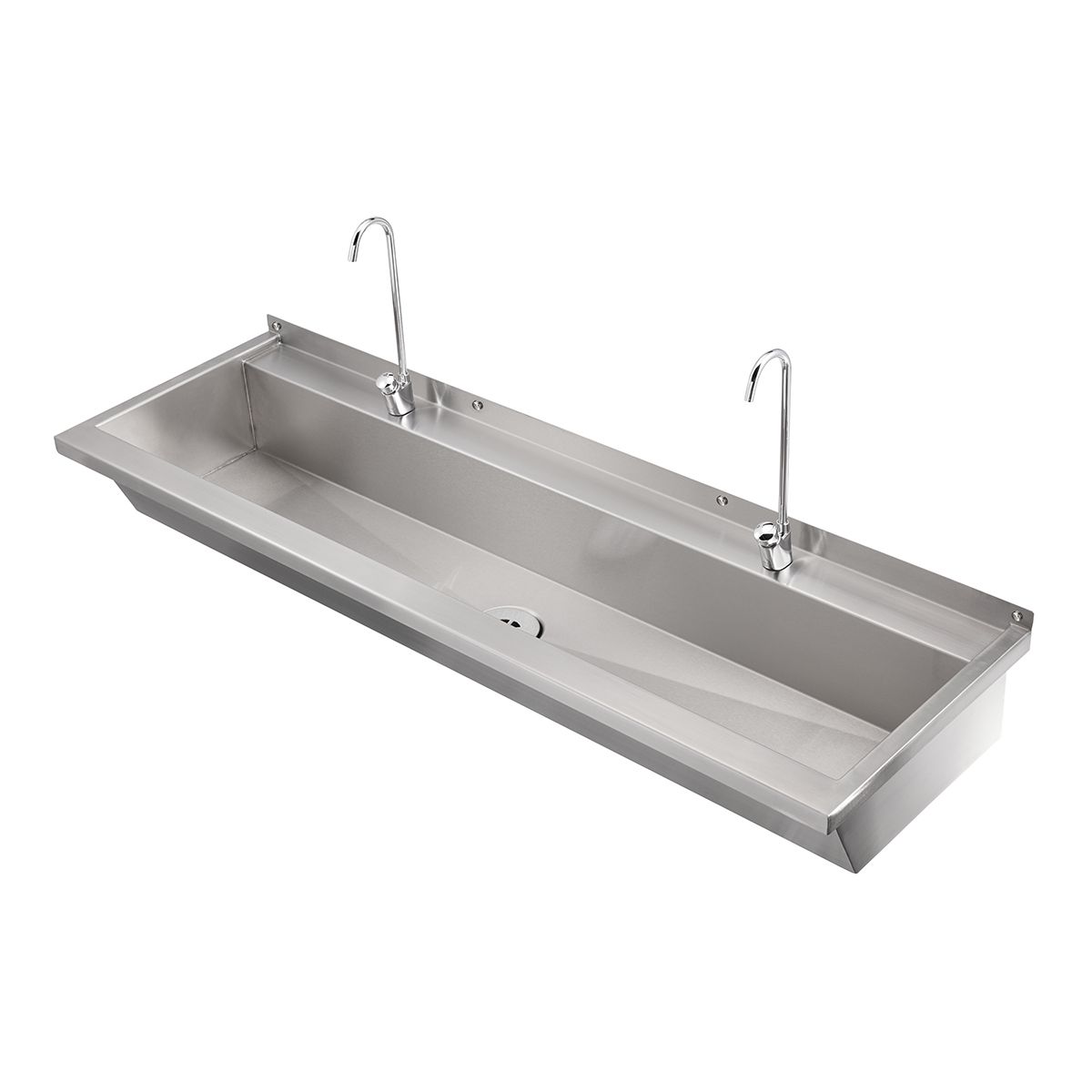

- Model BF910 is a wall mounted bottle filling trough constructed from grade 304 stainless steel, 1.6mm thick
- Cost effective solution for providing multiple bottle filling stations rather than individual bottle filling stations
- For heavy duty use

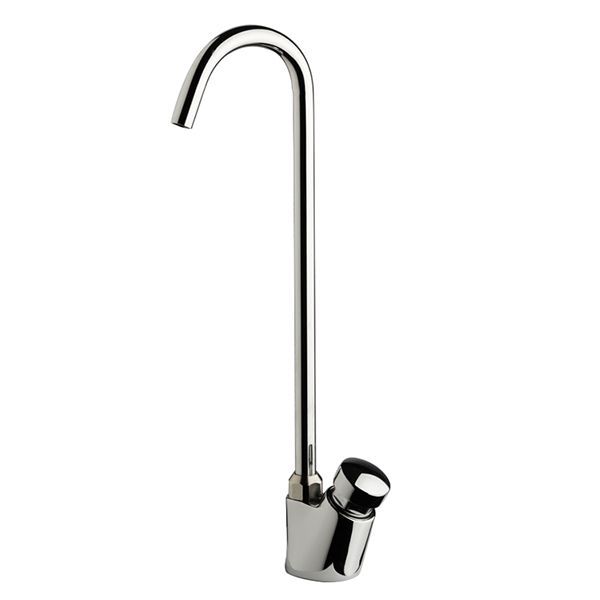

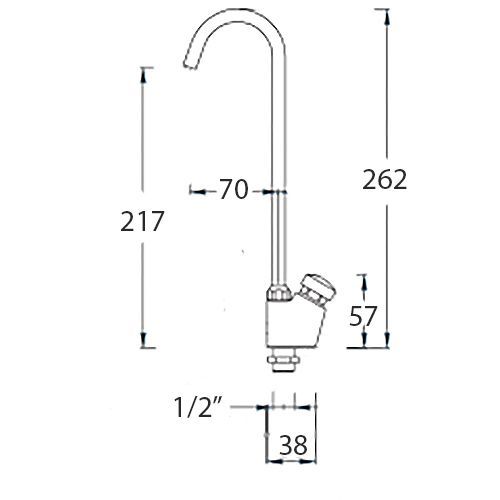

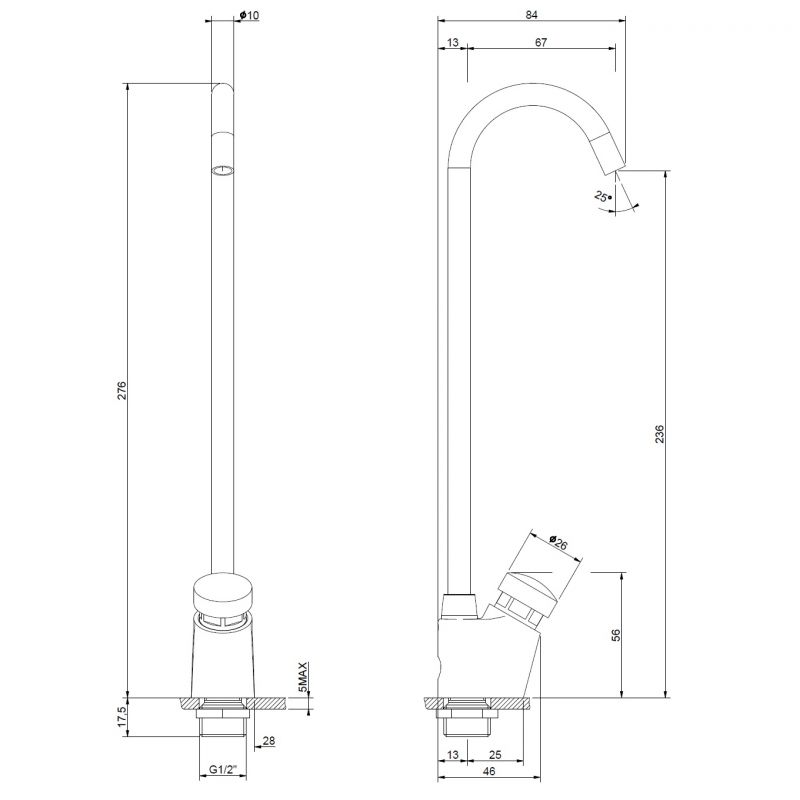

- Available with 2, 3 or 4 bottle filling spouts (BOTTLEFILLER)
- Freestanding model also available (BF910-FRAME)

Includes

- Integral wall mounting points
- Centre 38mm flush grated waste fitting included (no plug or overflow)

Delivery

- Stock item - 1 to 2 working day lead time

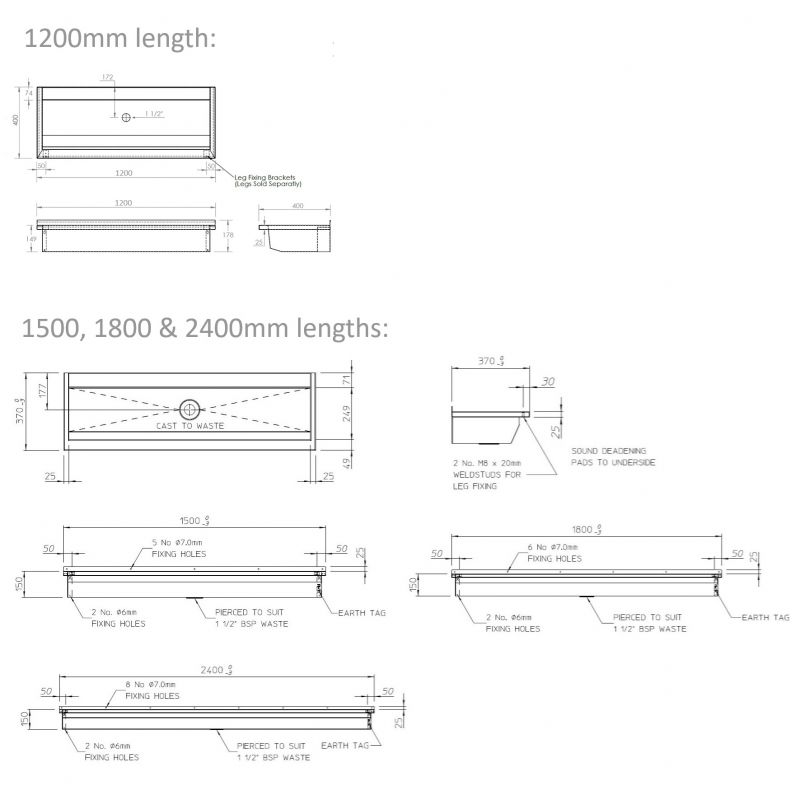

Dimensions

This bottle filling trough can be supplied at different lengths to accommodate 2, 3 or 4 bottle filling spouts

- Lengths available: 1200mm (2 bottle filling spouts) | 1500mm (3 bottle filling spouts) | 1800mm (4 bottle filling spouts) | 2400mm (5 bottle filling spouts)
- Height: 150mm
- Front to back: 400mm
- Rear upstand: 75mm
- Tap Ledge: 70mm

Where can this be installed?

- This bottle filling trough is ideal for locations where multiple users require bottle filling facilities at the same time
- Can be installed inside or outside
- Ideal for schools, colleges, gyms, factories etc
- If being installed in an environment where people may lean or sit on the trough, we recommend purchasing a pair of front support legs (see below) for extra support holding the trough up

Optional Extras

WE305-FL - Stainless steel front support legs (950mm unit height)
WE-NURSERY-LEGS - Stainless steel front support legs (600mm unit height)
LARGE-PLASTIC-BOTTLETRAP – 1.5" plastic bottle trap
LARGE-CHROME-BOTTLETRAP – 1.5" chrome plated bottle trap
POWDER COATED FINISH AVAILABLE UPON REQUEST

FOR ANY ENQUIRIES OR QUOTES PLEASE CALL US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
