New Style Bottle Filler
New Style Bottle Filler
Product Code: BOTTLEFILLER
No documents uploaded.

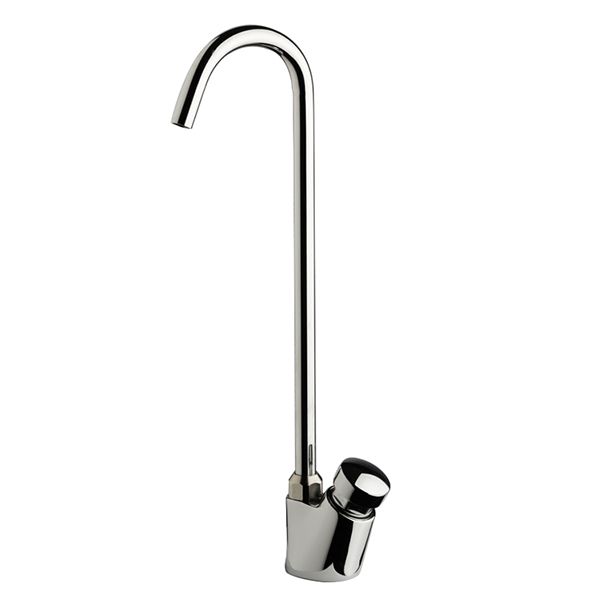

The bottle filler valve (previously known as RUB-BOTTLEFILLER) has a swan neck spout and is supplied as standard with our bottle filling fountains and can be purchased separately for use on other units and as a spare part.
Material and Specification
Chrome plated brass
Press button operation to dispense water
WRAS approved
1/2" connection
Supplied with backnut and rubber washer
Adjustable flow control (requires allen key)
To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.
Delivery
From stock 1 to 2 working days
Optional Extras
TVS364116 - Y strainer double check valve
Please note: we have a number of old style drinking taps out in the field. If you require a new bottle filler or spare part, please email us a picture of your existing product and we can advise which will suit.
